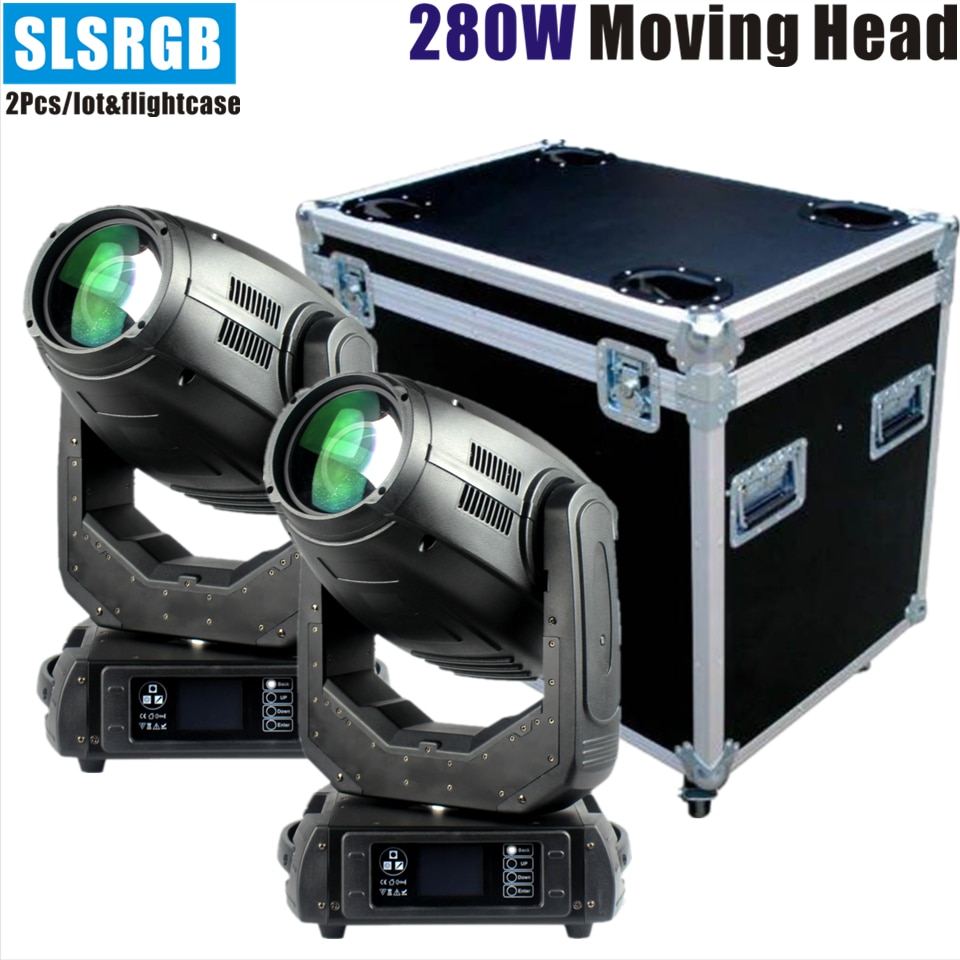

280W 3in1 is a new 10R(280W) lamp with high power, which is a necessary product for stage lighting. It has hybrid functions of spot wash and beam. It is equipped with rotated gobo wheel and color wheel. It can produce several lighting effects, such as gobo shake, rotation, rainbow, frost, focusing, zoom in/out, prism effect and so on. It has built-in program and auto-mode, easily for installation and transportation. It is fit for professional stage performance.

HOUSING
 Plastic Housing

Product Instruction

Lamp: 280W (Color temperature: 8000K)

Channel mode: 16 / 24 DMX512 Channel

Pan scan:  540degree(16bit) Electric correction

Tilt scan:  270degree (16bit) Electric correction

Amazing dot matix, four tact switch, 180degree turning show

280W beam spot

Color wheel: one color wheel, 13 kinds of color chips in one color wheel

Static Gobo: 14gobos

Rotation Gobo:9 gobos

Effect Wheel: one Rotation eight prism,one Rotation six prism effect move ,frost

0-100% mechanical dimming, mechanical dimming and free dimming available.

strobe macro control available.

Lens optical system achanical focus .

beam angle3.8degree-20degree

Over heat protection

Power Input: 100-240V,  50/60Hz

Power Dissipation:  420W

IP level :IP20

Magnetic ballast and AC/Dc power supply

WEIGHT and amp;SIZE

Packing Size: 523x337x570mm

Net weight:  20 KG

Packing list for each unit:

1pc moving head

1pc power cable with quick connector

1pc manual book

2pcs mounting clamps
