1/2/3/4/5m Ambient TV LED Strips USB Full set Led Light Tape HDTV Computer Dream Color Sync with Screen DIY Backlight Strip Kit
Features
1. Protect your eye: Watching TV in the dark causes the eyes to constantly adjust between a bright screen and dark surrounding area. These tv backlight elevates the surrounding light, reducing the eye strain caused by differences in picture brightness, creates a beautiful bias lighting when watching TV.
2. Music Mode: Spectrum with light and colors adjusting automatically base on the ambient sound, LED lights sync with the music. The strip light suits any type of music, including slow, relaxing tunes and dance music.
3. Safe to Use: Working voltage of 12V and equipped with short circuit protection and memory function. Waterproof, extremely low-heat, and safe.
4. Easy installation: LED strip light can be cut with scissors on the cut marks (white lines) to fit the desired size of your TV. Every step is very easy, just stick the strip lights on the smooth surface and connect according to the instructions. Our LED strips have stronger adhesives than other LED strip. They stick well to TVs, PC, cabinets, and walls.
5. Sufficient brightness to ensure a perfect backlight experience during the day.
Note: it only works on Android TV, Samsung/LG not belong to Android Operating System.
If you want to use it with Samsung/LG TV, you must connect an extra Android TV box to your TV first, then can be used with our product.

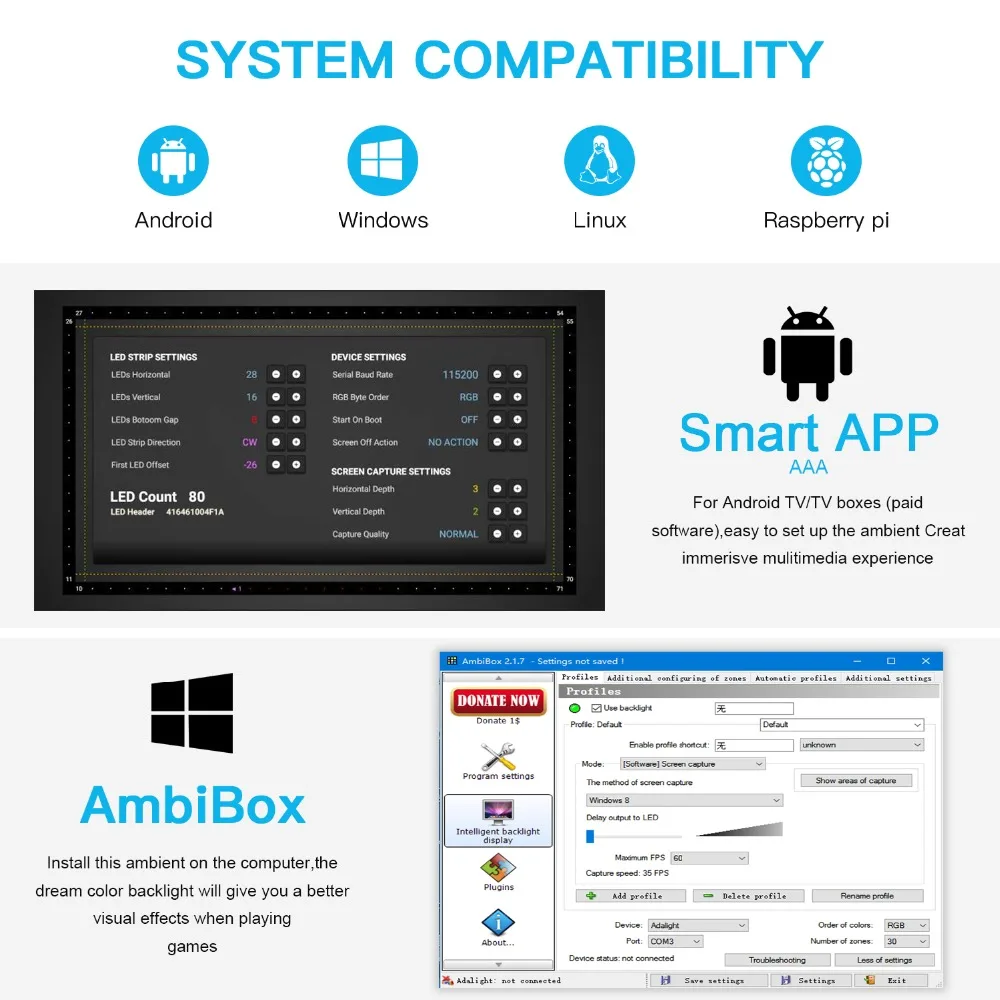

What software is needed?
Windows: Ambibox or Prismatik
Raspberry Pi: Openelec/libreelec+Hyperion ( )
Android TV/TV boxs ( except mi box ) ( Android 5.1 to 9.0 version ): AAA (Paid software)
(Or, the video signal of the computer is output to TV, TV as monitor.)
(Or, install or run Openelec/libreelec+Hyperion on your TV/TV box.)
It is important to know!
The analog TV signal is not processed by the Android OS level, so the backlight application will not work with regular TV channels. The backlight works only with Android OS applications that do not use protected content. 4K performance depends only on your hardware.
Unfortunately, programs such as YouTube and Netflix use protected content (DRM), this application has no ability to work with them. In order to make it work you should use the special client. For example SmartYoutube.
Specifications
Type: LED Light Strip Kit
Length:1/2/3/4/5meters optional
LED quantity: 30LEDs/meter, 60LEDs/meter optional
Supported systems: for Windows, for Mac Os, for Linux
Input voltage: 12V
Power source: US/EU/UK/AU Plug
Package included
1 * LED Strip
1 * Light Box
1 * USB Cable
1 * Power Adapter
Warm Prompt:
Because the set up of this item is a bit complicated, if the product does not work properly, please be sure to contact us first instead of open dispute or write negative feedback directly, we must help you solve it, thank you!
Step 1: Install LED light on your TV(please refer to the video for details)
Step 2: Purchasing a Paid Software on Google Play: AAA
Note: Android TV/TV boxes(only Android 5.1 or above can be used)
Step 1: Install LED light on your PC.(please refer to the video for details)
Step 2: Setting up the Ambibox Capture Software.
2.1. Ambibox software(Shareware);Download link:
2.2. Run the Ambibox software, when installing, it recommends to use PlayClaw, I wouldn’t recommend to using it.
2.3. Select device and set this as “Adalight”, under menu of “Intelligent backlight display”, select the Port and the COM Port that your device has been detected. If select correctly, you can see Device Status: Connected, also down the bottom left it will say Adalight: connected.
2.4. Once you setted up, you can select the “Wizard capture zones” which will automatically generate all capture zones for you.
PRO TIPS : if you find your colours are washing out or seem very white rather than colourful, adjust your gamma settings, if you getting a white backlight on a pure black screen, increase the size of sample zones, It will take a bit of fine tuning but worth it!
https://youtu.be/UAUyKvEt7aE

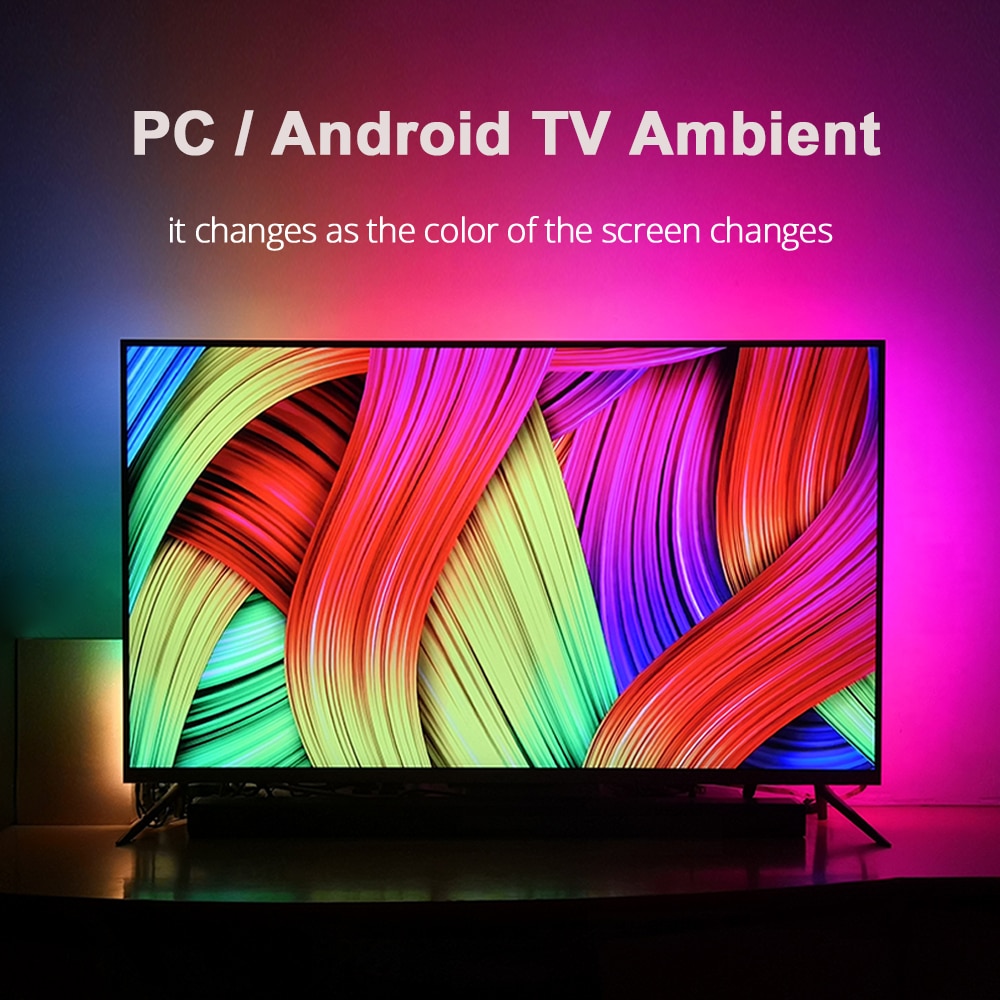

The software analyses what you currently have on the screen, be it a movie, a game, or
anything else, it’ll sends this information to the device which in turn lightens the surface
behind the screen with matching colours using the RGB-LEDs available within the device.
