Overview

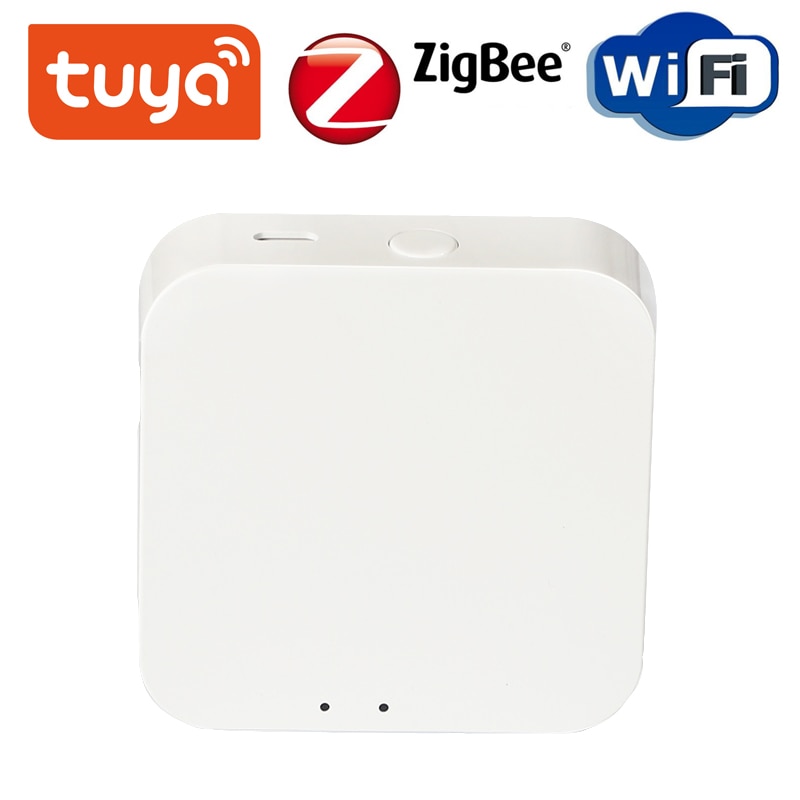

TUYA Zigbee hub that connects to a variety of Zigbee smart products and is the bridge and control center for smart homes. By connecting to the router, TYGWZ-01 enables communication with the cloud and mobile app, allowing users to easily view and control various smart devices in the home that use the Zigbee protocol.

Parameter:

– Chip: EFR32MG1B232

– Standard: IEEE 802.15.4

– Frequency: 2.4~2.485GHz

– Maximum output power: 19dBm

– Dynamic output power: and gt;35dB

– Open line of sight transmission distance: and gt;300m

– Frequency error: ±15ppm

– Theoretical transmission rate: 250kbps

– Receive sensitivity: typical -102dBm, PER and lt;10%

– Total number of channels: 16 Channel number: 11~26

– Network topology: Supports star, tree, mesh network

– Antenna: default PCB onboard antenna Firmware upgrade: Support OTA

Electrical Specification

– Working voltage: 1.8V ~ 3.3V

– Working temperature: -10-55°C

– Working humidity: 10%-90%RH (non-condensing)

– Storage temperature: -20-60°C

– Storage humidity: 5%-90% RH (non-condensing)
