- The package contains:
2. the application currently support for Android and IOS, you can get the download link by scaning QR code on packing box or user manual.
Memery after power off suddenly
All your temperature setting and device connection information will be stored after power off suddenly. It will connect automatically when the power come back.
Fast Delivery
We will send out your package within 2-5 days.
We send the package with Aliexpress standard shipping. Normally it takes 7-30 days from our customer feedback.
If you need the product urgently, Please choose Aliexpress Premium shipping.
- Application Description:
2. Working together with Receiver PTR10, it not only wirelessly switch the heating system On and Off, also change and program the room temperature.

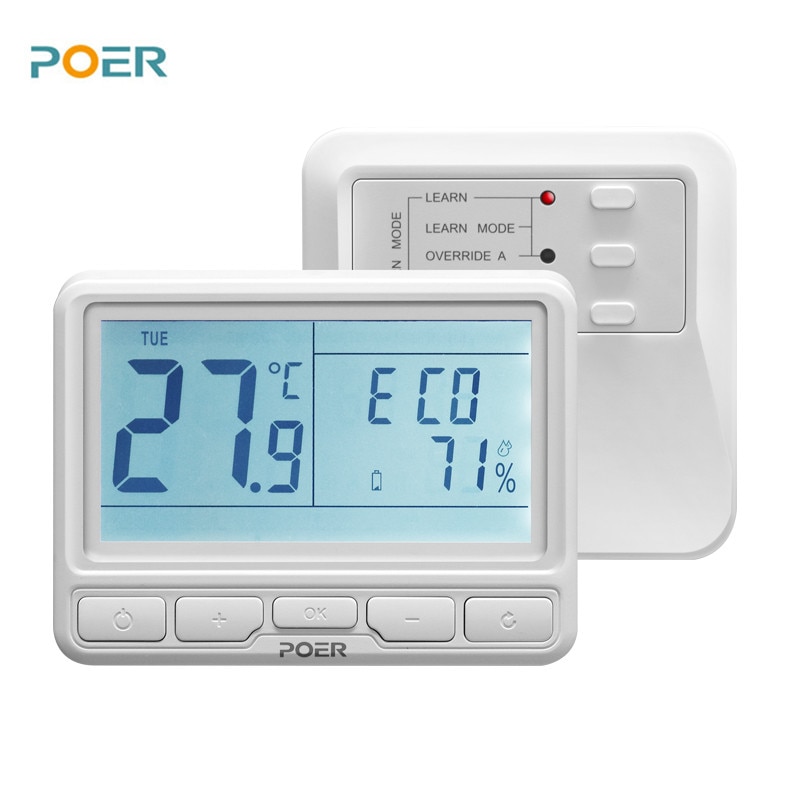

- Thermostat’s Feature
1, Control and program remotely via POER free App (connecting the unit with Internet by POER gateway), offer the programming maximum convenience and flexibility.
2, Without connection to Internet, works as standard programmable thermostat, max. 7 time periods per day, 5+2 days/7 days/1 day independent programming for option.
3, Wireless two-way communication between thermostat and receiver/gateway by RF.
4, Auto, manual, holiday, ECO and override modes.
5,Frost protection and Valve protection function
6,Optimum Start functionality
7,Memory holds user programs and clock even when power failed
8,Indoor humidity sensor, display the humidity inside
9,Large LCD display with backlight
10,Battery powered with low battery indicator
11,Wall Mounted or Desk Stand to make sure the best location
12,Automatic Summer/Winter time change
13,Child lock
- Receiver’s Feature:
- Product Data:
|
Operating Temperature |
0 to 50degC |
|
Control mode |
Heating system |
|
Display |
LCD with backlight |
|
Transmitting frequency |
868 MHz(433 MHz-PTC10-433) 2 way |
|
Communication Range(open space) |
100 meters |
|
Power supply |
2 x AA alkaline batteries |
|
Battery life |
Typically 2 years |
|
Temperature setting range |
7degC to 32degC (0.5degC step) |
|
Temperature control accuracy |
+/-0.3degC |
|
Measurement interval |
every minute |
|
Frost protection temperature |
5degC |
|
Humidity range |
10 to 90%RH |
|
Humidity accuracy |
+/-5%RH |
|
Time display |
12 hour/24 hour |
|
Dimensions (HxWxD) |
117.2 x 87.2 x 26.6mm |
|
IP class |
IP30 |
|
Standard |
CE |
|
Weight |
211g with battery |
|
Operating Temperature |
0 to 50degC |
|
Transmitting frequency |
868 MHz(433 MHz-PTR10-433) 2 way |
|
Communication Range(open space) |
100 meters |
|
Power |
2W |
|
Power supply |
100VAC~240VAC, 50Hz |
|
Switch rating |
240VAC 50Hz, 5A resistive, 2A inductive |
|
Switch Type |
SPDT relay |
|
Dimensions (HxWxD) |
98.3x 98.3 x 31.3mm |
|
IP class |
IP30 |
|
Standard |
CE |
|
Weight |
145g |
- Dimension:
1. wireless programmable heating thermostat -PTC10:
2. wireless receiver-PTR10:
- Receiver’s volt free contact:
- Receiver’s wiring layout:
3. Electric Heater
4. Thermal Actuator
5. Zone Valve
Boiler Application:
