NEW ARRIVAL

Smart WiFi Garage Door Opener Controller, RF+WIFI Curtain Switch with NEW function can set percentage on App

Note before order:

The neutral wire , Live wire 1, and live wire 2 (for up or down) of your motor are must required, normally the neutral wire color is blue, please don’t install the switch with any DC (5-24V) motor, it require input 100-250VAC voltage

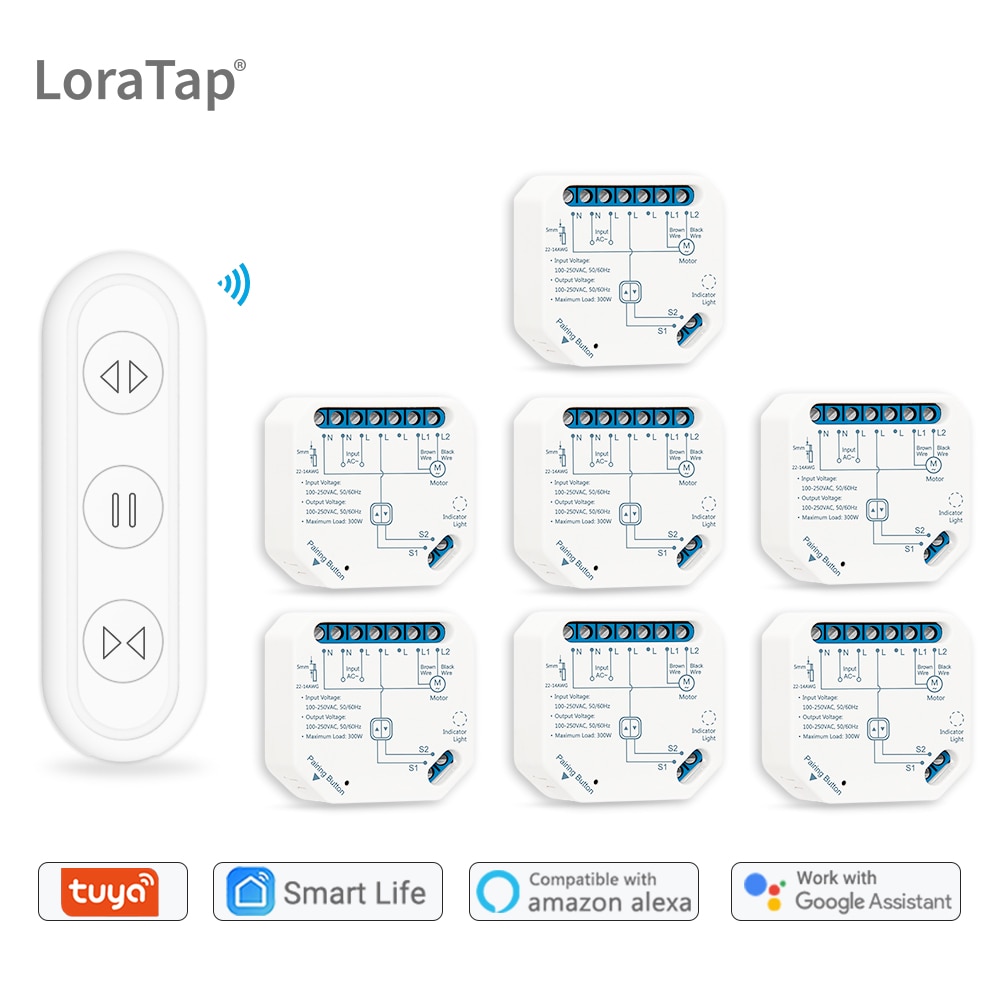

3nd Generation WiFi Shutter Switch Module with RF Remote Control Switch

Multi ways to control the electrical curtain blinds- App Remote Control ( Open, Pause, Close)- Use a Manual Remote to control the curtain blinds, ( Open, Pause, Close) Control Range up to 30m- Voice Control with Google Home, Amazon Alexa, (OPEN, CLOSE, and you can make a scene in smart life App to stop the curtain, and make a routine in Google home, or alexa App to activate to stop the curtain by voice control)Built in RF module, enable you can remote control your blinds shutter even if you have trouble with WIFI

Compact Size

Tiny size can fit most junction box

2 Wiring Diagram according to your need

1. If you need to connect the manual switch ( please only connect with push button and back switch type, not rocker)2. After install the module, the manual wall switch can’t pause the curtain in the middle, but the remote or App is able to pause the curtain

If you don’t have a wall maual switch

If you don’t need to connect manual wall switch, please connect wires as below , it’s simpler.You can use remote and App to control the roller shutter

Main Features- Free APP Name: Smart Life, Tuya- Timing Function, APP remote controlProgram the switch module on App ‘smart life/Tuya’, then your curtain, blind, roller shutter can be remote controlled by phone and you can set timing schedule for it, like open at 7:00am, close at 7:00pm, then your curtain blind can open or close automatically when time is up.You can control your smart curtains by mobile phone anytime, anywhere as long as it’s with network, Control Your Curtain Anywhere with Your mobile 2G, 3G, 4G network

Voice Control

Hands-free Smart Blind Switch Compatible with Alexa, Google Home. With voice control to turn on and turn off the curtains.

Group Function and Device Sharing

You can create group in the APP to manage all the blinds in your house and share the device to all your family members.

Installation Method

– You can install the module in the box or mount it besides the motor as you need. – User Manual with 8 pages detailed instruction for how to connect curtain switch, how to connect App. Five languages available, Spanish, French, Germany, Italian and English. Please contact us if you have any special demand for the user guide.

Specification

Input voltage: 100-250 VAC, 50 / 60HzWiring: Neutral Wire, L1, L2, Earth WireMax Load: 300 WWi-Fi Standard: 2.4 GHz 802.11 b / g / n (Not support 5Ghz)RF Wireless Frequency: 868MhzStandby Consumption: below 0.5WDimensions: 48mm * 47mm * 22mm

What’s in the Box?

1 * Smart Curtain Switch Module1 * 3-Button Remote1 * User Guide3 * Wires for easy to install1 * Screw driver1 * Double side tap 1 * Lanyard

Questions and amp; Answers

Question: Why the price is so competitive?Answer: We are a manufacturer for smart home products, we can accept mass order and can provide technical support. Please feel free to contact us if you have any questions.Question: Can you do OEM service?Answer: We are the manufacturer specialized in smart home products, we can provide OEM service and technical support. Question: If there is any interference if use many in the same spaceAnswer: Our product with unique ID, no interference to use many kits in the same spaceQuestion: About Product QualityAnswer: We are ISO9001 certified , All products will be fully tested before ship from our factory.
