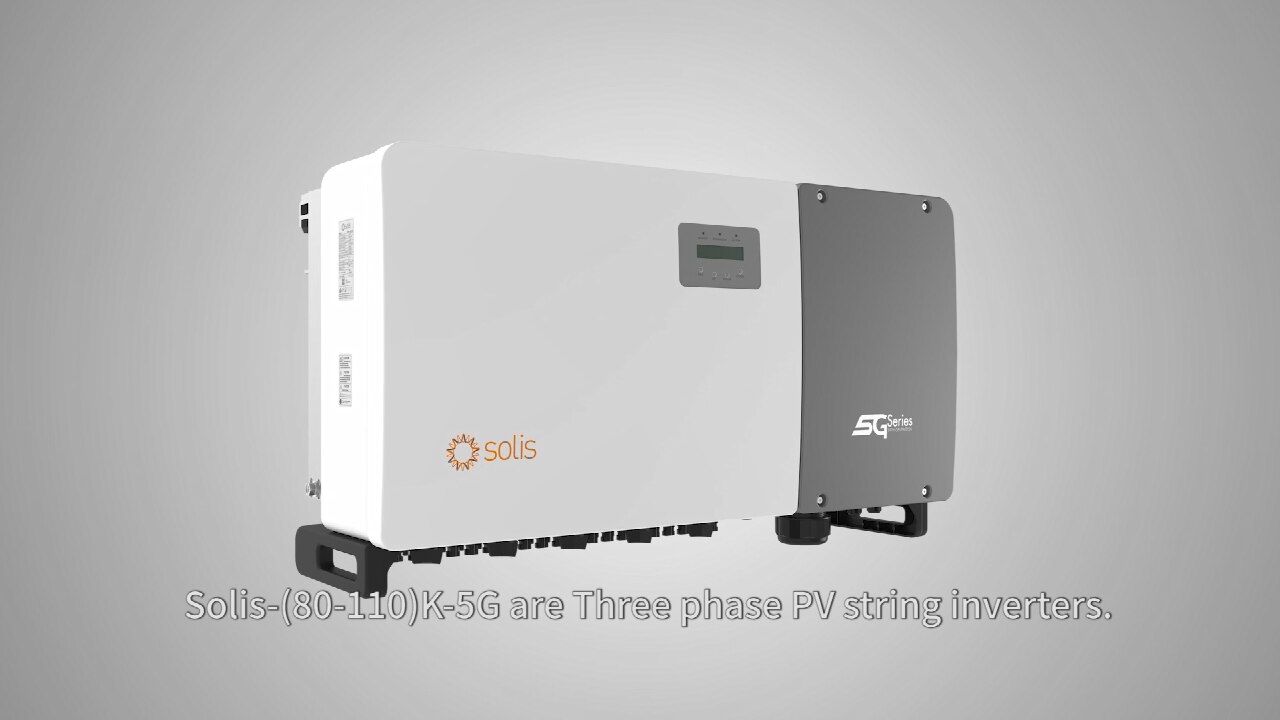

Product Description
|
Datasheet
|
|
|
|
|||
|
|
|
|
|
|||
|
Model Name
|
Solis-80K-5G
|
Solis-100K-HV-5G
|
Solis-110K-BHV-5G
|
|||
|
Input DC
|
|
|
|
|||
|
Max. input voltage
|
1100V
|
|
|
|||
|
Rated voltage
|
600V
|
720V
|
|
|||
|
Start-up voltage
|
195V
|
|
|
|||
|
MPPT voltage range
|
180-1000V
|
|
|
|||
|
Max. input current
|
9*26A
|
10*26A
|
|
|||
|
Max. short circuit current
|
9*40A
|
10*40A
|
|
|||
|
MPPT number/Max. input strings number
|
9/18
|
10/20
|
|
|||
|
Output AC
|
|
|
|
|||
|
Rated output power
|
80kW
|
lOOkW
|
HOkW
|
|||
|
Max. apparent output power
|
88kVA
|
HOkVA
|
121kVA
|
|||
|
Max. output power
|
88kW
|
HOkW
|
121kW
|
|||
|
Rated grid voltage
|
3/N/PE, 220/380V, 230/400V
|
3/PE, 480V
|
3/PE,540V
|
|||
|
Rated grid frequency
|
50/60HZ
|
|
|
|||
|
Rated grid output current
|
121.6A
|
120.3A
|
117.6A
|
|||
|
Max. output current
|
133.7A
|
132.3A
|
129.4A
|
|||
|
Power Factor
|
and gt;0.99 (0.8 leading – 0.8 lagging)
|
|
|
|||
|
THDi
|
and lt;3%
|
|
|
|||
|
Efficiency
|
|
|
|
|||
|
Max. efficiency
|
98.7%
|
99.0%
|
|
|||
|
EU efficiency
|
98.3%
|
98.5%
|
|
|||
|
Protection
|
|
|
|
|||
|
DC reverse-polarity protection
|
Yes
|
|
|
|||
|
Short circuit protection
|
Yes
|
|
|
|||
|
Output over current protection
|
Yes
|
|
|
|||
|
Surge protection
|
DC Type II/AC Type II
|
|
|
|||
|
Grid monitoring
|
Yes
|
|
|
|||
|
Anti-islanding protection
|
Yes
|
|
|
|||
|
Strings monitoring
|
Yes
|
|
|
|||
|
1/V Curve scanning
|
Yes
|
|
|
|||
|
Anti-PID function
|
Optional
|
|
|
|||
|
Integrated AFCI (DC arc-fault circuit protection)
|
Yes
|
|
|
|||
|
Integrated DC switch
|
Yes
|
|
|
|||
|
Integrated AC switch
|
Optional
|
|
|
|||
|
General Data
|
|
|
|
|||
|
Dimensions (W*H*D)
|
1050*567*314.5 mm (with AC switch)
|
|
|
|||
|
Weight
|
82kg
|
|
|
|||
|
Topology
|
Transformerless
|
|
|
|||
|
Self consumption
|
and lt;2W (night)
|
|
|
|||
|
Operating ambient temperature range
|
-25~ +60°C
|
|
|
|||
|
Relative humidity
|
0-100%
|
|
|
|||
|
Ingress protection
|
IP66
|
|
|
|||
|
Cooling concept
|
Intelligent redundant fan-cooling
|
|
|
|||
|
Max. operation altitude
|
4000m
|
|
|
|||
|
Grid connection standard
|
VDE-AR-N 4105, VDEV 0124, VDEV 0126-1-1, UTE C15-712-1, NRS 097-1-2, G98, G99, EN 50549-1/-2, RD 1699, UNE 206006, UNE 206007-1,1
EC 61727, DEWA |
|
|
|||
|
Safety/EMC standard
|
IEC 62109-1/-2, IEC 62116, EN 61000-6-2/-4
|
IEC 62109-1/-2, IEC 62116, EN 61000-6-2/-4
|
|
|||
|
Features
|
|
|
|
|||
|
DC connection
|
Pv connector
|
|
|
|||
|
AC connection
|
OT terminal (max. 185 mm2)
|
|
|
|||
|
Display
|
LCD
|
|
|
|||
|
Communication
|
RS485, Optional: Wi-Fi, GPRS, PLC
|
|
|
|||

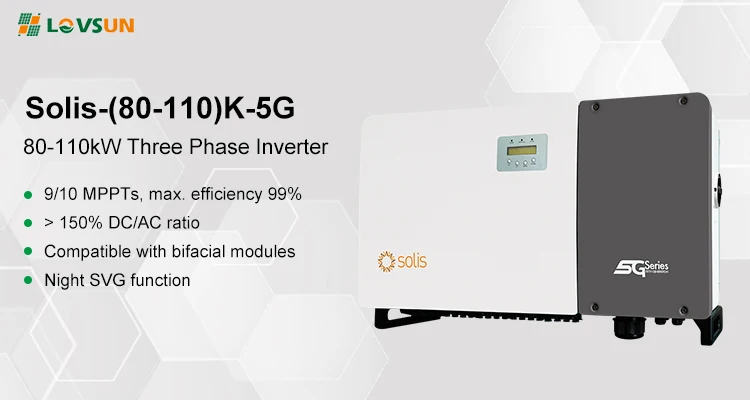

Products Features
— 9/10 MPPTs,max.effciency 99%
— and gt;150% DC/AC ratio
— Compatible with bifacial modules
— IP66
— Built-in PID recovery for better module Performance(optional)
— Globally recognised branded componentry for longer life
— Night SVG function
— Intelligent string monitoring Smart I-V curve scan
— Remote firmware upgrade with simple operation
— Power Line communication(PLC)(optional)
— Support”Y”type connection in DC side
— Supports aluminium wire access to reduce cost

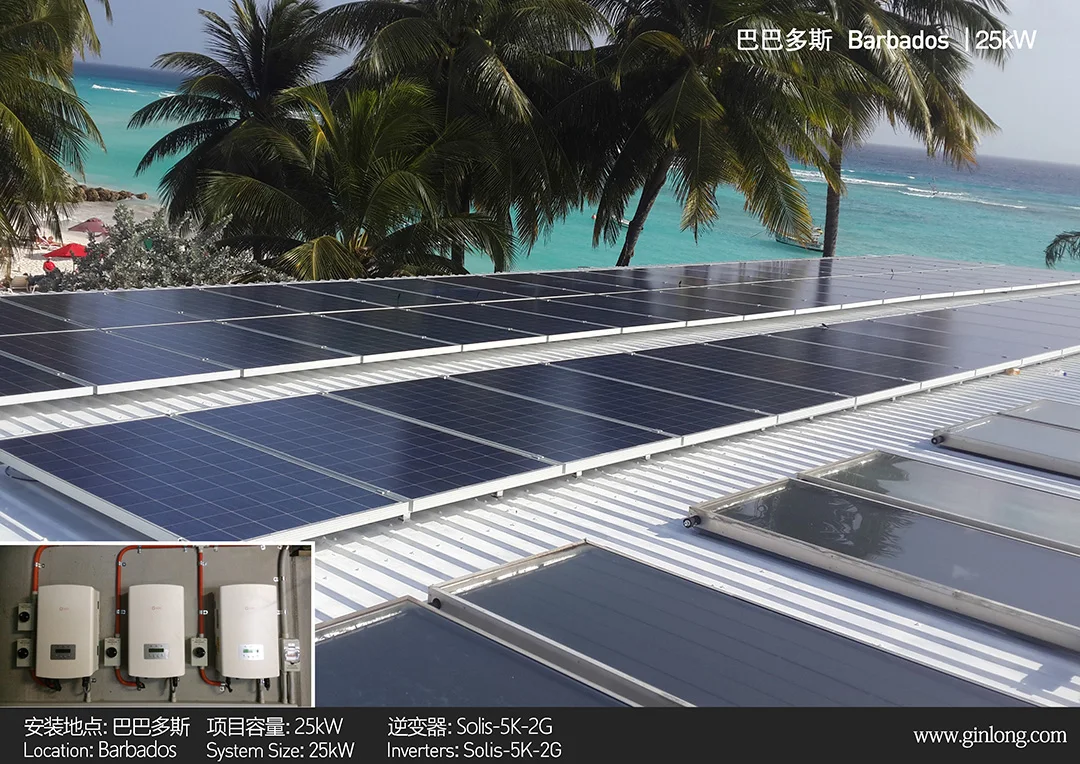

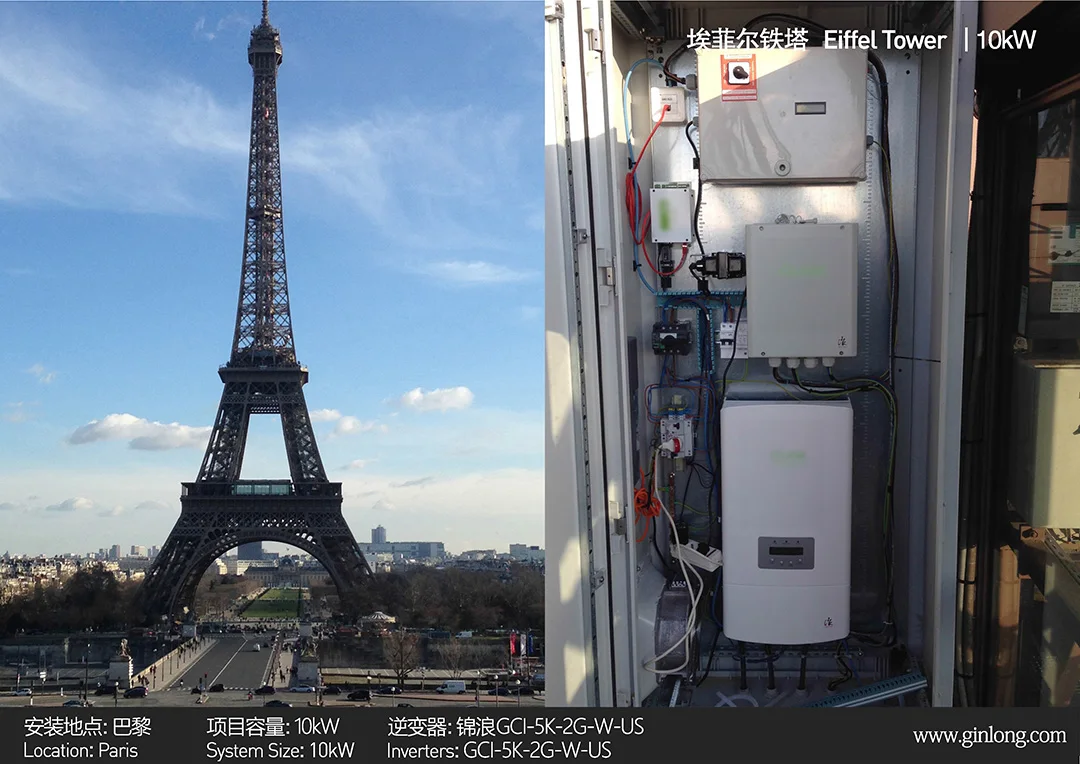

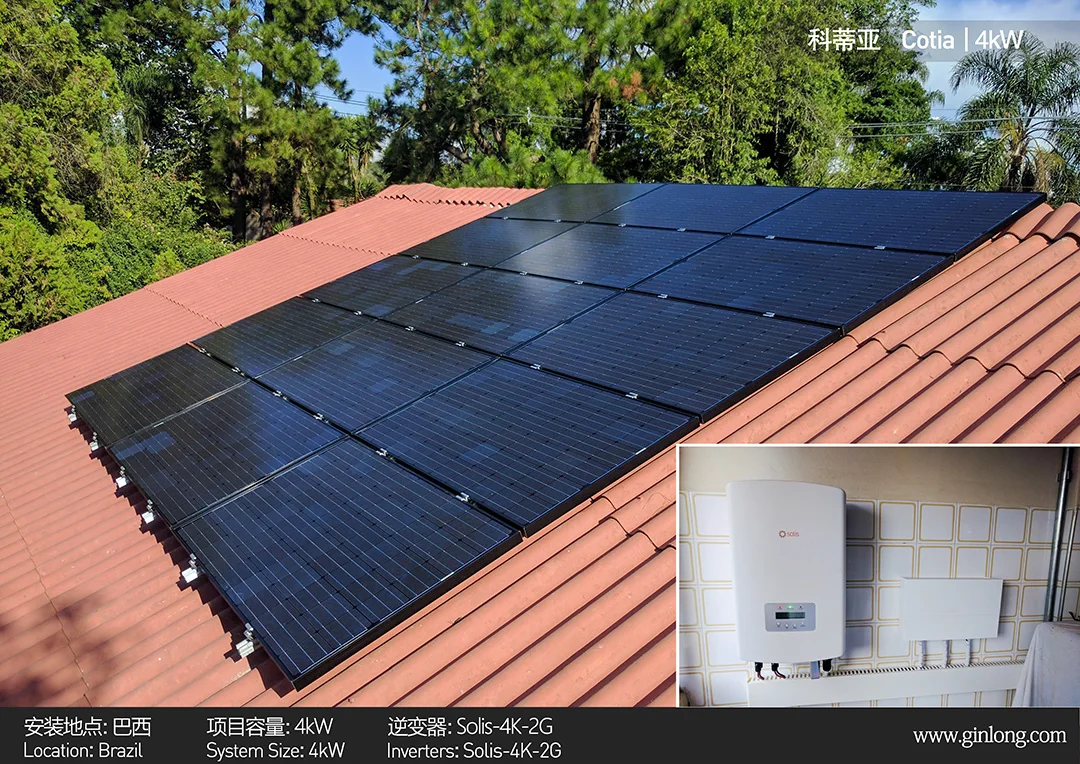

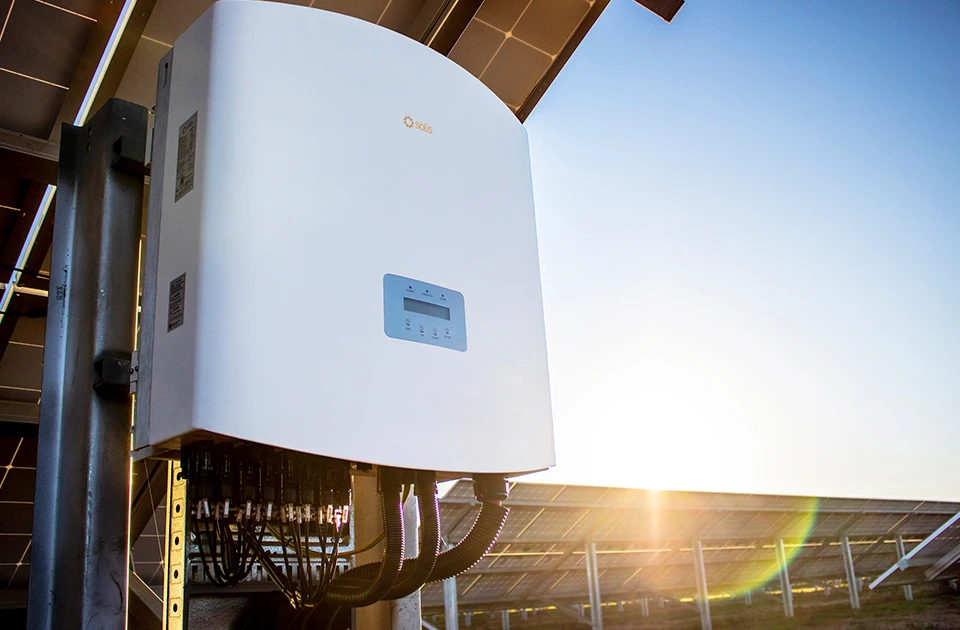

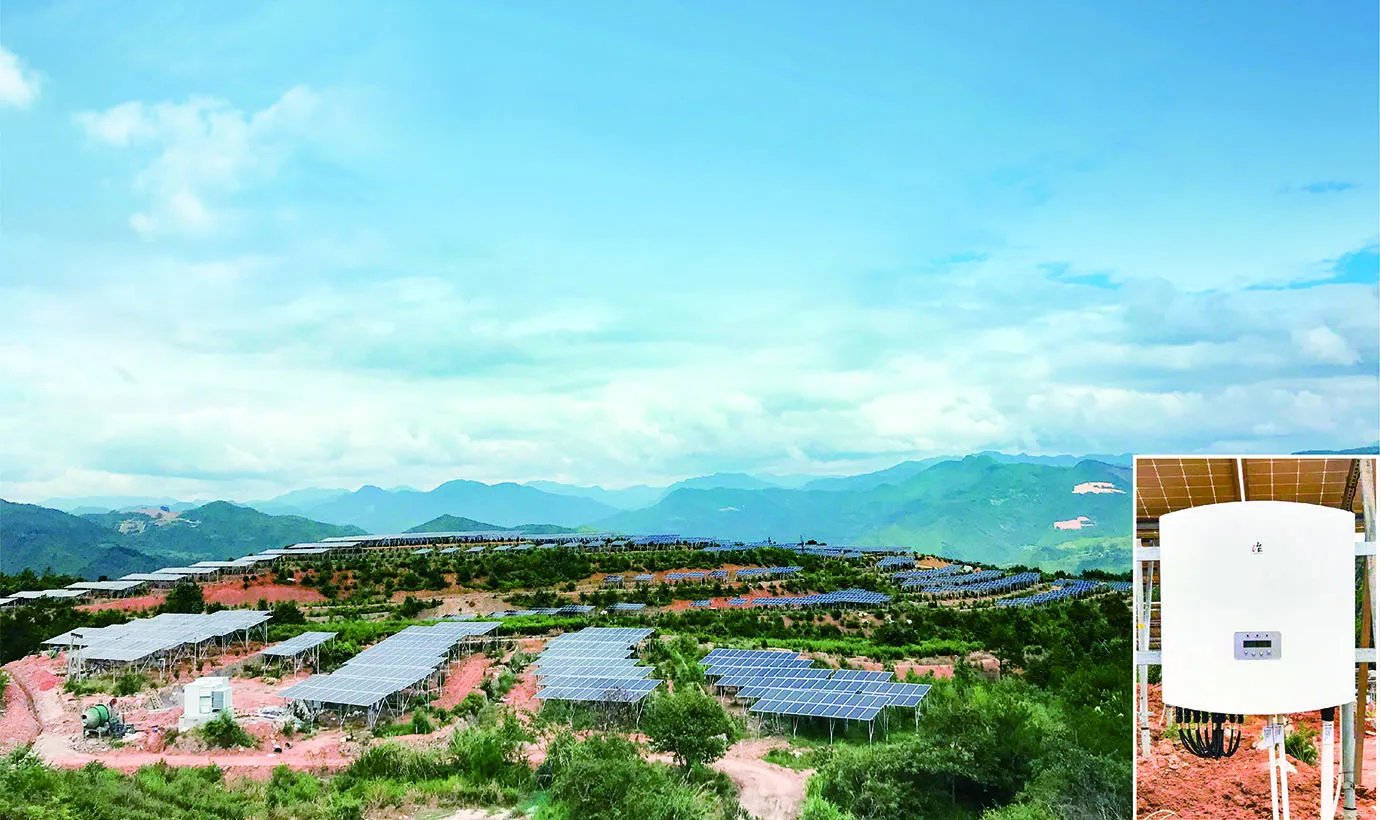

project

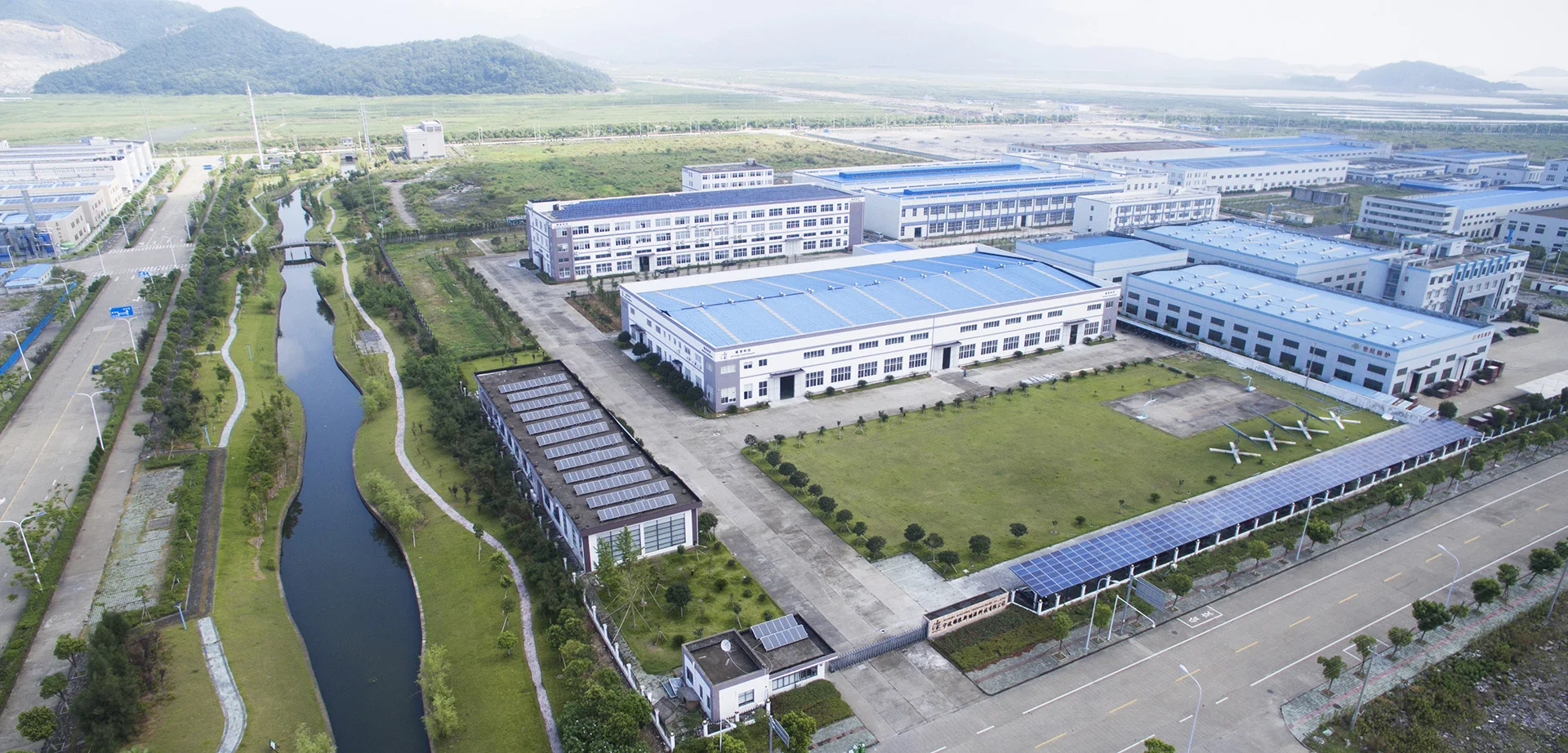

Company Introduce
Company Vision
Lovsun Solis is not only a string inverter R and amp;D and manufacturing enterprises, but also good at the development of “energy management”.

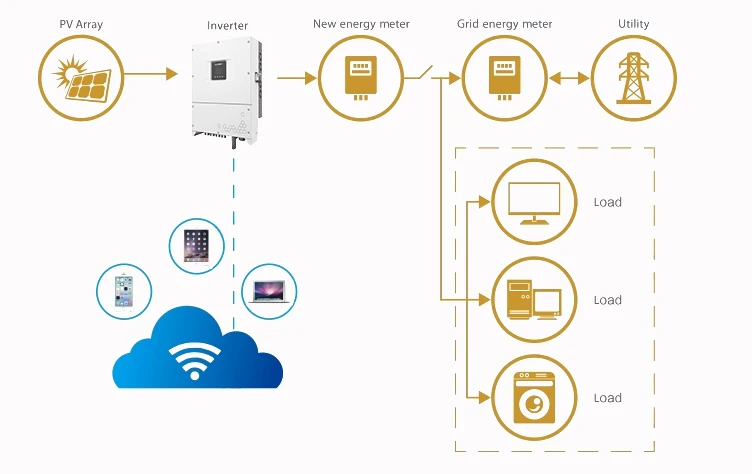

As a gateway, the inverter forms the smart power grid of the family and distributes the energy in a network, and finally realizes the “smart energy management”.
Company Culture
scientific, green,
humanistic and international

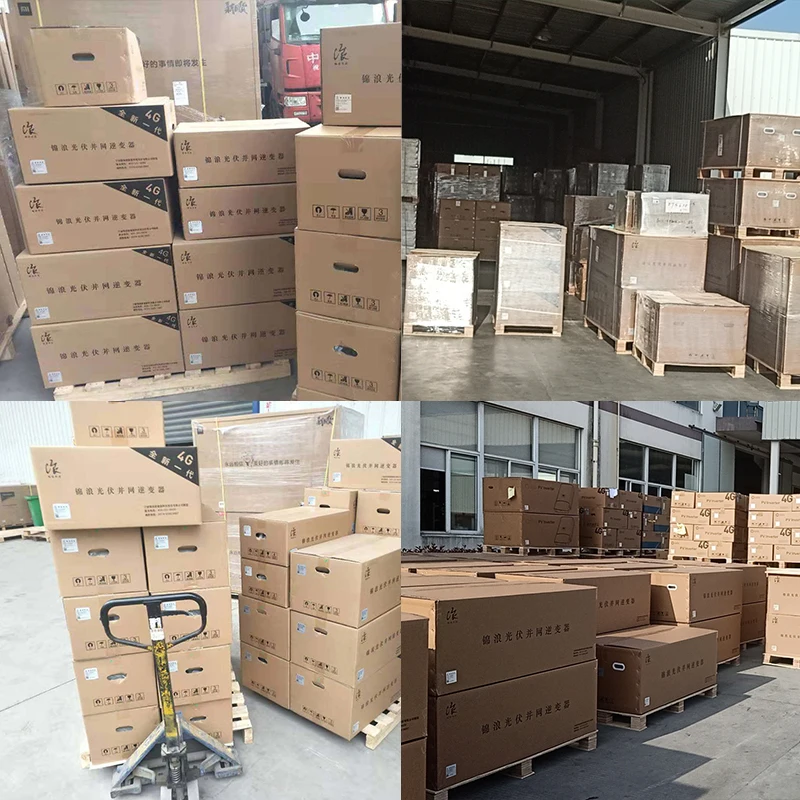

Pack and amp;shipping

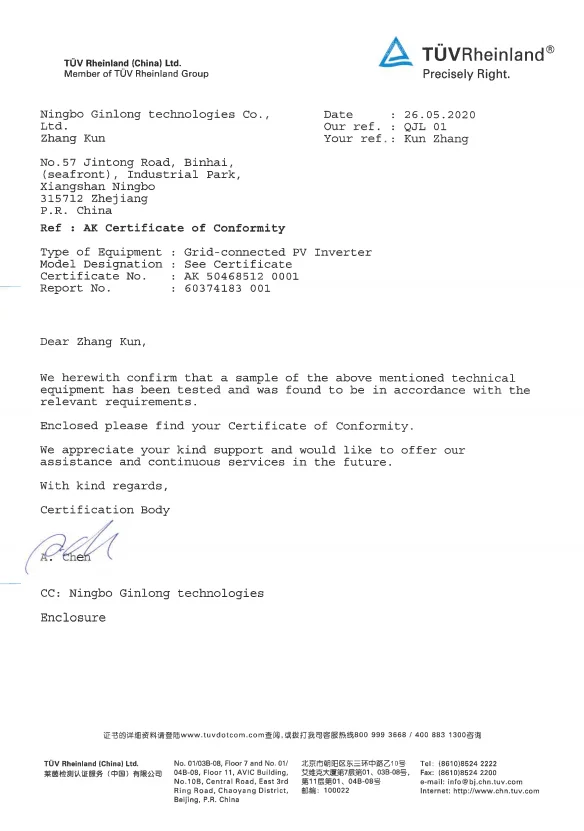

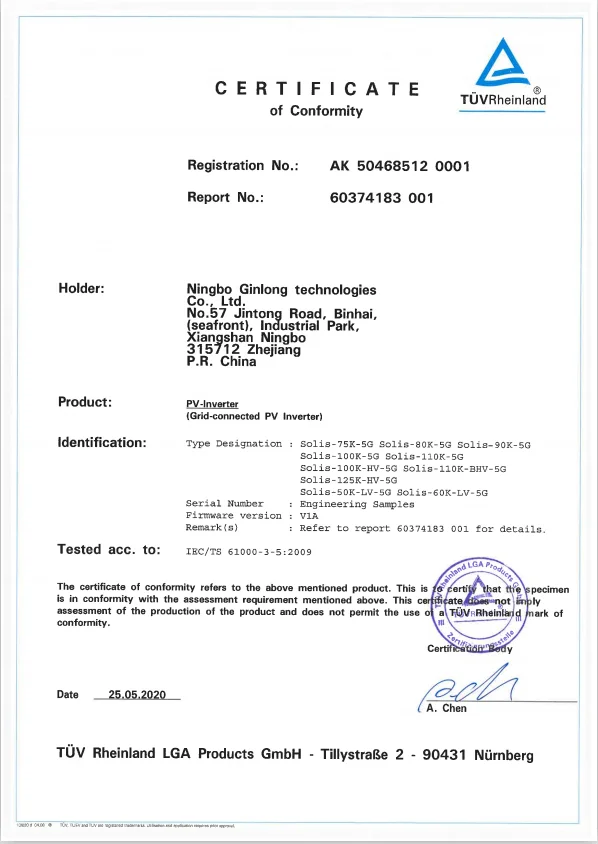

certification diagram
Delivery and amp; Payment Terms
|
Payment Terms
|
T/T
|
EXW
|
30% in advance for deposit payment, the balance payments will be paid before shipment.
|
|
|||
|
|
|
FOB
|
|
|
|||
|
|
|
CFR/C and amp;F
|
30% in advance for deposit payment, the balance will be paid against copy of B/L
|
|
|||
|
|
|
CIF
|
|
|
|||
|
|
L/C
|
For the amount of one shipment above 50,000 usd, L/C at sight is acceptable.
|
|
|
|||
|
|
West Union
|
Optional for the amount less than 5000 usd |
|
|
|||
|
|
Paypal
|
|
|
|
|||
|
Delivery Time
|
7~25 days after receiving the payment or the deposit payment
|
|
|
|
|||
