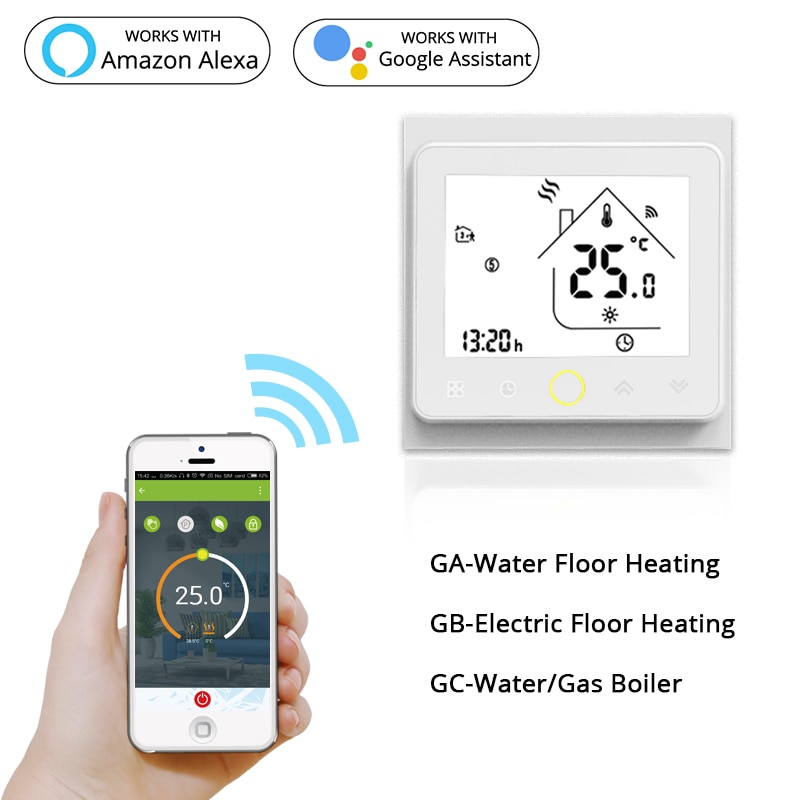

Wi-Fi Thermostat Temperature Controller for Water/Electric floor Heating Water/Gas Boiler Works with Alexa Google Home 3A 16A
By Moes
Attention: BHT-002GA / BHT-002GALW / BHT-002GC / BHT-002GCLW doesn’t include Floor sensor
NOTE:
Model:BHT-002-GA/BHT-002-GB/BHT-002-GC Doesn’t include Wi-Fi Function.
Model:BHT-002-GALW/BHT-002-GBLW/BHT-002-GCLW/ Include Wi-Fi Function.
The manual in English:
BHT-002
BHT-002 with Wifi/Voice control
https://drive.google.com/open?id=1xt-ZfGK9-3h3uKKwX0xaEZsp8CEkTiUM
| INSTALLATION |
| Your thermostat is suitable foe installation within a standard 86mm pattress box or European 60mm pattress box |
| Step 1. Keep power off. See Fig 1 |
| Step 2. Remove the mounting Plate by rotating the LCD part. See Fig 2. |
| Step 3. Connect power supply, load into the appropriate terminals. (see “Wiring your thermostat” for details and Fig 3). |
| Step 4. Fix the mounting plate into the wall with screws in the box. See Fig 4. |
| Step 5. Fasten body of the thermoatat and the mounting plate through rotating. See Fig 5. |
| Step 6. Installation complete. See Fig 6. |
