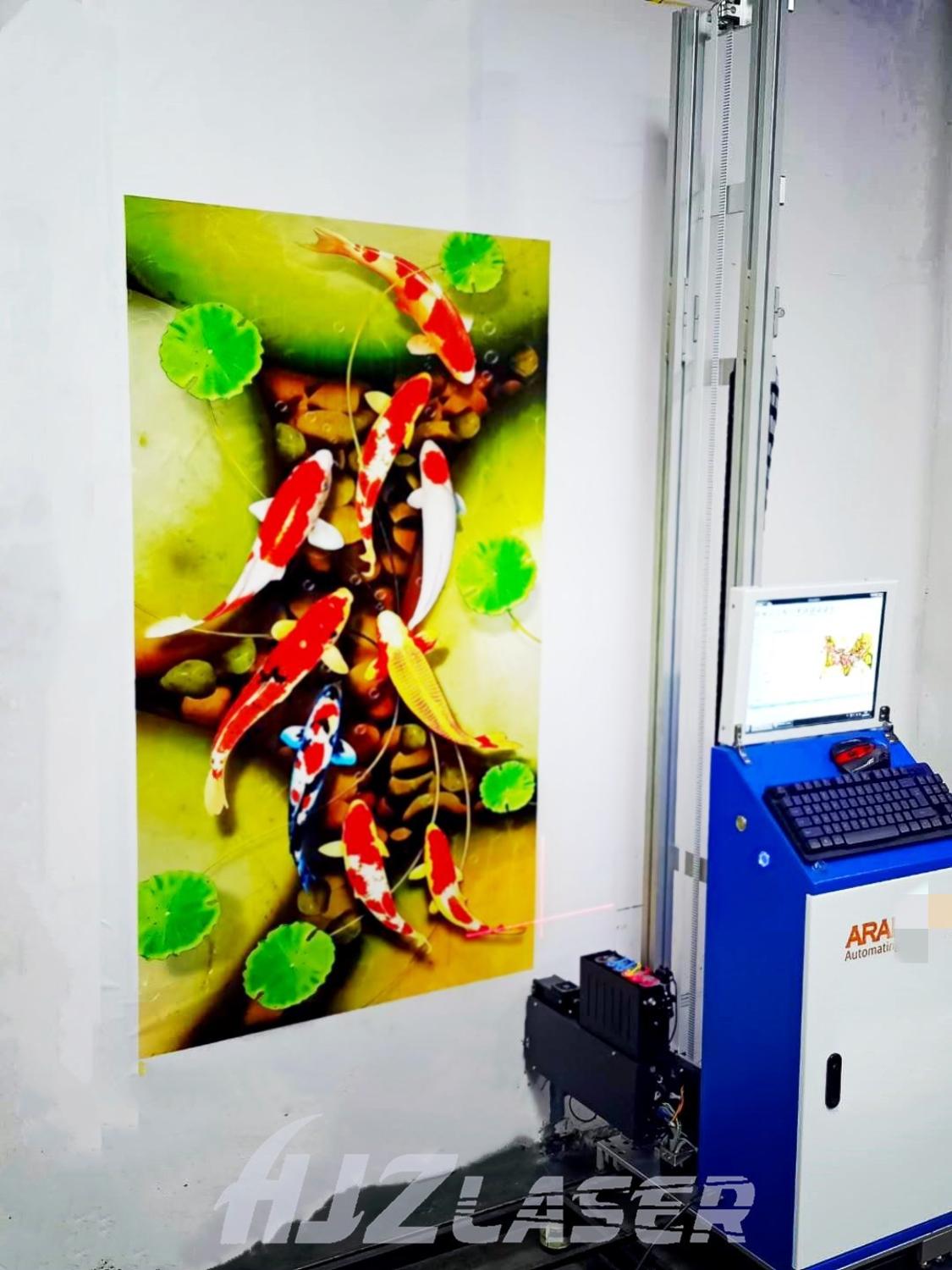

Outside 3D Mural Decor Vertical Zeescape Direct to Wall Inkjet Printer Machine
Model: HJZ-WP01/06 Wall Printer Feature
1. Variable ink drop technique: Make sure printing photo in high resolution, clarity and vivid color
2. Pantent Pattern Model: machine can continue printing if machine out of power during printing
3. Environmentally friendly ink: Washable, high color saturatioin and color fastness, wide working temperature range
4. Certificate: CE certificate for Wall Printer, RoHS certificate for Ink
5. Customize Software: One step simple operation
6. Fast digital Transfer: Fiber cable transfer
7. Free Software installation: Machine have it own industrial pc, and operate on tablet PC
Technical data :
| Model | 3D Wall Printer Machine HJZ-WP-01/06 | |||
| Body | Aluminum-magnesium alloy, Frame structure | |||
| Mode of Operation | Wireless touching screen | |||
| Nozzle type | Special design | |||
| Sprinkler protection | Full-directional sprinkler protection fixing plate, effectively reducing the spray head damage | |||
| Ink | special designed for wall printing | |||
| The data transfer | Integrated head, telecommunication transmission system with optical fiber data transfer | |||
| Surface tracking | Bi-curved BANNER sensor | |||
| Motor technology | Brush-less motor with no bar grating, non- grating strip cleaning,free of maintenance | |||
| Feeder system | Automatic feed | |||
| Ink absorption technology | Improved ink absorb-er, good sealing performance, high efficiency of sprinkler cleaning, less ink waste, strong adsorption capacity | |||
| Memory recall | New interrupt patch function, automatic remember the break point, automatic recovery the starting position | |||
| Speed of coloured drawing | 3 speed adjustable: High, Middle, Low | |||
| Painted resolution | Indoor: 720 x 300 dpi, 720 x 600 dpi, 720 x 1200 dpi, 720 x 2400 dpi | Outdoor: VL720 x 300 dpi, VL720 x 600 dpi, VL720 x 1200 dpi, VL720 x 2400 dpi | ||
| Image type | JPG,BMP,TIFF,PDF,AI,PSD,CDR | |||
| Actual painted size | Height :2000mm , Width (could be extended) | |||
| Atlas type | The machine can store electronic files and external USB drives | |||
| Power | AC110V (90-132V) / AC220V (180-264V) Alternating current, 47-63HZ | |||
| Built-in power supply | Built-in lithium battery UPS back-up power, after power failure, Can still work for 10 hours when power failure (when battery is full-charged) | |||
| The power consumption | 20W (no load) ,75W (general) , 250W (maximum) | |||
| The noise | Standby and lt; 20dBA, drawing and lt; 50dBA | |||
| Operation | -10ºC -60ºC (14 F-140 F) 10 -80% relative humidity with non – coagulated state | |||
| Storage | -30ºC-60ºC(-22°F-140°F) 10%-80% relative humidity with non – coagulated state | |||
| The system platform | Windows XP / Win7 / Win8 / Win9 / Win10 | |||
| The main-board configuration | 8 core CPU, 4GB DDR memory, USB 2.0 / 3.0 data interface | |||
| Machine language | Chinese, English (customize) | |||
| Recognize | Green environmental certification, national standard test (GB 18582-2001, GBT 9756-2001), CE certification | |||
| Fast mode | A | 10 M² /h | ||
| Production mode | B | 6 M² /h | ||
| Quality model | C | 4.5 M² /h | ||
| High precision model | D | 3 M² /h | ||
| Dazzle colour pattern | Adding dazzle mode, greatly enhance color saturation and the picture is more vivid and amp; beautiful | |||
Application
This kind of 3D vertical wall printing machine is suitable for a variety of special materials: Painted inside and outside wall, wall putty, paint the walls, white porcelain, ceramic tile, walls, glass, paper, canvas, wall, colored glaze, shell powder, wall paint color tablets.
Product Advantages
1. The body of the wall mural printer machine is made of aluminum-magnesium alloy, high precision, the chassis is thin and durable, easy to carry.
2. Fuselage accessories of wall mural printer machine are imported CNC equipment manufacturing, together with a professional mold parts manufacturing process to ensure that the machine and accessories better consistency and higher stability.
3. Large Photo size of wall mural printer machine: High 2100mm, width is not limited. Construction no need to move the machine halfway, no need to do stitching, large format painted at one go, beautiful picture.
4. With high-precision brushless servo motor control system, vector positioning, no grating, motor without carbon brush, eliminating the need for cleaning, maintenance, wear and tear after the map garbled, need to regularly replace and other issues, painting high precision, maintain.
5. The wall mural printer machine adopts HD piezoelectric inkjet technology. Japan imported piezoelectric nozzle, high precision, clear and bright picture, durable.
6. Variable droplet technology with the wall mural printer machine. Minimum ink droplets 3.5PL, the largest 27PL, indoor painting screen clear and delicate, outdoor painting color bright, fast.
7. Advanced ink droplet control system and high fault tolerance are feather technology combined. The output quality of the 3D vertical wall printing machine is more perfect.
8. The ink of 3D vertical wall printing machine using imported paste, no heating, minus 10 ºC to zero 60 ºC in the normal work environment, no ice, continuous ink, colorful, three-dimensional sense of strong, do not fade, can not afford skin, three-dimensional sense of strong Scrub, green.
9. Sprinkler data signal using optical fiber integrated output. Faster, anti-interference ability, high reliability, stable transmission data.
10. Automatic fill system. Construction accidentally interrupted, fill the system can effectively reduce the painting scrap rate.
11. Fuselage reserved UPS, inverter interface (can be installed built-in power supply system, the3D vertical wall printing machine power off for about 10 hours).
12. Advanced AC servo control technology to ensure higher precision printing, better stability and longer service life.
13. Integrated head design, separable structure. Effectively avoid the damage caused by handling bumps, all around the nozzle installation board, thus extending the actual life of the nozzle.
14. Simple multi-color ink cartridges ink system, stable and convenient, to support the separation of fast lines, water and electricity separation, with the take with the release.
15. The 3D vertical wall printing machine using United States imported sensor system, dual sensors, up and down two-way sensor, surface tracking, automatic positioning, automatic solution to the wall uneven, wall tilt and other issues, effectively reducing the risk of head damage.
