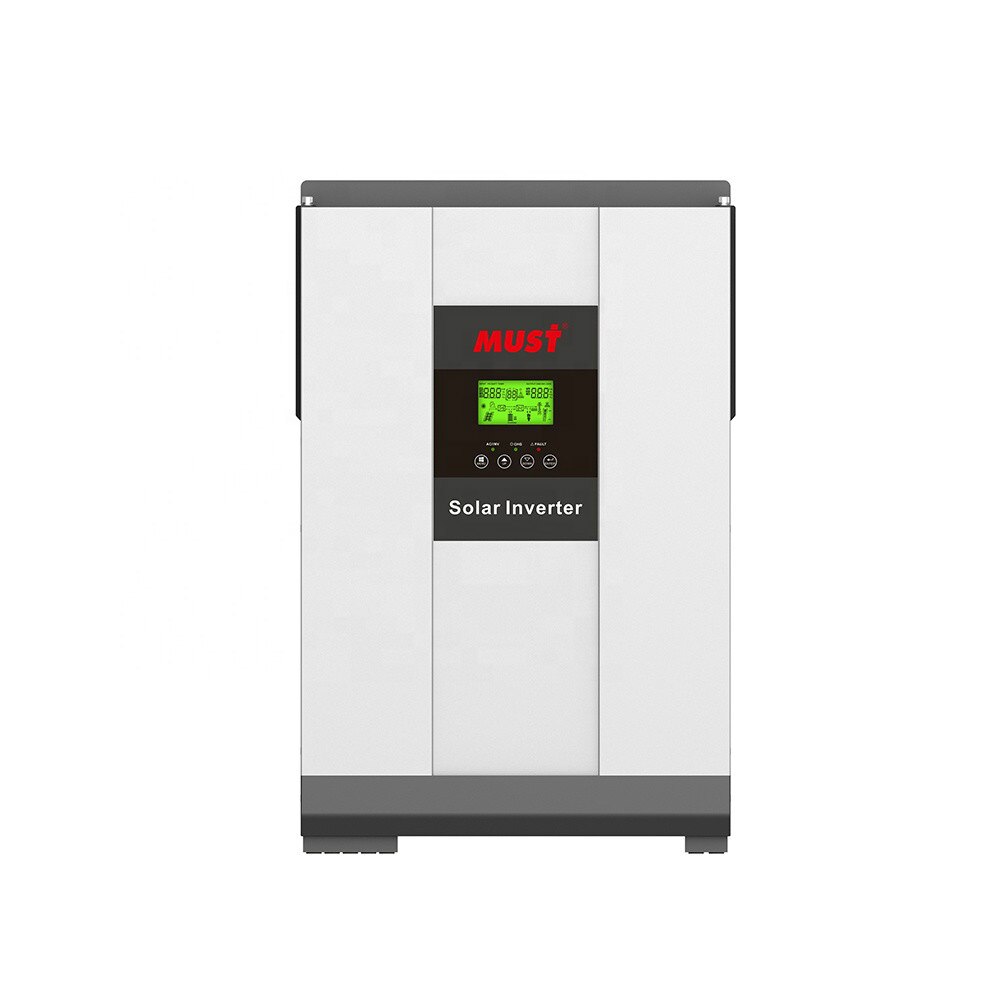

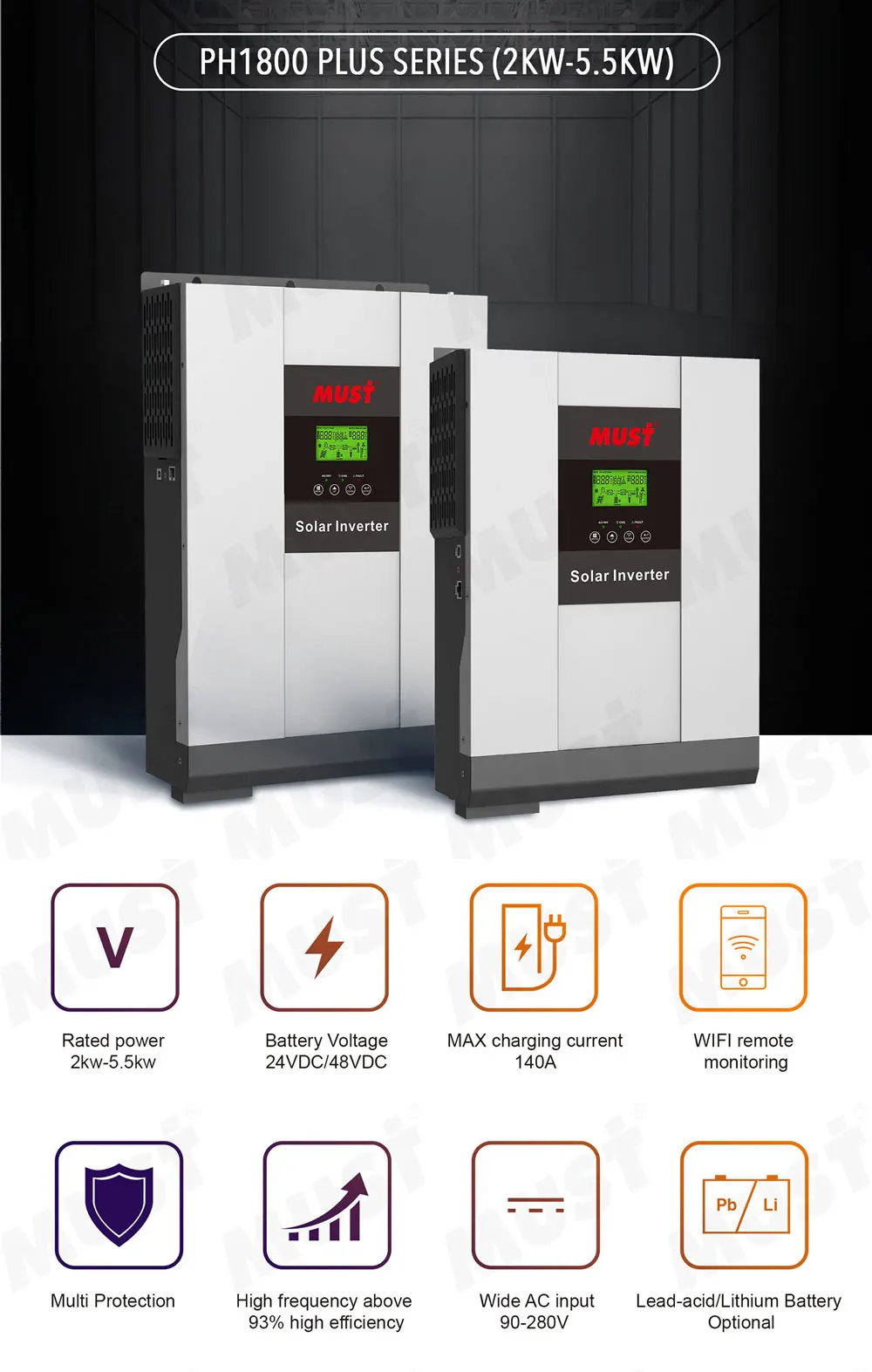

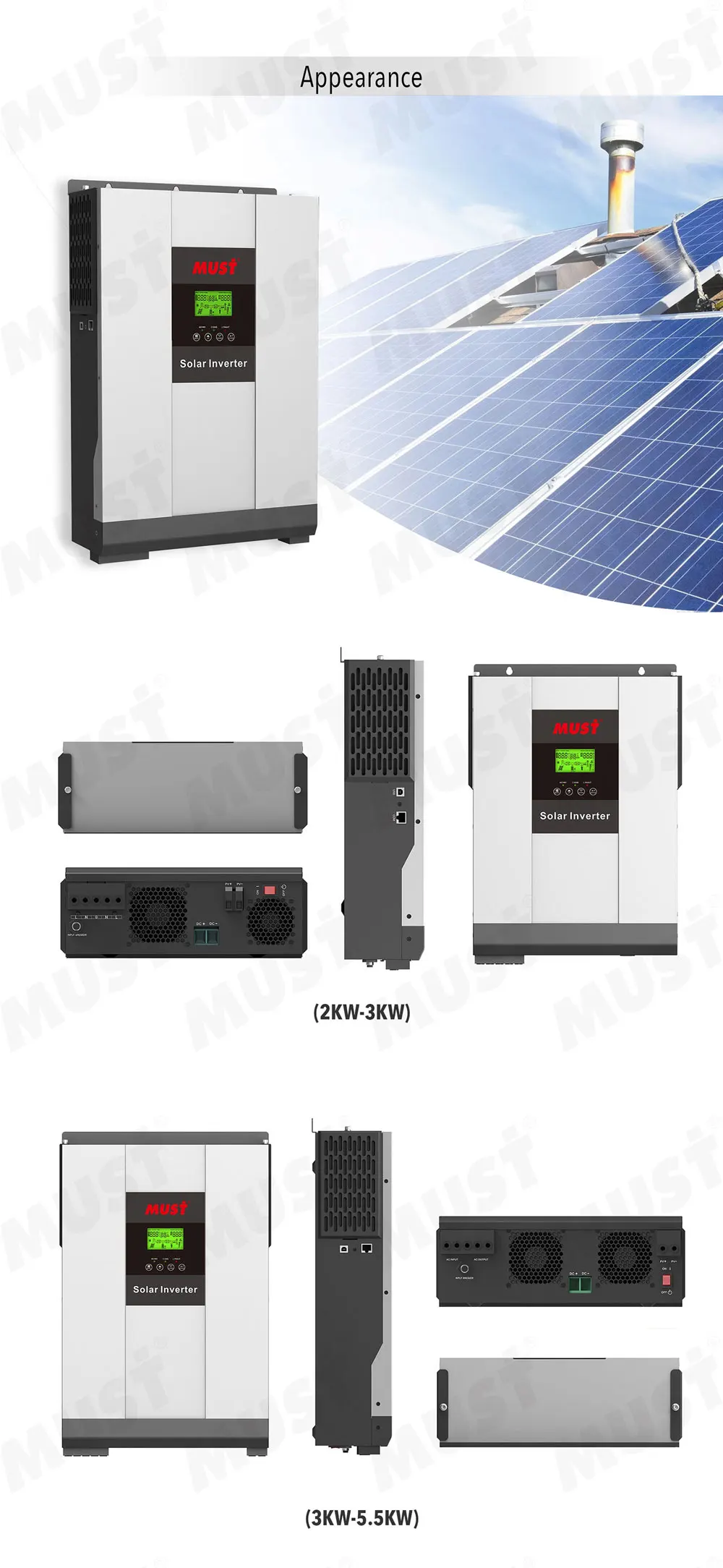

PH1800 Plus Series

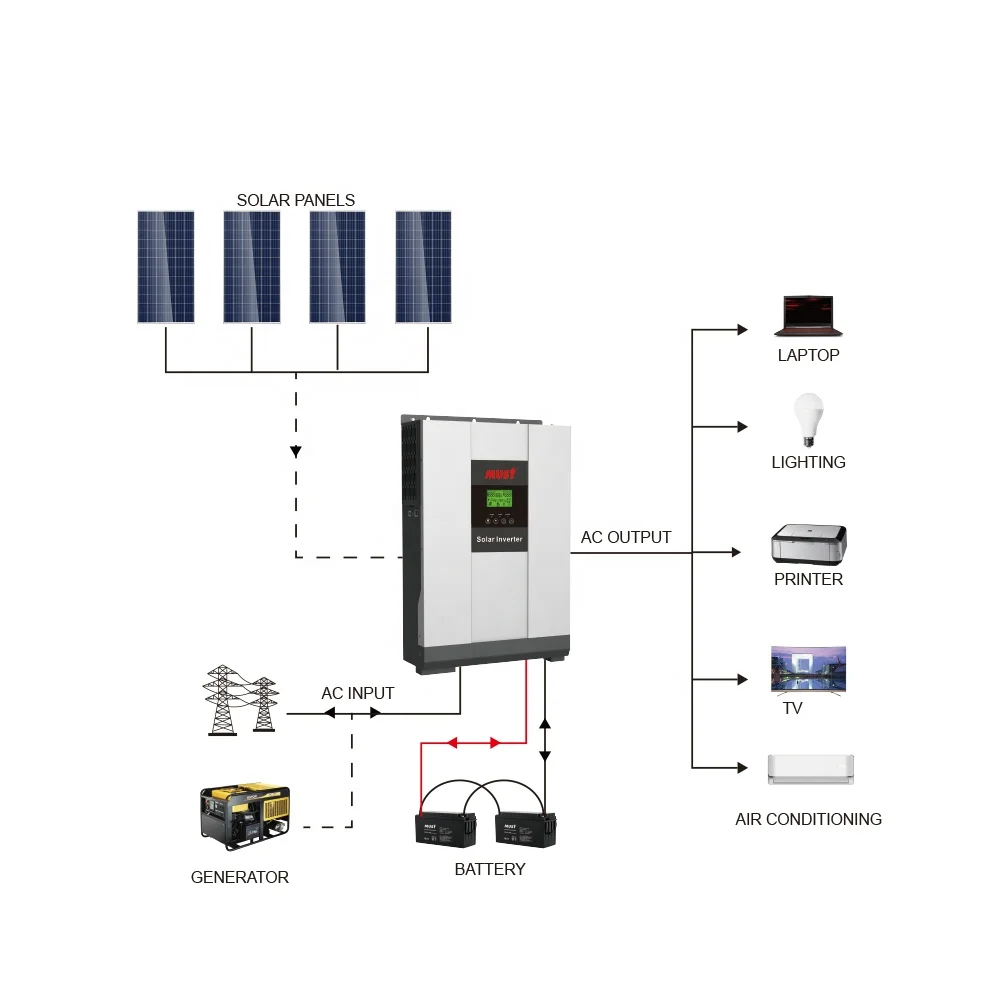

PH1800 Plus series hybrid solar inverter, it can realize self-consumption and feed-in to the grid from solar energy with best solution according to your setting. During the daytime solar power can run your home appliances and if there is extra solar power it will feed-in to the grid or you can choose to save them on the battery to backup when power failure or nighttime.
![](https://ae01.alicdn.com/kf/H5934f0abc3364b4a908a4172f2c558c4m.jpg?width=1000 and amp;height=1573 and amp;hash=2573)
![](https://ae01.alicdn.com/kf/H48eab157cf6e46bdb8736ef633a1e1afn.jpg?width=1000 and amp;height=2168 and amp;hash=3168)
![](https://ae01.alicdn.com/kf/H7f02d74d0e154e88a79c869433690eb1G.jpg?width=1000 and amp;height=1000 and amp;hash=2000)
MODEL
|
PH18-2024 Plus
|
PH18-3024 Plus
|
PH18-3048 Plus
|
PH18-4048 Plus
|
PH18-5048 Plus
|
PH18-5548 Plus
|
||||||
Nominal Battery System Voltage
|
24VDC
|
|
48VDC
|
48VDC
|
|
|
||||||
INVERTER OUTPUT
|
|
|
|
|
|
|
||||||
Rated Power
|
2000W
|
3000W
|
3000W
|
4000W
|
5000W
|
5500W
|
||||||
Surge Power
|
4000W
|
6000W
|
6000W
|
8000W
|
10000W
|
11000W
|
||||||
Waveform
|

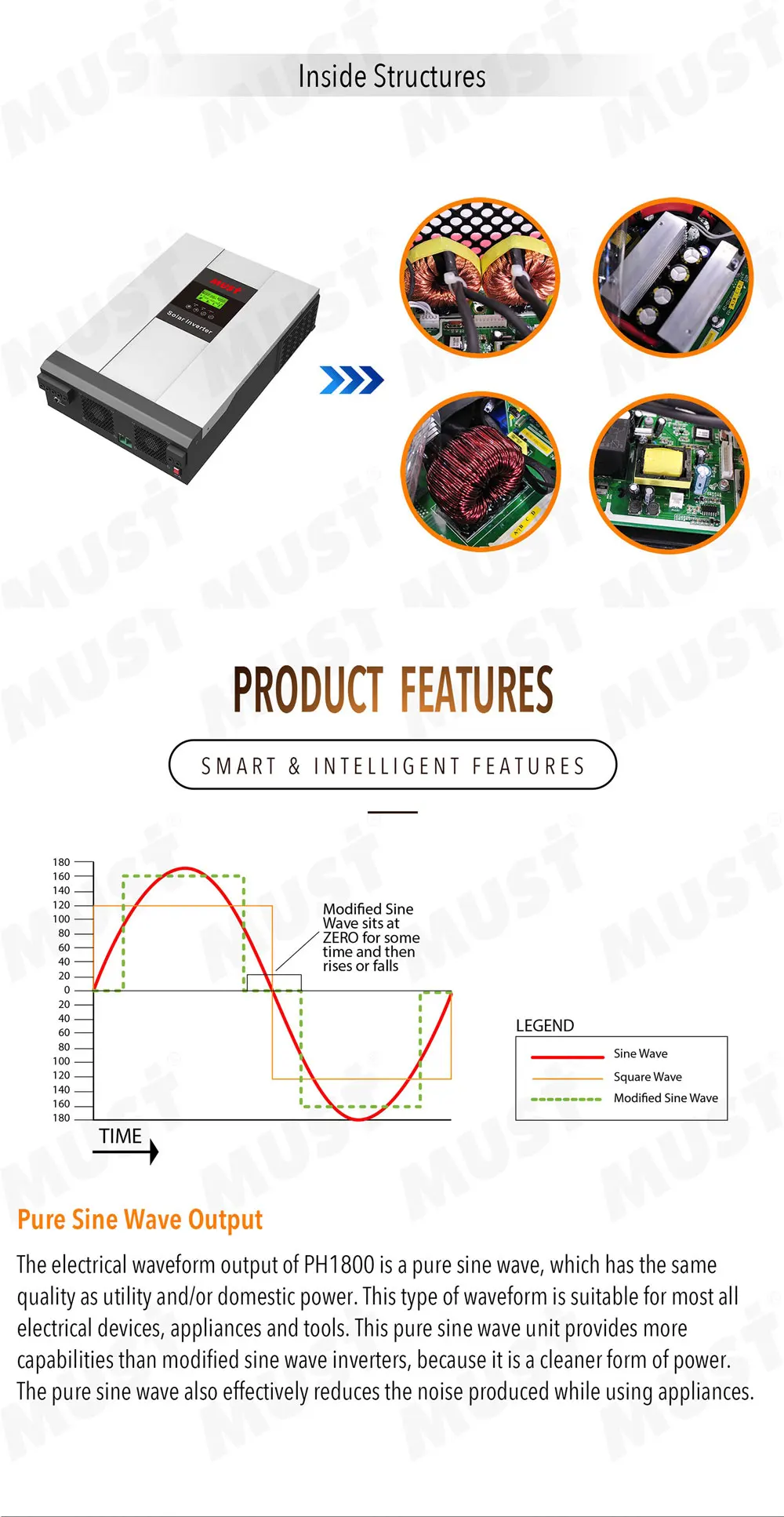

Pure sine wave
|
|
|
|
|
|
||||||
AC Voltage Regulation (Batt.Mode)
|
220VAC ~ 240VAC (Setiing)
|
|
|
|
|
|
||||||
Electric Current
|
8.7A
|
13A
|
|
17.4A
|
21.7A
|
23.9A
|
||||||
Inverter Efficiency (Peak)
|
93%
|
|
|
|
|
|
||||||
Transfer Time
|
10ms(For Personal Computers)20ms(For Home Appliance)
|
|
|
|
|
|
||||||
AC INPUT
|
|
|
|
|
|
|
||||||
Voltage
|
230VAC
|
|
|
|
|
|
||||||
Selectable Voltage Range
|
170~280VAC(For Personal Computers),90~280VAC(For Home Appliances),184~253VAC(VDE)
|
|
|
|
|
|
||||||
Frequency Range
|
50Hz/60Hz (Auto sensing)
|
|
|
|
|
|
||||||
BATTERY
|
|
|
|
|
|
|
||||||
Normal voltage
|
24VDC
|
24VDC
|
48VDC
|
48VDC
|
|
|
||||||
Floating Charge Voltage
|
27.4VDC
|
54.8VDC
|
54.8VDC
|
|
|
|
||||||
Overcharge Protection
|
31VDC
|
30VDC
|
60VDC
|
60VDC
|
|
|
||||||
SOLAR CHARGER and amp; AC CHARGER
|
|
|
|
|
|
|
||||||
Maximum PV Array Open Circuit Voltage
|
145VDC
|
100VDC
|
145VDC
|
145VDC
|
|
|
||||||
PV Array MPPT Voltage Range
|
30∽130VDC
|
|
64∽130VDC
|
|
|
|
||||||
Standby Power Consumption
|
2W
|
|
|
|
|
|
||||||
Maximum PV Array Power
|
625W
|
1250W
|
4000W
|
4000W
|
|
|
||||||
PV Array MPPT Voltage Range
|
2000W
|
|
4000W
|
|
|
|
||||||
Maximum PV Array
|
80A
|
|
|
|
|
|
||||||
Maximum Efficiency
|
98%
|
|
|
|
|
|
||||||
Maximum AC Charge Current
|
60A
|
|
60A
|
60A
|
|
|
||||||
Maximum Charge Current
|
140A
|
|
|
|
|
|
||||||
MECHANICAL SPECIFICATIONS
|
|
|
|
|
|
|
||||||

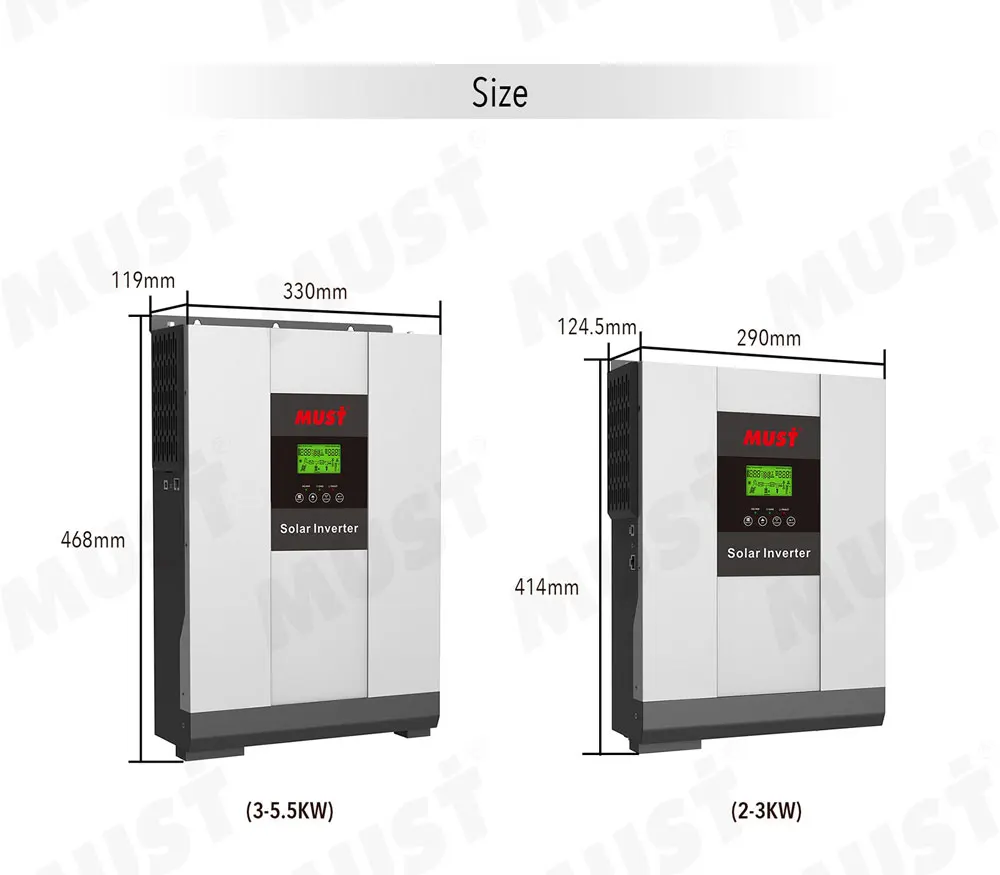

Machine Dimensions (W*H*D)(mm)
|
272*355*100 mm
|
297.5*468*125 mm
|
|
297.5*468*125 mm
|
|
|
||||||
Package Dimensions (W*H*D)(mm)
|
485*393*251
|
638*395*241
|
|
638*395*241
|
|
|
||||||
Net Weight(kg)
|
7.4
|
14
|
|
14
|
|
|
||||||
Gross Weight(kg)
|
9.5
|
16.4
|
|
16.4
|
|
|
||||||
OTHER
|
|
|
|
|
|
|
||||||
Humidity
|
5% to 95% Relative Humidity (Non-condensing)
|
|
|
|
|
|
||||||
Operating Temperature
|
0°C -55°C
|
|
|
|
|
|
||||||
Storage Temperature
|
-15°C -60°C
|
|
|
|
|
|
![](https://ae01.alicdn.com/kf/H15ebe525f45343ea8bd6289f98b485b6K.jpg?width=882 and amp;height=2545 and amp;hash=3427)
![](https://ae01.alicdn.com/kf/H457d74a2f76248b18c3a7dbfb883e25bd.jpg?width=1000 and amp;height=875 and amp;hash=1875)
![](https://ae01.alicdn.com/kf/H457d74a2f76248b18c3a7dbfb883e25bd.jpg?width=1000 and amp;height=875 and amp;hash=1875)
![](https://ae01.alicdn.com/kf/Hda595ab103c446f78a3249c323a3dc6cU.jpg?width=1000 and amp;height=1934 and amp;hash=2934)
![](https://ae01.alicdn.com/kf/H0b42f8738fac4e988b7b8bd9d6edacc9B.jpg?width=1000 and amp;height=967 and amp;hash=1967)
![](https://ae01.alicdn.com/kf/H67454194d4ff42b989e537c232c08a19l.jpg?width=1000 and amp;height=1139 and amp;hash=2139)
![](https://ae01.alicdn.com/kf/H3f00d613673b4192bdf9a7e63ae7bf2c2.jpg?width=1000 and amp;height=2804 and amp;hash=3804)
![](https://ae01.alicdn.com/kf/H80db47b9536b4f9ea06af628726e1e72p.jpg?width=603 and amp;height=404 and amp;hash=1007)
![](https://ae01.alicdn.com/kf/H6810c80921a645cab564163bcaa7d1e0D.jpg?width=745 and amp;height=559 and amp;hash=1304)
![](https://ae01.alicdn.com/kf/H4b07fa5d50f24431a32affbc2fdef355H.jpg?width=1000 and amp;height=2398 and amp;hash=3398)
![](https://ae01.alicdn.com/kf/Hcec5a6450f9c4b47a0ee9737f677123dl.jpg?width=632 and amp;height=339 and amp;hash=971)

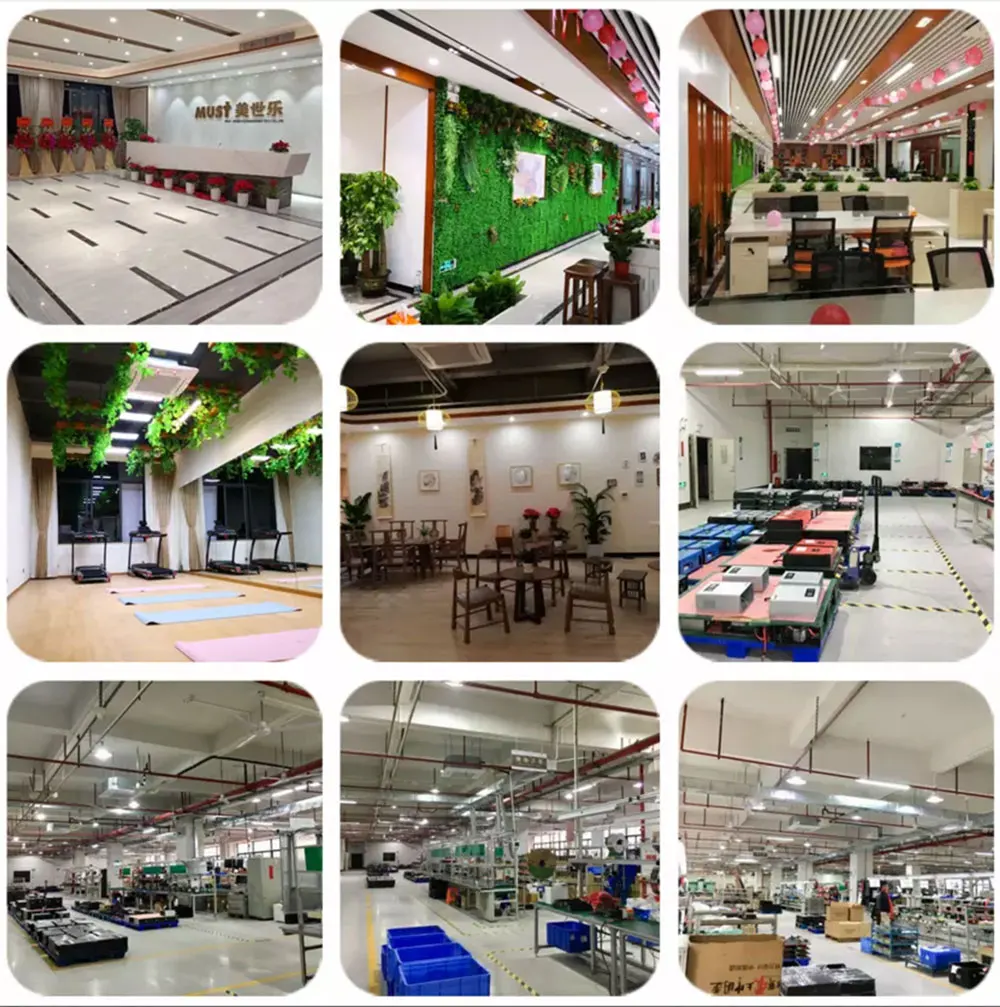

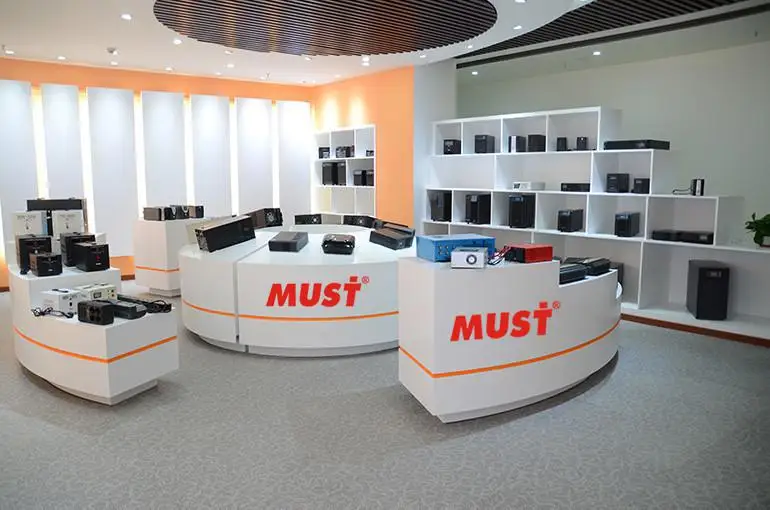

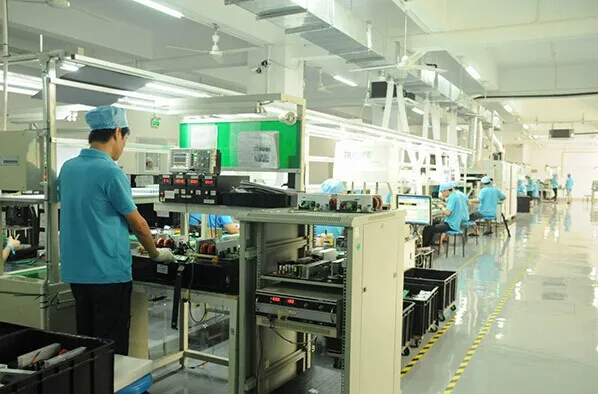

Shenzhen Must Energy Technology Co.,Ltd. is an innovative high technology manufacturer with ISO9001, specialized in R and amp;D, manufacturing and marketing of photovoltaic (PV) inverters/solar inverter, Power Inverter, Solar charge controller, ,Solar battery ,Online UPS ,Line interactive UPS and some other related Solar products. Our innovative solutions for all photovoltaic applications and our unsurpassed service offer our customers worldwide greater independence in meeting their energy needs.
Must Energy established in 1998, with the headquarter in Hongkong. Must Energy products have kinds of certificates ,such as SAA,CE, SONCAP,IEC60950 to meet different market standard. We are one of the authorized”High-Tech enterprises” by China Government.
![](https://ae01.alicdn.com/kf/Hd5d55faf28324361860ac1d72ec3e55de.jpg?width=770 and amp;height=510 and amp;hash=1280)
![](https://ae01.alicdn.com/kf/H0fab8498bb074ff6ba148ebc8585d575h.jpg?width=598 and amp;height=394 and amp;hash=992)
![](https://ae01.alicdn.com/kf/H62521cfbc04e4fd5ba50b955646cbb9bp.jpg?width=1000 and amp;height=1007 and amp;hash=2007)
![](https://ae01.alicdn.com/kf/H5f25aeda53534f909fe1b2ff5b0e9dee9.jpg?width=1000 and amp;height=1622 and amp;hash=2622)
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What’s the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: One year warranty on Must-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Samples and OEM, Warranty and After-Sale Service:
- Welcome Solar Power Inverter Sample Test
- OEM Welcomed
- Warranty:1 Year
- After-Sale Service: 24 Hour-Hot Line for Consultacncy and Technical Support
