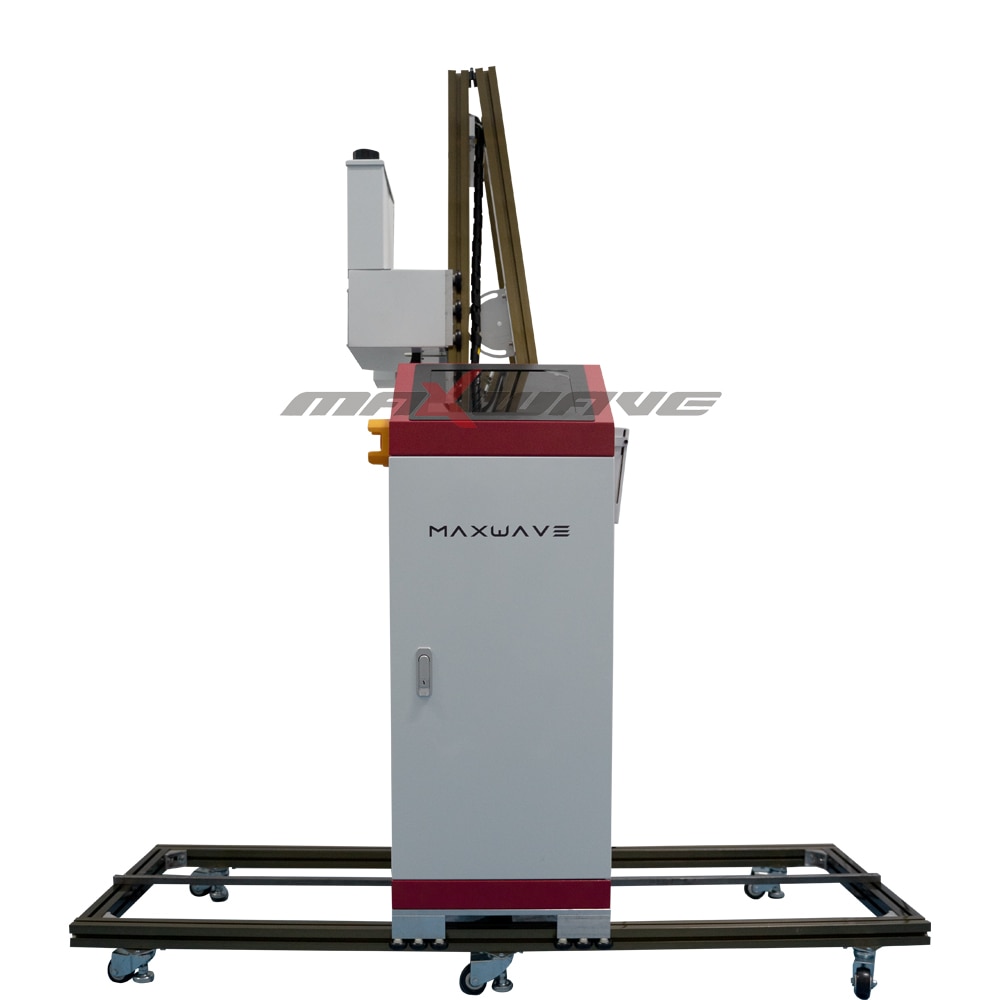

In order to meet customer demand for the majority of the wide format printing, Maxwaver Laser launched a new horizontal wall printer. This direct to wall inkjet printer adopts the imported piezoelectric nozzle in Japan. The painting is clear and bright, the design of the machine is smooth, the machine body is removable, portable and easy to use. This machine is applicable to a variety of wall painting, such as wall putty powder, paint the walls, tile walls, diatom mud wall, canvas, paper etc..

MW-UP200T parameters

Printing software

Urtraprint professional printing software

Using ink

Special environmental protection organic water-based ink (waterproof, anti stripping)

Control mode

Wired / wireless printing

Transportation

(foldable)

Power consumption

No load 20W, maximum 250w

Surface tracking

Hyperbolic banner sensor, up and down bidirectional induction

Ink supply system

Positive pressure system single color single supply, 4-color ink bin one body

Print size

2.5Height width, more than 2 meters can be seamless splicing

Construction noise

Standby and lt; 20db, drawing and lt; 70db

Supporting pictures

Photos taken by mobile phone / camera and Internet

Power requirements

Household electricity: 220 VAC or 380 VAC

Applicable media

White wall, ceramic tile, glass, metal, acrylic, paper, etc

Format of national film

include PSD.CDR, JPG, JPEG, PNG, BMP, tiff, EPS, AI and PDF

Color drawing technology

Micro piezoelectricity spray technology, variable ink drop, high tolerance error emerging technology, automatic memory recovery

technology for construction interruption

Print Resolution

360x720dpi/720x1080dpi/720x1440dpi/1080x1440dpi/1440x2880dpi

Operating environment

20 ° c-50 ° C (- 4f-122f), 10% – 70% relative humidity, non condensing state

Storage environment

21c-5o ° C (- 22f-140 ° f), 10% – 70% relative humidity, non condensing state

operating platform

Windows xP/7/8/9/10

Certification qualification

Green environmental protection certification, national standard test qualified (GB 18582-2001, gbt9756-2001), CE certification

Printing speed

PASS

M2 / h (M 2/ h)

Fast mode

A

15

Production mode

B

10

Quality model

C

7

HD mode

D

5

External dimension

Machine scale mm); length 700* width 300* height 2600

Package size (mm): length 800*width 460*height 2700

Machine weight

Machine 60kg (fuselage 30kg + 3 guide rails 30kg)

Gross weight 115KG in wooden case

Key components

Nozzle specification

Epson 10 generation high precision printing nozzle 2

Electric machinery

3 Imported intelligent servo motor + reducer

main board

8Core high speed CPU, 4GB memory, high speed USB 1o

Wall detection

2Nano distance detectors

level

Imported precision level

Power failure alarm

Real time power failure alarm system

UPS power supply

Super uninterruptible power supply with 3 hours of power failure

Laser positioningLaser positioning

Precise infrared laser positioning system

Shaft guide

High strength precision railway track, 4 sections, 1.5m, 6m in total

Shaft guide

Imported linear drive module

Ink supply technology

Positive pressure system ink supply, need to draw ink

Gift Gallery

Free 2T Library

Language

Chinese / English (other languages can be customized)

Note: the above parameters are design parameters. In case of any difference, the actual use efficiency of the equipment shall prevail.

1. This direct to wall inkjet printer adopts imported Japan piezoelectric nozzles.

2. This horizontal wall printer use the Perfect Laser wall painting specific ink, no need to heat at minus 10 ℃ to zero 60 ℃ in the normal work environment, no ice, and constantly inking.

3. Single base color, one-way ink supply channel. Even for the system of automatic pressure supply, 340ml pigment library, multi-color one, easy to take, and the screen of the horizontal wall printer is clear and bright.

4. The body design of horizontal wall printer lines smooth, without a large chassis, the program software all integrated to facilitate the demolition and handling, to work under any environment.

5. This wall mural printer printing resolution is of 360 * 720dpi or 720 * 720dpi or 720 * 1080dpi.

6. Inkjet screen actual size of the wide format printing machine: high 2100mm wide 1700mm, wide more than 1700mm of the screen need to do seamless stitching, seamless splicing will not affect the overall effect of the screen.
