3D printer parts Titan Step motor for Titan Extruder 3D printer extruder 42x42x23mm
Product name: Titan step motor

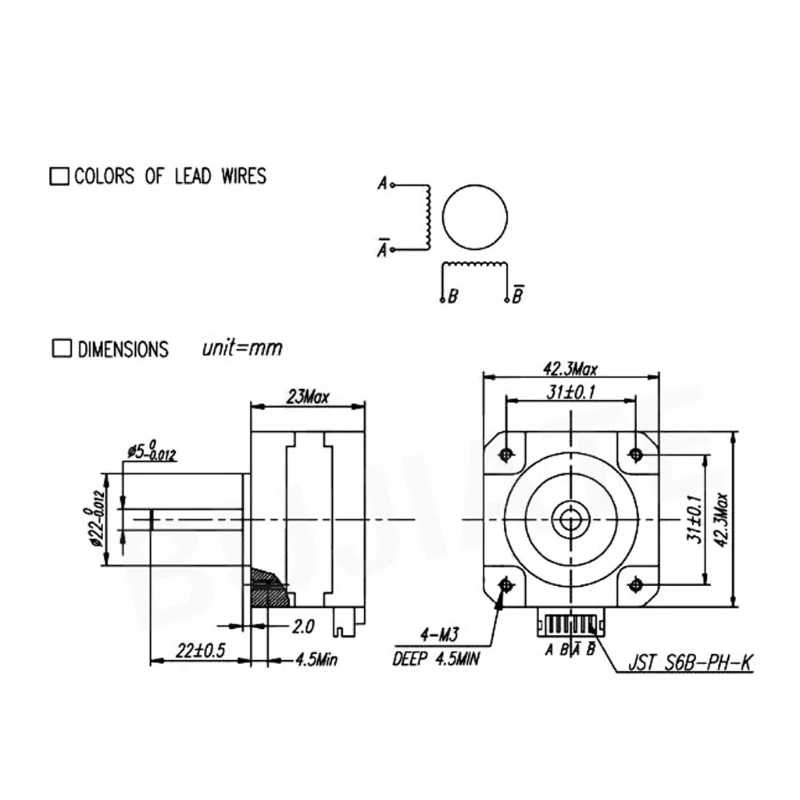

Size:42x42x23mm
Phase: 2 Phase
Voltage: 12V
Current: 0.8A/Phase
Resistance: 4.0 ± 10%Ω/Phase
Inductance: 3.2 ± 20% mH/Phase
Holding Torque: 16 N.cm
Insulation Class: B
Step Angle: 1.8±5% /STEP
Warning:
Make sure the motor connect to a constant current or chopper drive controller before you test motor.
Connecting the motor directly to a power supply will destroy the motor.
Packing list:

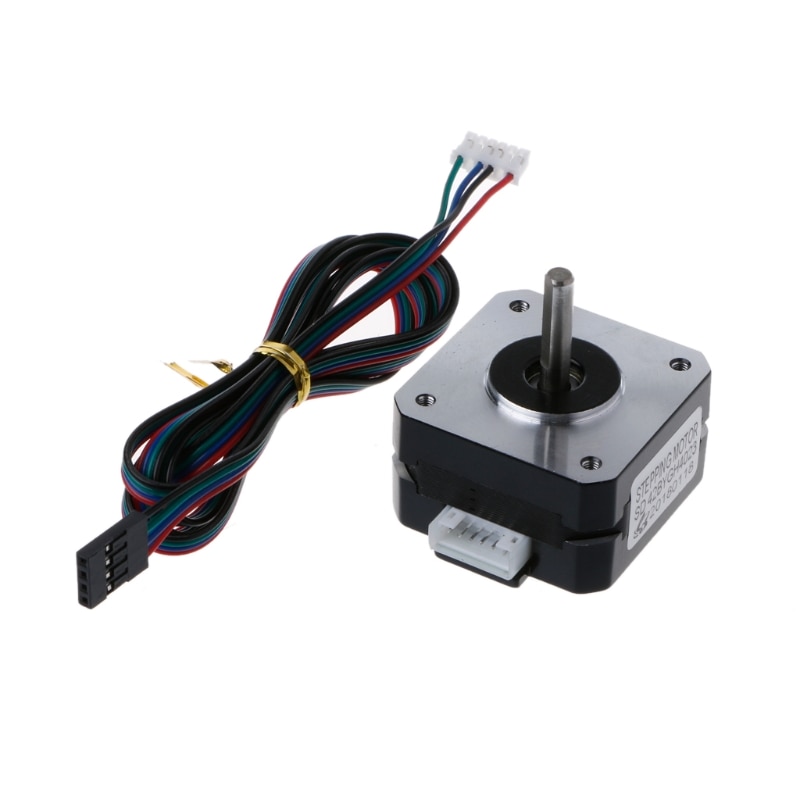

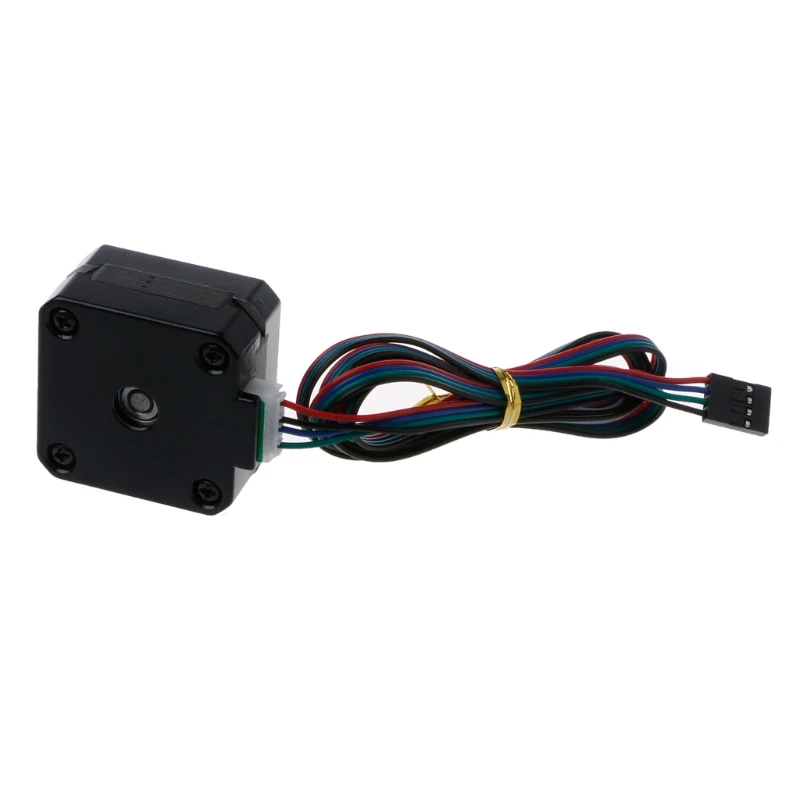

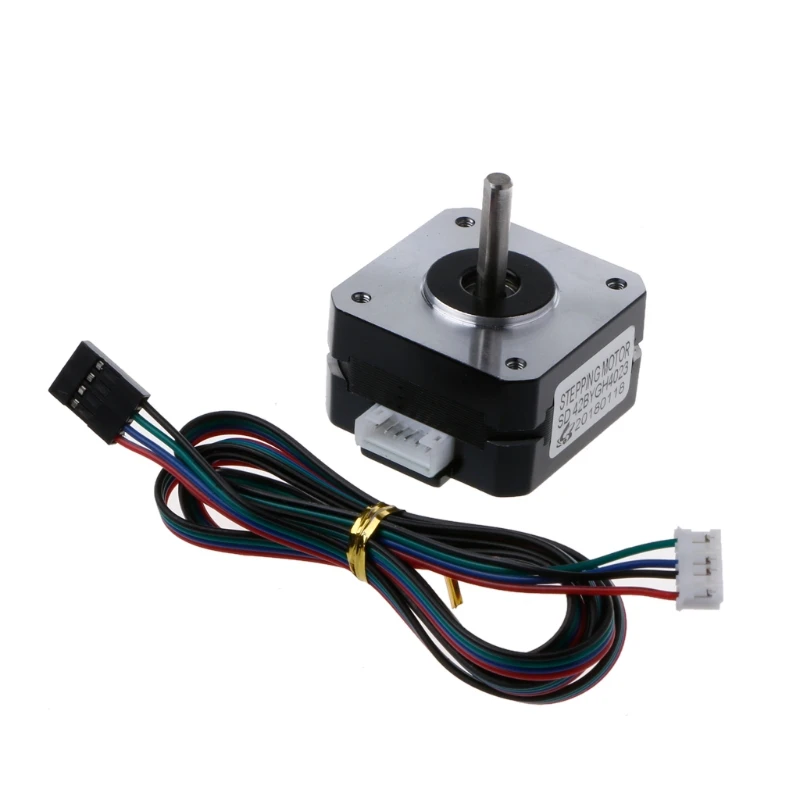

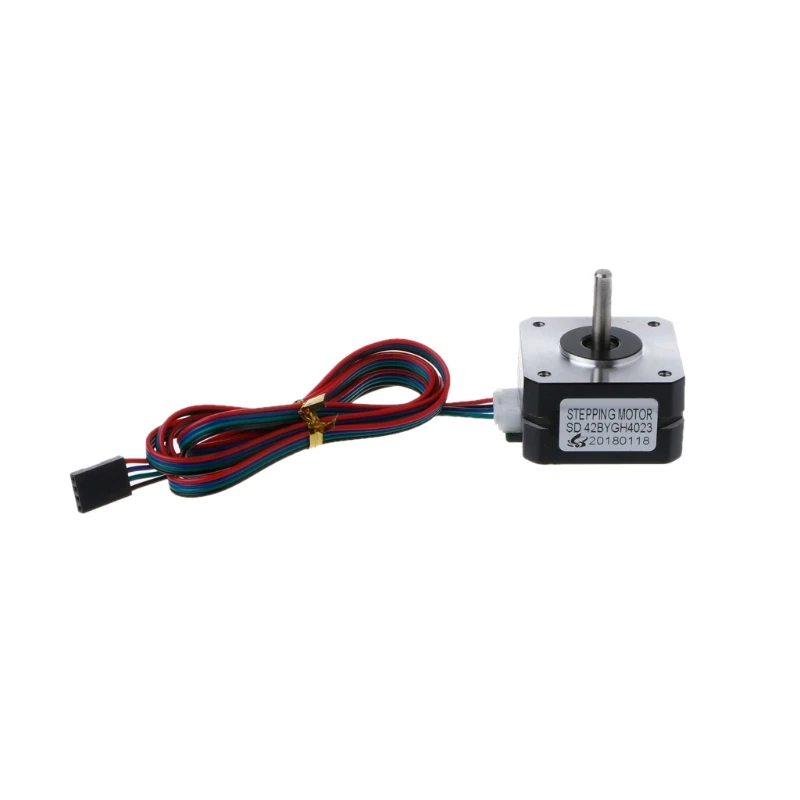

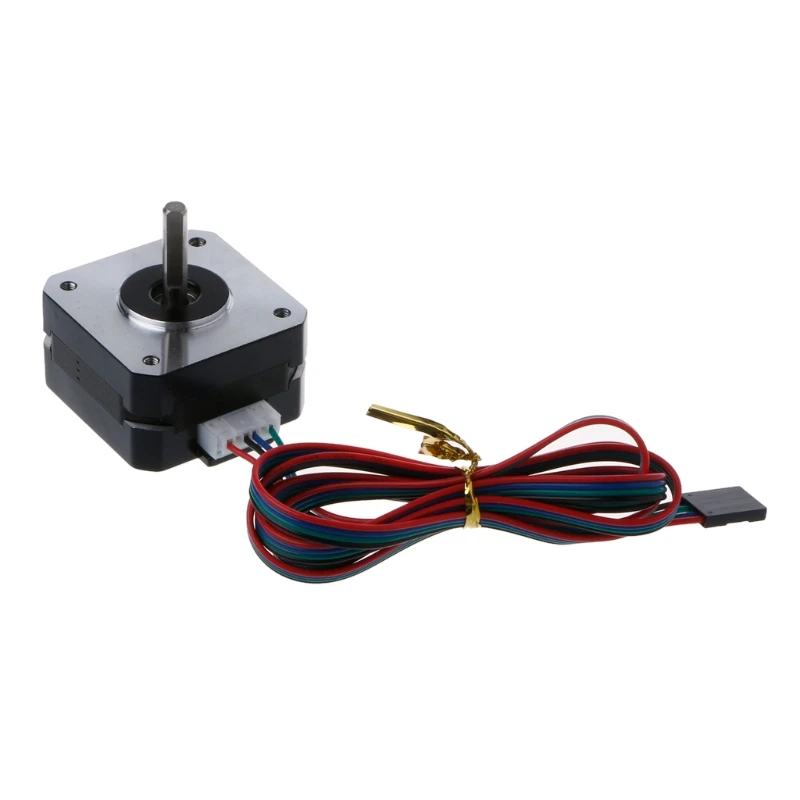

1 x Titan step motor
1 x 1m Cable
