Brand |
JOYING LIANG |
Switch Type |

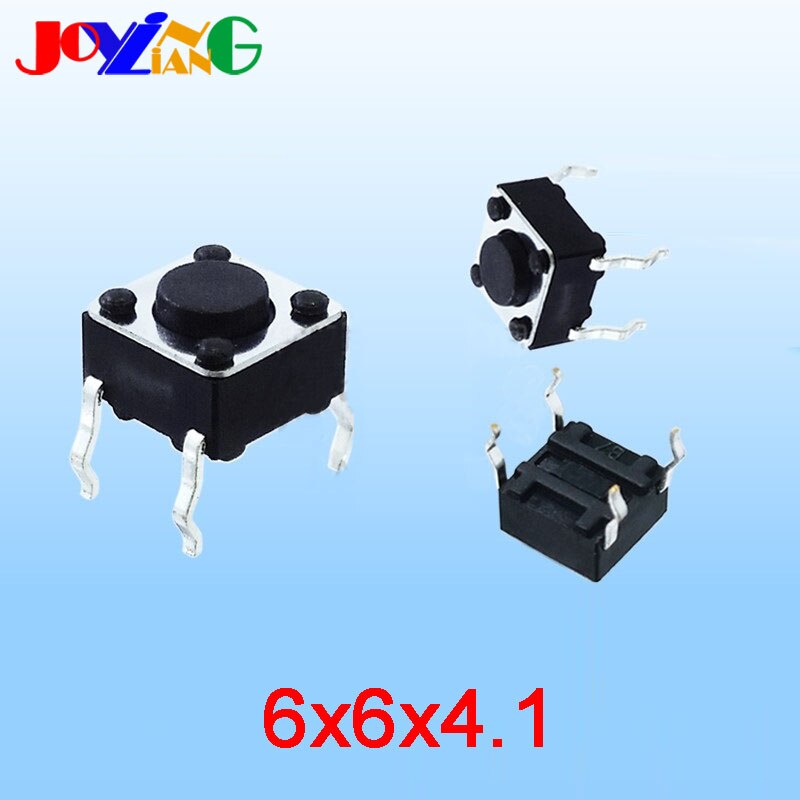

6×6 Switch / Height 4.1mm |
Temperature |
-30 ~+85℃ |
Withstand Voltage |
AC250V (50Hz) For 1 min |
Rated Load |
DC12V 50mA |
Actuating Force |
A:130gf B:180gf C:250gf |
Contact Resistance |
100mΩ Max. |
Life |
100,000 Times/ 300,000 Times |
Insulation Resistance |
100MΩ min AC 110V DC |
