TCCT  Automatic detergent Piston filling machine is  designed into diving filler,piston model,it not only  can fill liquid,foam products,but  aslo sticky paste.,due to  customized filler  according to requests.click it to check the best price.it is from Shanghai packing machinery factory,with ISO standard,CE certificate and 316L material.

Production speed: 600-800bottles/h

Filling Volume: 1000-4000ml

Equipment of the filling line: 6 nozzles filling machine, capping machine,

and curved belt.

Power: 380V 50HZ

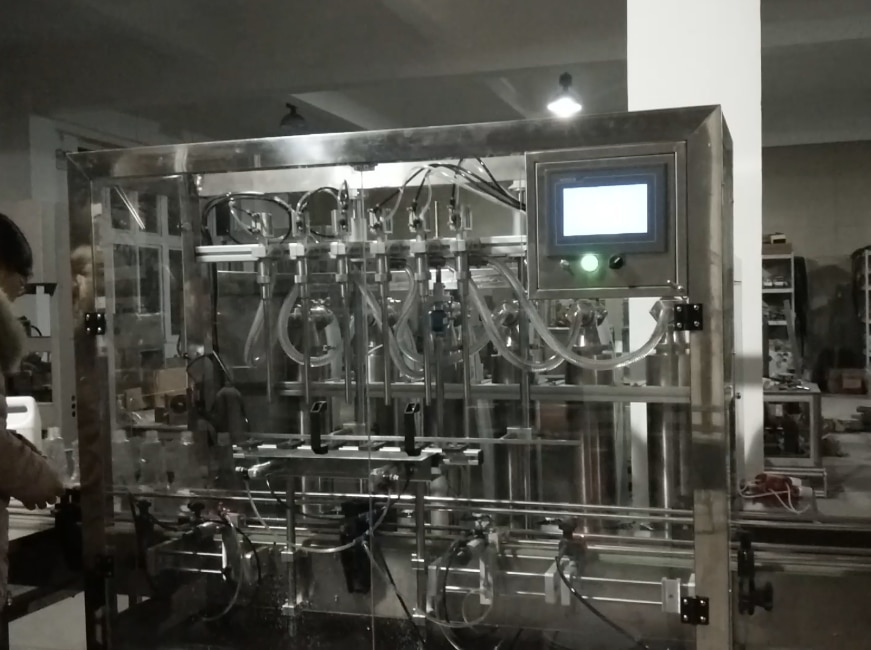

1 Six nozzles filling machine

Main parts:(1)rack (2)filling head (3)filling vat (4)conveyor(5)bottle blocking equipment(6)photoelectrical detector (7)motor (8)reducer (9) chain (10) drive organ(11) transfer line etc.

The filling head is 6 heads,single line conveying.(the number of heads is customized),to meet production requirement,and wont damage machine because of raising speed.Adopts piston pump tee joint structure. Using cylinder to fix quantity, and filling under the pressure,exact filling,and high speed.

YG-6 Automatic volumetric linear filling and capping machine is new generation utility product,developed from most advanced technology to suit to market demand.The machine adopts SU316L volumetric injection pump,auto cap orienting and capping together.Economic utility,low plant cover,the machine is widely applied to liquid packing in the market of pharmaceutical,pesticide,chemical,foodstuff,cosmetic etc,meet to the requirement of GMP.

Feature:

1Adopts volumetric injection pump to fill, suitable for all kinds of sticky liquid,high precision; The structure of pump adopts shortcut dismantling organ,convenient to wash,sterilize.

2The piston ring of volumetric injection pump use different material of silicone, polyflon or other kinds according to liquid characteristic, use ceramic pump in special industry.

3PLC control system, frequency conversion adjusting speed, high degree automation.

4No bottle ,no fill, auto count the quantity.

5Filling quantity of all pumps is adjusted in a lump, minim adjustable for each pump. Easy and quick operate.

6  The height of filling nozzles and the distance between them are adjustable.

7   Filling head is equipped with anti-dropping equipment.

8  The whole machine is suitable bottles in different size,easy adjusting,and can be finished in short time.

9The whole machine meets GMP requirement.

Main Parameter:
