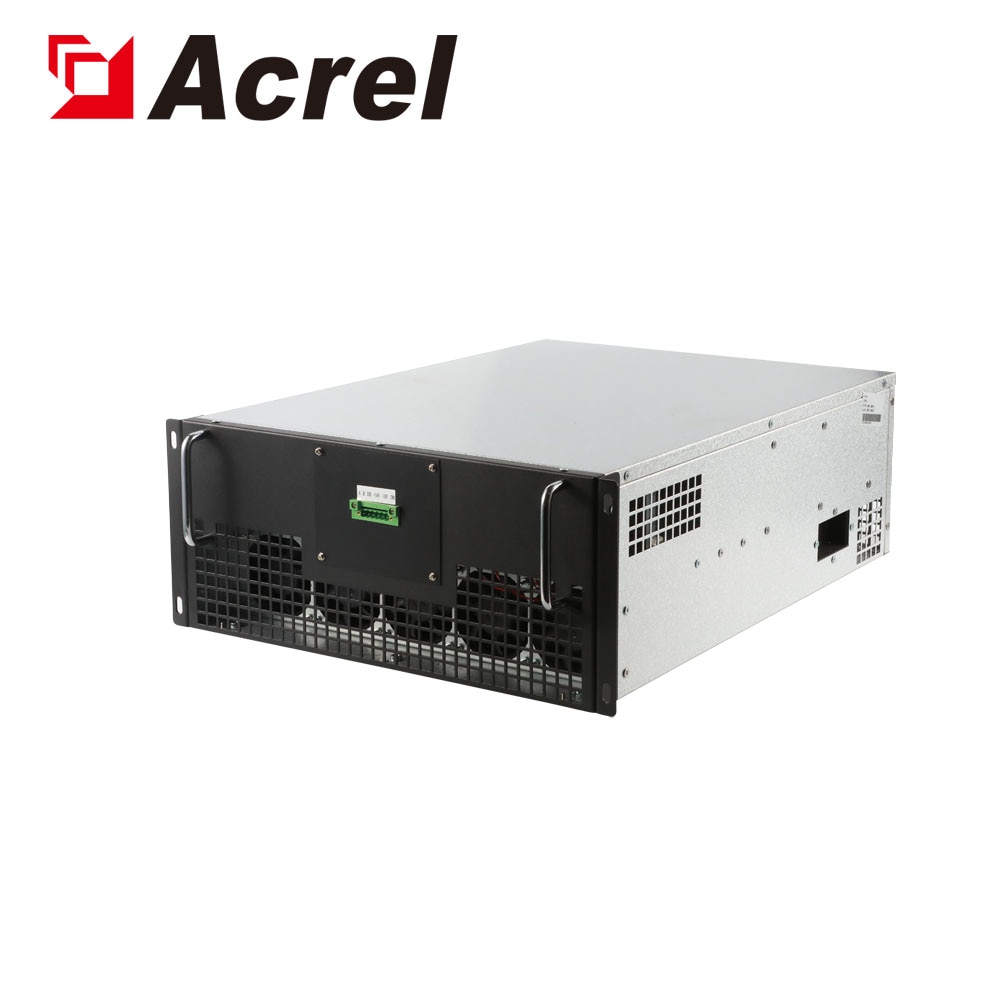

Acrel 100kvar SVG Static Var Generator modular for power quality

Acrel 100kvar SVG Static Var Generator modular for power quality

Technical Parameters
Rated voltage
380V±15%
Rated frequency
50Hz±2%
Comensation method
Linear compensation
Response time
Full response time≤5ms, Instantaneous time≤100μs
Switching frequency
20kHz
Compensation effect
≥0.99,Compensates for capacitive reacitive reactive and inductive reactive
Self-loss
≤2%
Efficiency
≥98%
Total harmonic compensation rate
≥97%
Noise
≤60dB
Protection level
IP20
Communication interface
RS485, Ethernet, Communication function optional
Module capacity
30Kvar, 50Kvar, 75Kvar, 100Kvar, The same models could be directly connected in parallel
Cooling method
Forced air cooling
