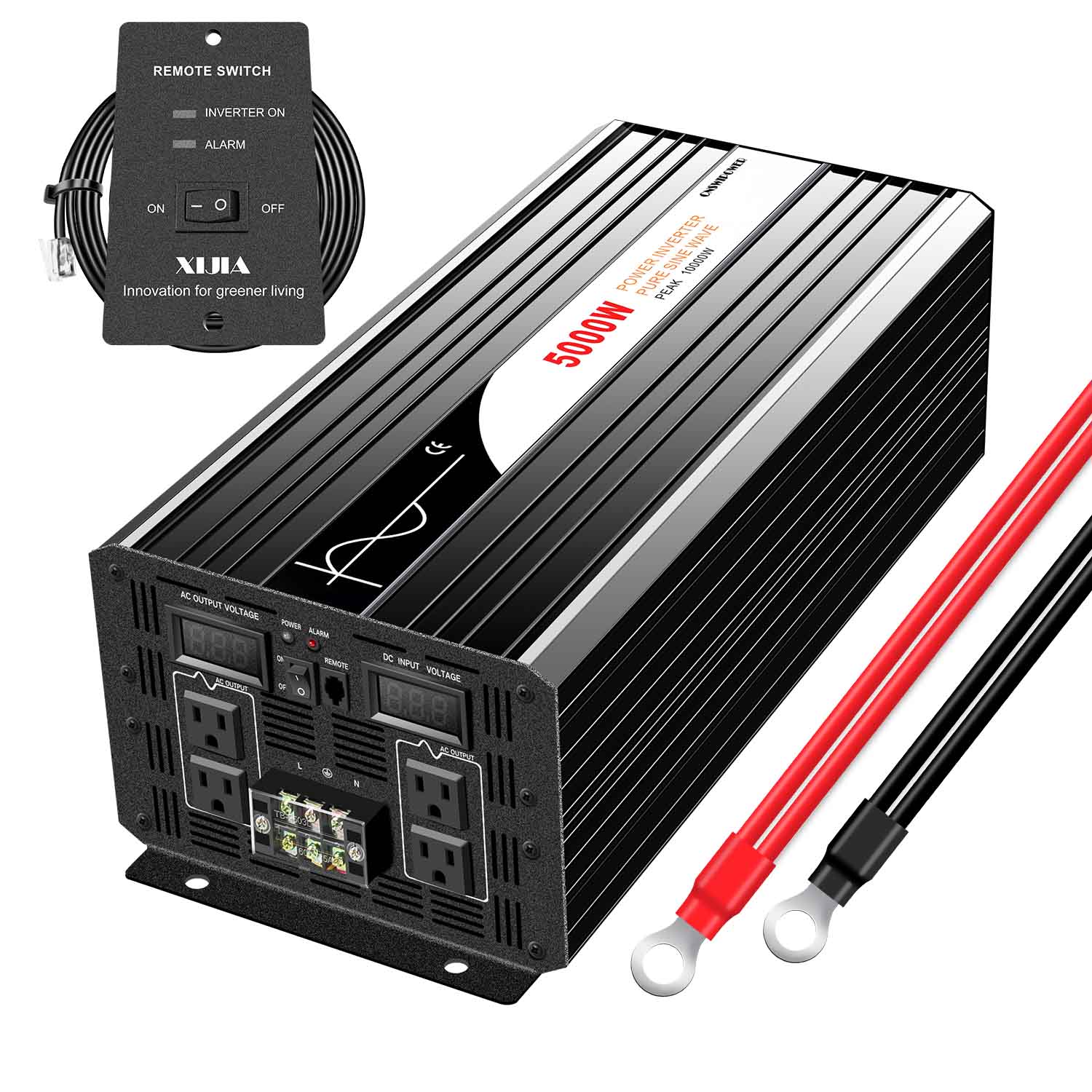

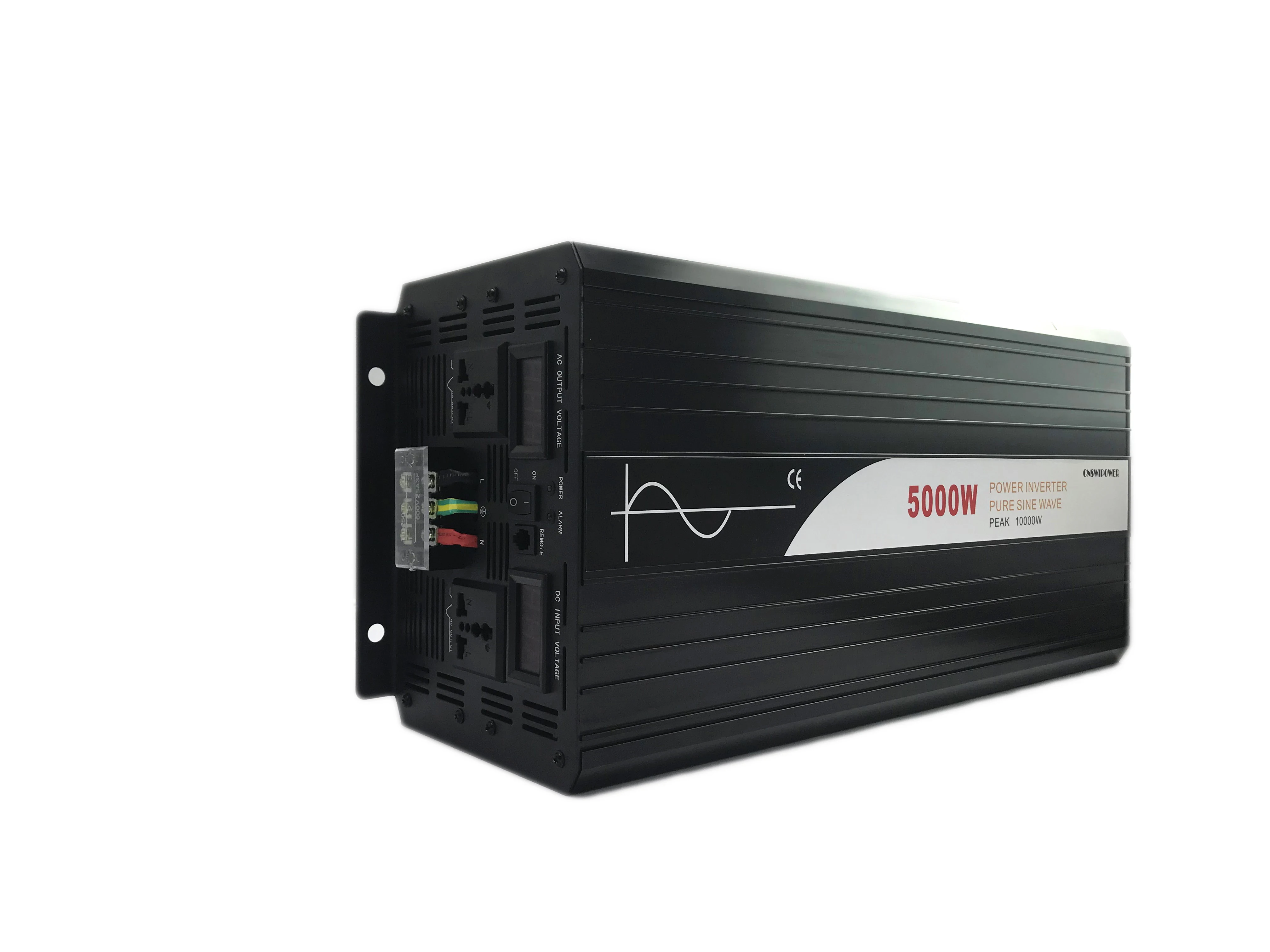

Product Description
Specification
|
Model
|
sp12/110-1500L
|
sp24/110-1500L
|
sp48/110-1500L
|
||
|
Continuous Power
|
5000W
|
|
|
||
|
Surge Power
|
10000W
|
|
|
||
|
Frequency
|
50HZ±0.5HZ or 60HZ±0.5HZ
|
|
|
||
|
Wave Form
|
Pure Sine Wave
|
|
|
||
|
AC Regulation
|
THD and lt;3%(Linear Load)
|
|
|
||
|
Output Efficiency
|
92%
|
|
|
||
|
DC Voltage
|
DC12V
|
DC24V
|
DC48V
|
||
|
AC Voltage
|
100VAC or 110VAC or 120VAC ±5%
|
|
|
||
|
No Load Current Draw
|
3.6A
|
1.8A
|
0.9A
|
||
|
DC Voltage Range
|
10-15.5V
|
20-31V
|
40-61V
|
||
|
Low Voltage Alarm
|
10.5±0.5V
|
21±0.5V
|
42±1V
|
||
|
Low Voltage Shut Down
|
10±0.5V
|
20±0.5V
|
40±1V
|
||
|
Over Voltage Shut Down
|
15.5±0.5V
|
31±0.5V
|
61±1V
|
||
|
Low Voltage Recovery
|
13±0.5V
|
24±0.5V
|
48±1V
|
||
|
Over Voltage Recovery
|
14.8V±0.5V
|
29V±0.5V
|
59V±1V
|
||
|
Protection |
Low Voltage/Over Voltage
|
LED Alarm and Automatic Recovery.
|
|
||
|
|
Overload
|
LED Alarm and Automatic Recovery.
|
|
||
|
|
Over Temperature
|
LED Alarm and Automatic Recovery.
|
|
||
|
|
Short Circuit
|
LED Alarm and Automatic Recovery.
|
|
||
|
Working Temperature
|
-10°- +50°
|
|
|
||
|
Storage Temperature
|
-30°- +70°
|
|
|
||

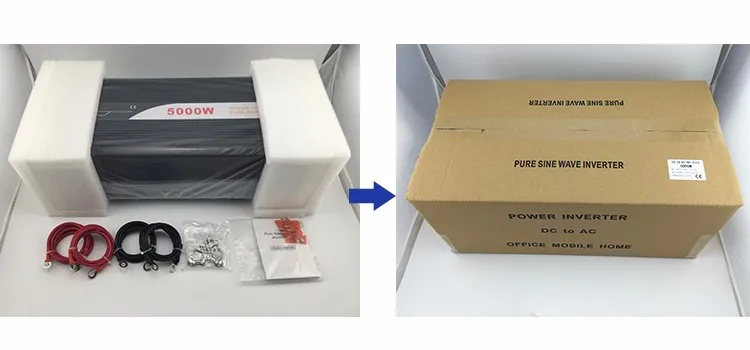

Packing and amp; Delivery
Package Size:580*330*280
Nw/Gw:11.5/13.5KG
Qty/carton:1
Warranty:1years

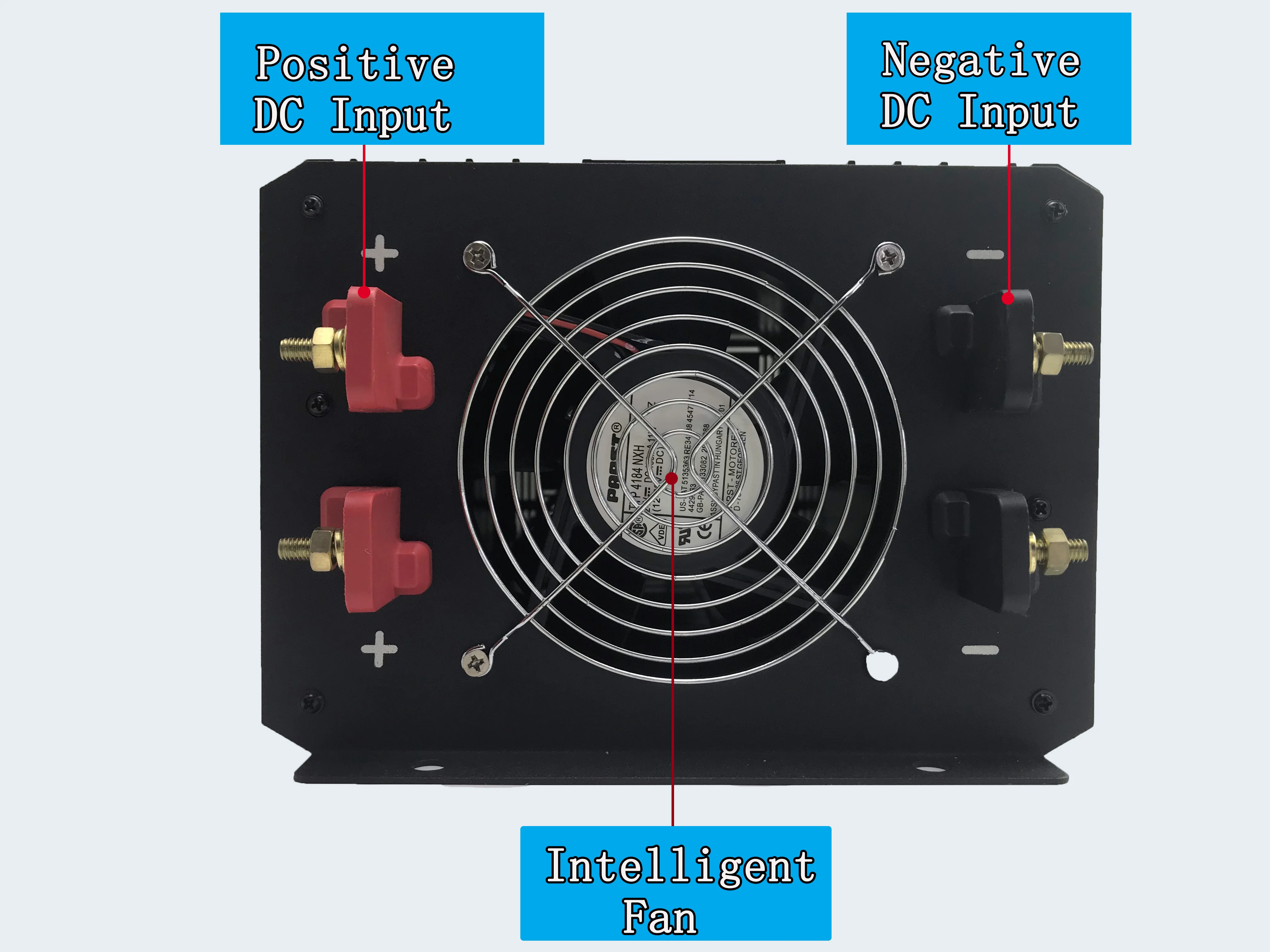

Cooling way: intelliget cooling way

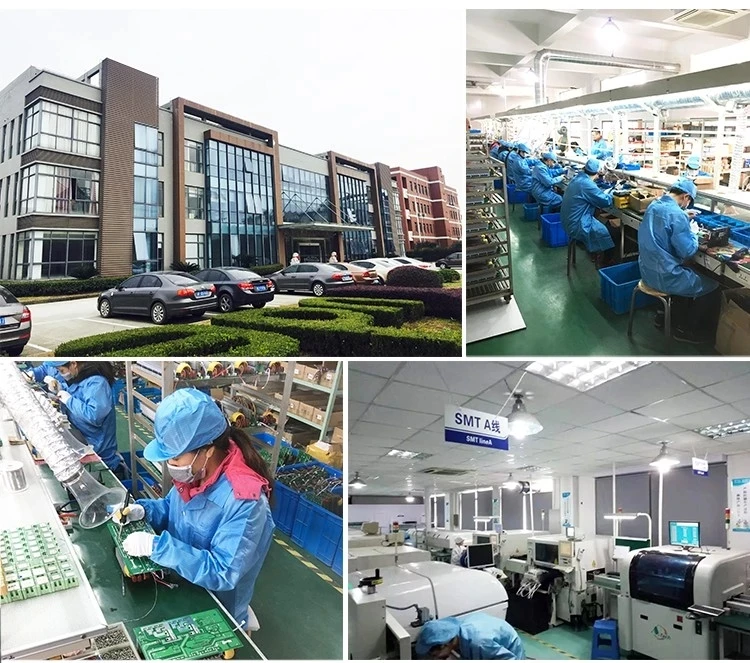

Company Profile
Yueqing Swipower Co.,Ltd. specializes in producing 19 rack mount inverter, pure sine wave inverter, pure sinewave inverter bypass, pure sine wave inverter with charger. Quality trusted by the user, the current product sales throughout the country most of the provinces. Through independent research and development to master the high-frequency switching power supply system is the core technology, is the few customization to meet customer requirements, to provide complete integrated power system products and solutions for businesses.
FAQ
How to choose suitable inverter ?
If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and
capacitive loads, we recommend using pure sine wave inverter. For example: fans, precision instruments, air conditioner, fridge, coffee machine, computer, and so on. Modified wave can be started with some inductive loads, but effect for load using life, because capacitive loads and inductive loads need highquality power. How do I choose the size of the inverter ?
Different types of load demand for power are different. You can view the load power values to determine the size of the inverter. Notice: resistive load: you can choose the same power as the load. Capacitive loads: according to the load, you can choose 2-5times power. Inductive loads: according to the load, you can choose 4-7 times power.How connection between batteries and an inverter ?
We usually believe that cables connecting battery terminal to inverter shorter is better. If you are just standard cable should be less than 0.5M, but should correspond to the polarity of the batteries and inverter-side outside. If you want to lengthen the distance between battery and inverter, please contact us and we will calculate the recommended cable size and length. Due to long distances using a cable connection, there will be a reduced voltage, which means that the inverter voltage would be far below the battery terminal voltage, this inverter will appear under voltage alarm conditions. How to calculate the load of working hours requires configuration of the battery size ?
We will usually have a formula to calculate, but it is not hundred percent accurate, because there is also the battery’s
condition, the old batteries have some loss, so this is only a reference value: Work hours = battery capacity * battery voltage*0.8/load power (H= AH*V*0.8/W)
