3D intelligent auto direct to wall inkjet printer large format printers

3D intelligent auto direct to wall inkjet printer large format printers

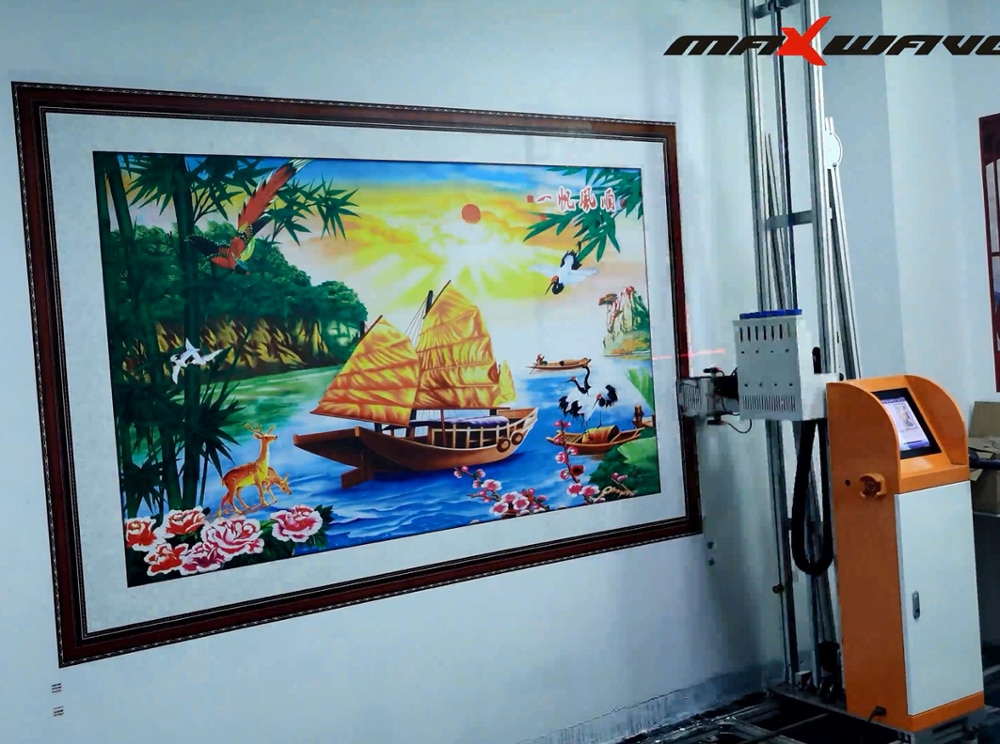

In order to meet customer demand for the majority of the wide format printing, Maxwaver Laser launched a new horizontal wall printer. This direct to wall inkjet printer adopts the imported piezoelectric nozzle in Japan. The painting is clear and bright, the design of the machine is smooth, the machine body is removable, portable and easy to use. This machine is applicable to a variety of wall painting, such as wall putty powder, paint the walls, tile walls, diatom mud wall, canvas, paper etc..

MW-UP200T

Product name
Vertical wall color painting machine
Machine size
2500*750*2550 ( mm )
Packaging size
1000*1000*2500 ( mm )
Printing mode
Inkjet / micro piezoelectric injection technology

Printing range
Maximum 2200 (wide) , unlimited (long) mm

Print head
EPSON DX5/DX7 /TX800
Number of print head
1-2PCS

Ink

Environmental wall special ink
Resolution
360*720* 1080*1440 dpi
RIP software
Uitra Print/PotoPrint/GMG



Printing speed

Sketch mode :  7㎡/hr

Production mode :  5㎡/hr
High Precision mode :  4㎡/hr
Ink color
CMYK
Supply mode
Siphon constant pressure Ink supply system
Central control computer
Supports installation of Machine Control computer
Transmission interface
USB-2.0/3.0

Picture format
TIFF/JPEG/AI/PDF/PSD et al.

Computer system
Win-Xp/win7/win10 32 or 64 bit system

Input voltage
AC-220V (+ 10%) 50/60Hz

Peak power
Approximate 400W
G.W/CBM/PACKAGES
155KGS /1.8 CMB, 2 wooden cases, ship by sea


Media

Inner and outer wall putty wall, latex paint wall, paper, canvas, wallpaper,

Painted glaze, shell powder, colored lacquer, etc.
Environmental requirements
Temperature: 5 ~ 40 °C (optimum 25 °C + 5),

Humidity: 20 ~75%RH (no condensation)





1. This direct to wall inkjet printer adopts imported Japan piezoelectric nozzles.

2. This horizontal wall printer use the Perfect Laser wall painting specific ink, no need to heat at minus 10 ℃ to zero 60 ℃ in the normal work environment, no ice, and constantly inking.

3. Single base color, one-way ink supply channel. Even for the system of automatic pressure supply, 340ml pigment library, multi-color one, easy to take, and the screen of the horizontal wall printer is clear and bright.

4. The body design of horizontal wall printer lines smooth, without a large chassis, the program software all integrated to facilitate the demolition and handling, to work under any environment.

5. This wall mural printer printing resolution is of 360 * 720dpi or 720 * 720dpi or 720 * 1080dpi.

6. Inkjet screen actual size of the wide format printing machine: high 2100mm wide 1700mm, wide more than 1700mm of the screen need to do seamless stitching, seamless splicing will not affect the overall effect of the screen.
