Note:The same product /weight to different country/zone with different shipping freight,so please consult us.

Attention:Before you paying the order, you should see the technical parameter carefully and confirm the inverter / automatic voltage regulator / stabilizer / solar controller / transformer / uninterrupted power supplier (UPS) can meet your requirement and solve your problem.Besides, tell me the specification and parameters of what you want to buy; the express address to calculate the shipping freight; the input voltage range and rated output voltage.Inverter : if you want to buy, please tell us the below parameters:Where do you need the inverter used for ?What`s the type of the load and the total load capacity ? (xxx W /xxx KW)What`s the input DC voltage ? (12V? 24V? or 48V?)What`s the outputAC voltage do you need?(220V?110V?120V or 120V/240V complementary ? )What`s the kind of your battery ? (Lead-acid? Colloidal? Lithium or others) If you used the Lithium battery, please share the battery parameters with us to matching the inverter, such as the Rated voltage, Over voltage and amp; Under voltage protecting parameter. unless you will buy it from us.What`s the type of your charging power ? (Utility power ? Solar Power ? Or the Generator Power ? )If you have the solar power, do you need the related MPPT ? If yes, please share the total capacity of solar panels. (xxx W /xxx KW)If you need the related MPPT, do you need the external single MPPT or the build-in MPPT ? (The build-in MPPT is built into the Inverter as an integrated Inverter. )

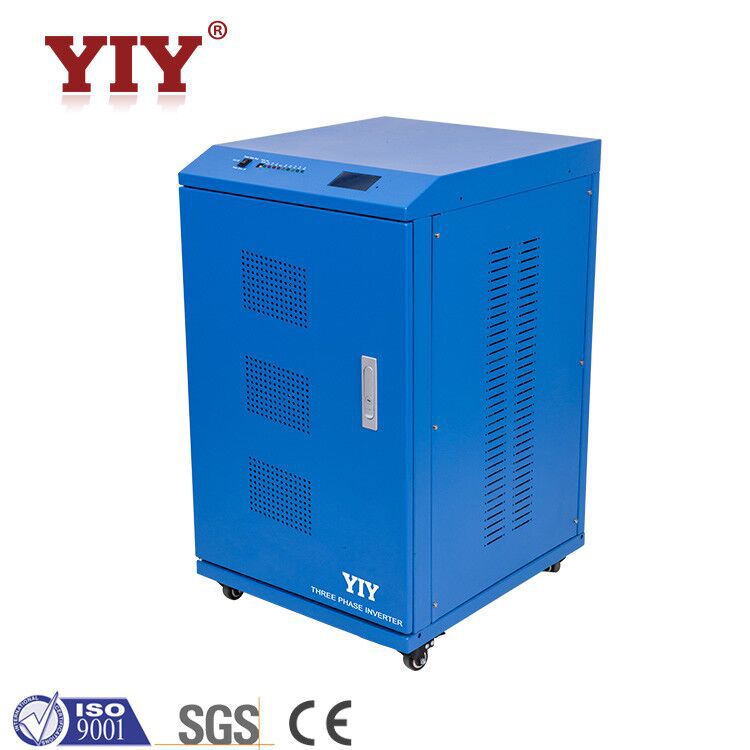

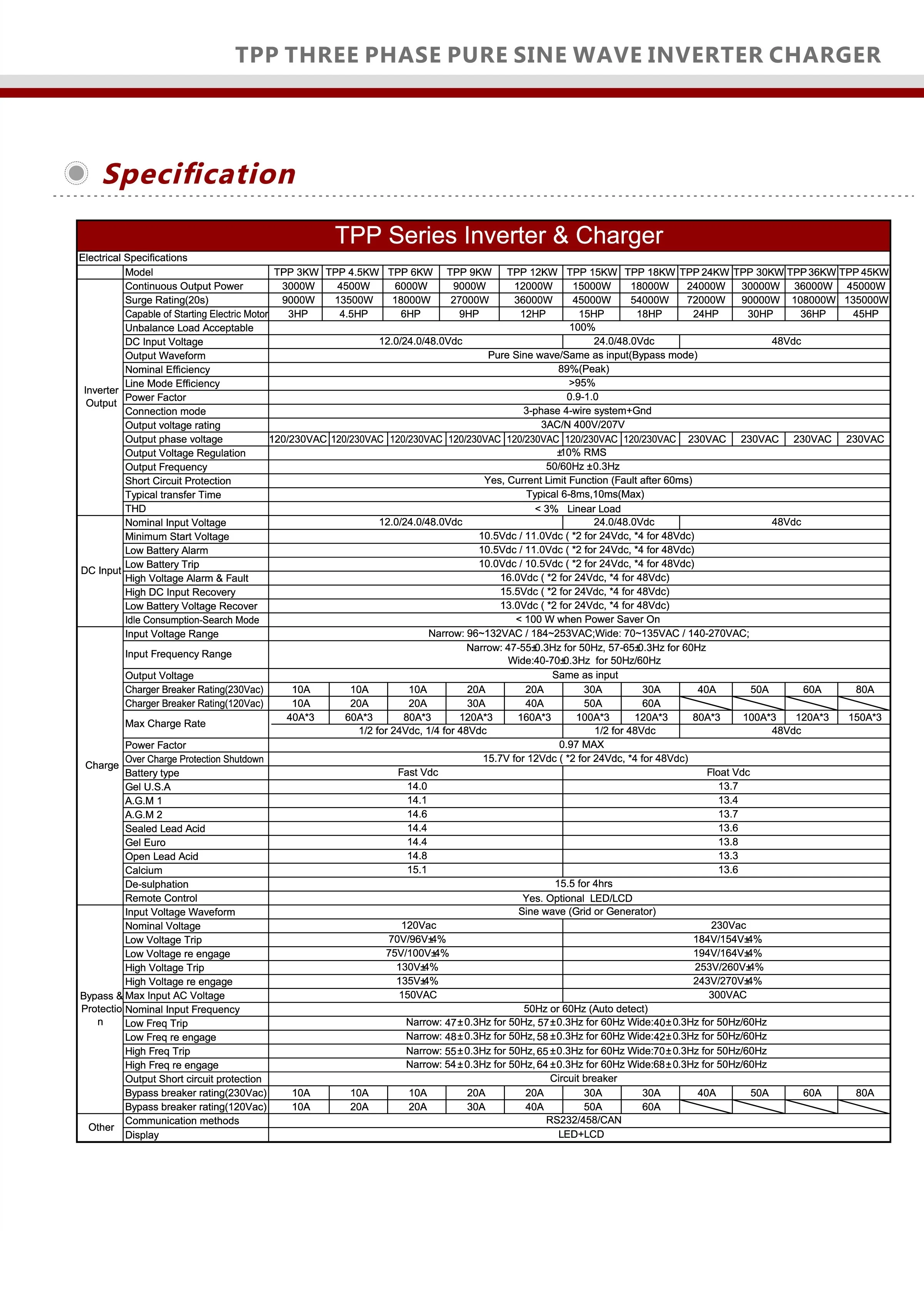

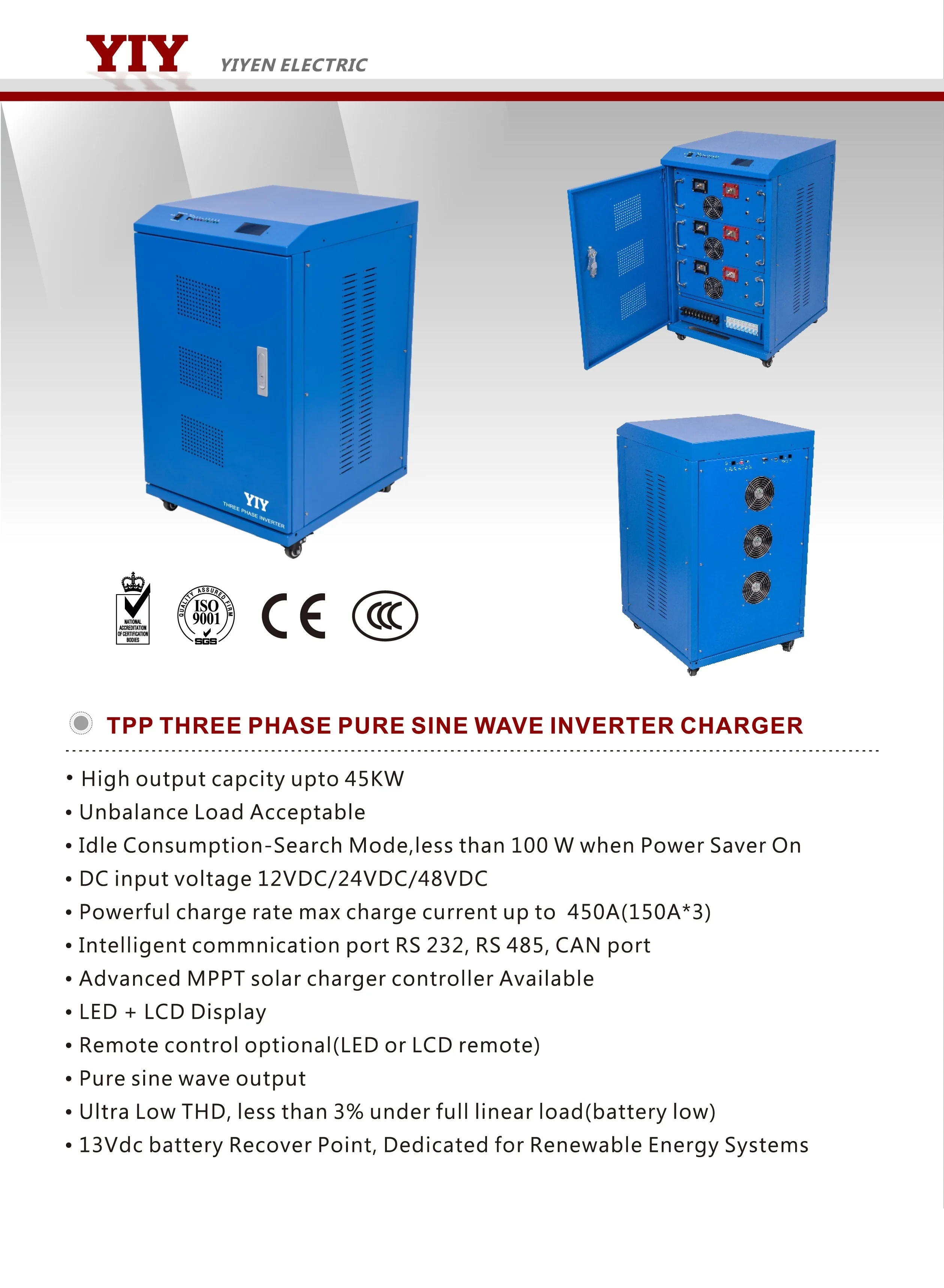

YIY three phase inverter charger 45kw pure sine wave inverter 48VDC to 230/400VAC TPP THREE PHASE PURE SINE WAVE INVERTER CHARGER 1. High output capcity upto 45KW2. Unbalance Load Acceptable3. Idle Consumption-Search Mode,less than 100 W when Power Saver On4. DC input voltage 12VDC/24VDC/48VDC5. Powerful charge rate max charge current up to 450A(150A*3)6. Intelligent commnication port RS 232, RS 485, CAN port7. Advanced MPPT solar charger controller Available8. LED + LCD Display9. Remote control optional(LED or LCD remote)10. Pure sine wave output11. Ultra Low THD, less than 3% under full linear load(battery low)12. 13Vdc battery Recover Point, Dedicated for Renewable Energy Systems13. Tower case/ Wall mounte case selectable14. Ouput 230/400vac, 120/207vac TPP Series Inverter and amp; ChargerElectrical Specifications ModelTPP 3KWTPP 6KWTPP 9KWTPP 12KWTPP 15KWTPP 18KWTPP 24KWTPP 30KWTPP 36KWTPP 45KWInverterContinuous Output Power3000W6000W9000W12000W15000W18000W24000W30000W36000W45000WOutput Surge Rating(20s)9000W18000W27000W36000W45000W54000W72000W90000W108000W135000W Capable of Starting Electric Motor3HP4.5HP6HP9HP12HP15HP24HP30HP36HP45HP Unbalance Load Acceptable100% DC Input Voltage48.0Vdc Output WaveformPure Sine wave/Same as input(Bypass mode) Nominal Efficiency89%(Peak) Line Mode Efficiency and gt;95% Power Factor0.9-1.0 Connection mode3-phase 4-wire system+Gnd Output voltage rating3AC/N Y-207/400Vac Output phase voltage120VAC120/230VAC120VAC120/230VAC120VAC120/230VAC230VAC230VAC230VAC230VAC Output Voltage Regulation±5% RMS Output Frequency50/60Hz ± 0.3Hz Short Circuit ProtectionYes, Current Limit Function (Fault after 60ms) Typical transfer TimeTypical 6-8ms,10ms(Max) THD and lt; 3%(Linear Load)DC InputNominal Input Voltage24/48Vdc Minimum Start Voltage42Vdc / 44Vdc Low Battery Alarm42Vdc / 44Vdc Low Battery Trip40.0Vdc /42.0Vdc High Voltage Alarm and amp; Fault64.0Vdc High DC Input Recovery62.0Vdc Low Battery Voltage Recover52.0Vdc Idle Consumption-Search Mode and lt; 100 W when Power Saver OnChargeInput Voltage RangeNarrow: 96~132VAC / 184~253VAC;Wide: 70~135VAC / 140-270VAC; Input Frequency RangeNarrow: 47-55±0.3Hz for 50Hz, 57-65±0.3Hz for 60HzWide:40-70±0.3Hz for 50Hz/60Hz Output VoltageSame as input Charger Breaker Rating(230Vac) 10A 20A 30A40A50A60A80A Charger Breaker Rating(120Vac)10A20A20A30A40A 50A Max Charge Rate10A*320A*330A*340A*350A*360A*380A*3100A*3120A*3150A*3 Power Factor0.97 MAX Over Charge Protection Shutdown62.8Vdc Battery typeFast VdcFloat Vdc Gel U.S.A5654.8 A.G.M 156.453.6 A.G.M 258.454.8 Sealed Lead Acid57.654.4 Gel Euro57.655.2 Open Lead Acid59.253.2 Calcium60.454.4 Classic LFP54.454 De-sulphation62.0Vdcfor 4hrs Remote Control Yes. Optional(LED/LCD)Bypass and amp;Input Voltage WaveformSine wave (Grid or Generator)Protection Nominal Voltage120Vac230Vac Low Voltage Trip70V/96V±4%184V/154V±4% Low Voltage re engage75V/100V±4%194V/164V±4% High Voltage Trip130V±4% 253V/260V±4% High Voltage re engage135V±4%243V/270V±4% Max Input AC Voltage150VAC300VAC Nominal Input Frequency50Hz or 60Hz (Auto detect) Low Freq TripNarrow: 47±0.3Hz for 50Hz, 57±0.3Hz for 60Hz Wide:40±0.3Hz for 50Hz/60Hz Low Freq re engageNarrow: 48±0.3Hz for 50Hz, 58±0.3Hz for 60Hz Wide:42±0.3Hz for 50Hz/60Hz High Freq TripNarrow: 55±0.3Hz for 50Hz, 65±0.3Hz for 60Hz Wide:70±0.3Hz for 50Hz/60Hz High Freq re engageNarrow: 54±0.3Hz for 50Hz, 64±0.3Hz for 60Hz Wide:68±0.3Hz for 50Hz/60Hz Output Short circuit protectionCircuit breaker Bypass breaker rating(230Vac) 10A 20A 30A40A50A60A80A Bypass breaker rating(120Vac)10A20A20A30A40A 50A OtherCommunication methodsRS232/485/CAN DisplayLED+LCD
