Feature
1.With PLC control panel, it is easy to set the working parameters.
2.With label sensor, it can detect labels and send out labels accurately, preventing from wasting or missing labels.
3.With positioning rod, it can locate bottles accurately, creating good labeling effect.
4.The mold of the machine can be customized according to differnt bottles.
5.This machine can be equipped with date coder, which can be used to print production date or batch on bottles.
Parameter
|
Machine Model |
ZS-TB806 |
|
Power Supply |
110V/220V 50-60HZ 990W |
|
Working Speed |
15 -30 pieces/min(based on products and label size) |
|
Labeling Accuracy |
±0.5mm |
|
Suitable Labeling Object |
50-350mm(L)*20-200mm(W)*50-400mm(H) |
|
Suitable Label Size |
15- 300mm(L)*15-150mm(W) |
|
Label Roll OD |
φ300mm |
|
Label Roll ID |
φ76mm |
|
Machine Size |
1220* 1250* 1470mm(L*W*H) |
|
Machine Weight |
About 270kg |
Application

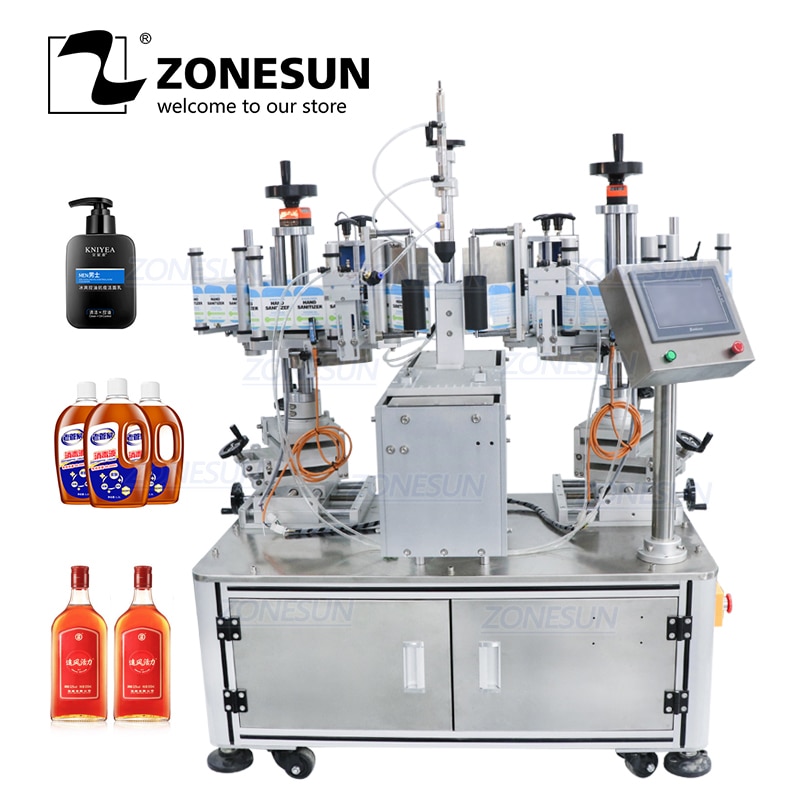

This machine can be used for single side or double sides labeling on square bottles, such as laundry detergent bottles, machine oil bottle,square Whisky bottle, etc. It can be widely used in daily chemical, catering, cosmetic industries. Help to improve work efficiency.
