ZONESUN Automatic filling machine for Production Line Cans Beer Beverage Arequipe Honey Paste Oil Filling Supplier

SALE 10% OFF

ZONESUN Automatic filling machine for Production Line Cans Beer  Beverage Arequipe Honey Paste Oil Filling Supplier

This one is very heavy,please contact with us if you need the cheap shipping cost

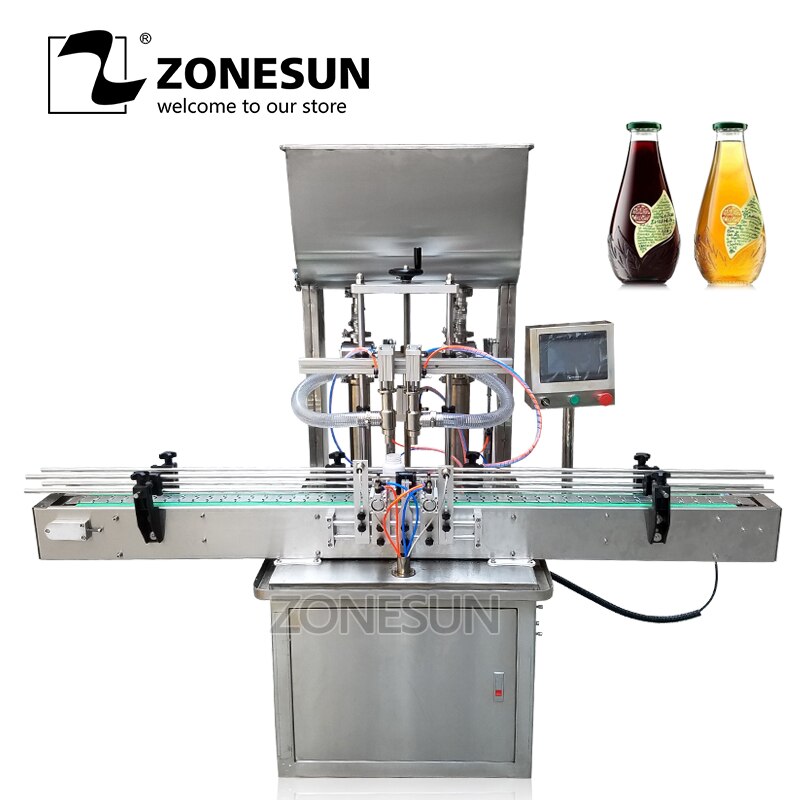

YT2T-2G automatic double heads piston liquid filling machine

Description:

1.The  YT2T2G  is  designed  on  the  basis  of  this  companys  series  products  with  extra  functions  increased.  The  product  is  simple  and  convenient  in  operation,error  correction,  machine  cleaning  and  maintenance.



2.Widely  used  for  filling  various  kinds  of  highly  viscous  fluid  in  the  industries  of  daily  chemicals,  foodstuffs,  pharmaceutics  and  oil.



3.With  two  synchronous  filling  heads,  quick  and  accurate  filling  possible  With  Taiwans  pneumatic  elements  and electrical  control  parts  adopted,  its  performance  is  stable.



4.The  cylinders  and  pistons  are  made  of  304L  stainless  steel  and  lined  with  PTFE,  conforming  to  GMP.

Quality  guaranteed  by  Taiwans  PLC,  touchable  screen  and  frequency  inverter,  and  electrical  elements.



5.Compact  design,  attractive  appearance,  convenient  installational  and  filling  adjustment,  no  missed  filling  and  accurate  filling  dosage  with  a  counter  provided.



6.Closure  head  preventing  leakage  and  wiredrawing,  filling  elevating  system  preventing  high  froths,  bottle  top  positioning  system  and  liquid  level  control  system  provided.



Parameter:

Model YT2T-2G YT4T-4G YT6T-6G
Voltage 110V/220V, 50HZ/60HZ, 800W
Filling range 5-100ml,10-300ml,20-500ml,50-1000ml,500-2800ml,1000-5000ml
Filling speed 10-40bottles/min 20-50bottles/min 30-70bottles/min
Filling precision ≤±1%
Air pressure 0.5-0.7Mpa
Weight 220kg 260kg 300kg
Dimemsion (L*W*H) 210*86*146cm 260*86*146cm 320*86*146cm



Notice

This machine need customized your bottle size.pls feel free to contact us .
and we also can find the cheaper shipping cost for you



Attention

We  will  test  all  of  the  filling  machine  before  send  out  ,  so  it’s  normal  that  the  machine  pump  and  tube  with  water  inside  when  you  receive  it.  !!!!!!
