Silicone/PU/Ms Sealant/Paste Soft Tube Filling and Sealing Machine

Silicone/PU/Ms Sealant/Paste Soft Tube Filling and Sealing Machine

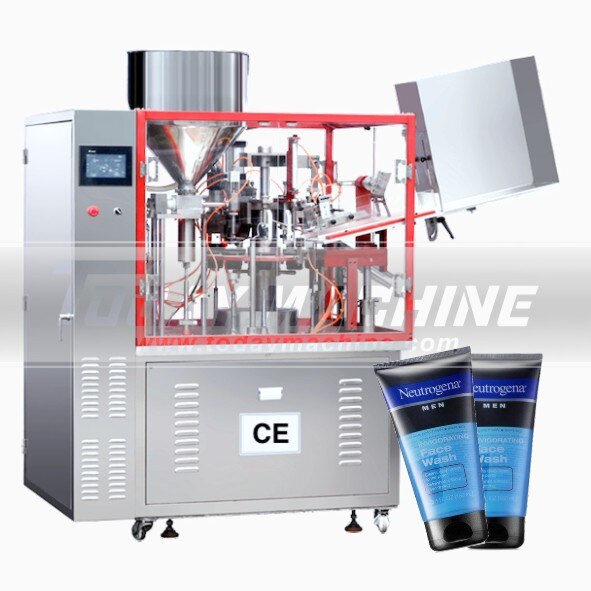

Soft Tube Filling and Sealing Machine

For plastic tube filling and sealing. It has been widely used in the fields of pharmacy, cosmetic, food and chemical…




Materials application

The utility model has the advantages of reasonable structure, uniform functions, convenient operation, accurate loading, stable operation and low noise. The PLC programmable controller is used to program the whole machine, from liquid to high viscosity fluid material (paste) for filling and sealing to code number (including production date) and other processes. It is an ideal equipment for filling and sealing aluminum tubes, plastic tubes and composite tubes in cosmetics, pharmaceuticals, food, adhesives and other industries, and meets GMP requirements.

Paste, adhesives, AB glue, epoxy glue, skin cream, hair dye, shoe polish, toothpaste  etc.

Advantages

High-grade LCD display programming controller and button combined operation screen, fully grasp the equipment’s stepless speed regulation, parameter equipment, production count statistics, air pressure indication, fault display and other operating conditions, making the operation simple and user-friendly.

Fully complete the whole process of human supply pipe, benchmarking, filling inert temperature body (optional), filling, sealing, coding, and finished product export.

High-precision benchmarking system reduces the range of color difference between the tube and the color scale.

External adjustment position and digital display of position, quick and accurate adjustment (suitable for multi-species, multi-species production).

Machine, light, electricity and gas integration, no tube is not filled, the tube is not in place, low pressure, automatic display (alarm); automatic function such as automatic shutdown when opening the protective door.

Technique Performance

Model TFS-250S TFS-250A TFS-250AH
Automation Semi-auto Automatic Automatic
High speed
Power 2kw 4kw 4kw
Voltage 220V 50hz
110V 60hz
220V 50hz
110V 60hz
220V 50hz
380V 50hz
Sealing
Diameters
10-50mm 10-50mm 10-50mm
Tube Height 10-250mm 20-250mm 45-250mm
Air pressure 0.6Mpa 0.6-0.8Mpa 0.5-0.65Mpa
Filling Range 3-30ml
5-75ml
50-500ml
3-30ml
5-75ml
50-500ml
3-30ml
5-75ml
50-500ml
Capacity 20-30
pcs/min
25-60
pcs/min
60-80
pcs/min
Dimension 1100*800*1600mm 1600*800*1830mm 2500*1200*2400
mm
Weight 300kg 700kg 1500kg
