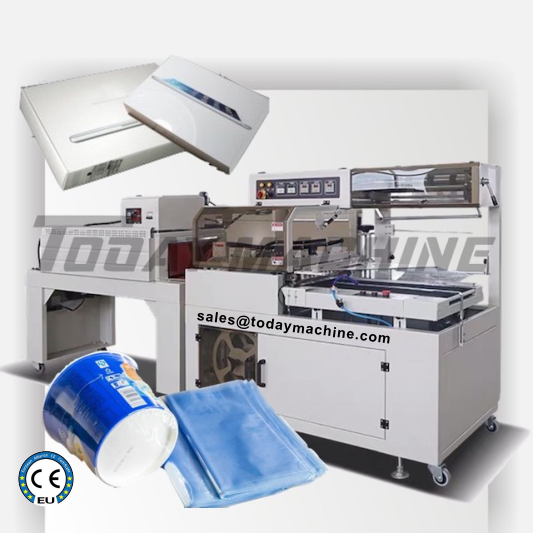

Semi Automatic POF Film Sealer Carton Box Case 2 In 1 L Bar Sealing Heat Shrink Tunnel Wrap Packaging Machine

Semi Automatic POF Film Sealer Carton Box Case 2 In 1 L Bar Sealing Heat Shrink Tunnel Wrap Packaging Machine

The price is for reference only, the finial cost of the machinery and freight will be difference due to the configurations and addresses.

Contact us to get finial discount price.

Copy our official link:TodayMachine.com

Horizontal
Wrapping Machine/Flow Wrapper

biscuits, rice
Krispies treats, snow cakes, breads, instant noodles, rice noodles, daily
necessities, tissues, sanitary towels, industrial parts, paper boxes, tray,
vegetable, disposable items …

Character

·Dual servo motors and amp; single frequency
conversion control.

·Auto stop when film material or products
absence.

·Temperature control module and amp;
independent PID control, accurate and flexible for different film materials.

·Prevent from cutting material, increase
operating efficiency and amp; reduce equipment loss.

·Touch screen interface, easy and quick
setting and amp; operating. Self failure diagnosis, clear failure display.

·Positioned stop function, without
sticking cutter and amp; wasting film.

Option

·Date coder

·Gas flushing system

·UV sterilization

·Alcohol Spraying

·Extruder system

·Stacking system

·Counter system

·Push out system

·Turntable system

Technical data

Model

Speed
(bag/min)

Max
film width
(mm)

Product Size
(mm)

Bag Size
(mm)

Power

Dimension
(mm)

Weight
(kg)

FW-140

and lt;500

140

H: 6-12

L: 30-80/60-100

3.5kw

3800x1350x1450

800

FW-150

50-900

150

L: 10-100
W: 10-80
H: 4-40

L: 30-150

3.7kw

3850x1100x1600

800

FW-240

30-220

240

L: 75-190/150-350
W: 40-100
H: and lt;25

2.8kw

3900x840x1330

600

FW-280

30-220

280

L: 85-210/170-380
W: 40-125
H: and lt;35

2.8kw

3900x840x1330

600

FW-320

30-220

320

L: 110-250/200-420
W: 40-150
H: and lt;55

2.8kw

3900x840x1330

600

FW-450

20-200

450

L: 115-480
W: 80-215
H: 80

4.5kw

3900x840x1330

700

FW-600

20-200

600

L: 115-230
W: 40-280
H: 80

4.5kw

3900x840x1330

700

FW-600-PLUS

20-200

600

L: 40-240
W: 80-300
H: and lt;150

L: 70-800

4.5kw

5000x1250x1700

700

Shrink Film Sealing Cutting Machine

For mass
production such as food, software, medicine, beverage, tobacco, daily
chemicals, automobiles, cables, cosmetics, and electronics.


Application

Mainly used in the production of
packaging for pharmaceutical, food, beverage, stationery, printed matter,
cosmetics, gifts, electronic products, toys and other products.

Feature

This machine has high working
efficiency, automatic film feeding and punching, automatic film sealing and
cutting, only need to manually adjust the film guiding system and manually
adjust the feeding conveying platform for products of different widths and heights.
The automatic sealing and shrinking packaging machine is also suitable for
multi-piece wrapping and tray packaging, and can also be used with the
automatic packaging line, which is the first choice for sealing and shrinking
packaging.

Technical

Model

FQL-450

FQL-550

FQB-450

FQB-550

FQB-650

FQB-750

Type

L bar

L bar

Side seal

Side seal

Side seal

Side seal

Packing width
(Max)

350mm

450mm

350mm

450mm

550mm

650mm

Packing length
(Max)

550mm

650mm

unlimited

unlimited

unlimited

unlimited

Packing height
(Max)

120mm

120mm

150mm
190mm

150mm
200mm

150mm
250mm

150mm
250mm

Speed

15-30
pcs/min

15-30
pcs/min

15-30
pcs/min

10-25
pcs/min

10-20
pcs/min

10-20
pcs/min

Temperature

0-400

0-400

0-400

0-400

0-400

0-400

Air pressure

0.5MPA

0.5MPA

0.5MPA

0.5MPA

0.5MPA

0.5MPA

Voltage

220V
50-60hz
1.25kw

220V
50-60hz
1.25kw

220V
50-60hz
1.5kw

220V
50-60hz
1.5kw

220V
50-60hz
1.5kw

220V
50-60hz
1.5kw

Dimension

1700*930

*1460mm

1740*1020

*1460mm

1700*920

*1460mm

1740*1020

*1460mm

1960*1120

*1460mm

2120*1180

*1470mm

Weight

310kg

320kg

300kg

500kg

600kg

660kg

Shrink Film Wrapper

Food, beverage, medicine, video/audio
products, metal ware. Cosmetics, books, toy, plastic and electronic products.

Application

Mainly used in the production of
packaging for pharmaceutical, food, beverage, stationery, printed matter,
cosmetics, gifts, electronic products, toys and other products.

Feature

Infinitely variable transmission, stable
and low noise

Quartz heating tube, adjustable
temperature from 0-300

Conveyor driven by powerful DC motor,
with heavy load capacity

Continuous working available

Fit for PVC, PP and POF material film

Technical parameter

Model

BS-2615

BS-4020

BS-4525

BS-6535

Conveying way

Web/
Chain

Web/
Chain

Web/
Chain

Web/
Chain

Electric

220V

220V/380V

380V

380V

Power

4.8KW

6.8KW

7KW

12KW

Conveying Temperature

0-300

0-300

0-300

0-300

Speed

0-10m/min

0-10m/min

0-10m/min

0-10m/min

Shrinking Oven
(Max Shrink Size)

750x260x150mm

800x400x200mm

900x450x250mm

1200x650x350mm

Max Loaded Weight

5kg

8kg

10KG

10KG

Machine Weight

40kg

43kg

110kg

130kg

Machine Size

1000x460x600mm

1100x600x640mm

1200x650x830mm

1600x850x830mm

Temperature for different materials

Material

PVC

PP

POF

Thickness

0.02-0.06mm

0.02-0.04mm

0.03-0.1mm

Heating time

5-10s

6-12s

8-16s

Shrinking Temperature

110-130

130-170

130-170

Strong Quality with Long-usage Life, Not the Cheap Ones.

We(Today Machine Team) don’t sell low quality with cheap tech then always repair and cuasing troubles. We are more up to stable machine with mature tech and amp; reliable program for clients under trustful relationship for lifetime.
