Product Name

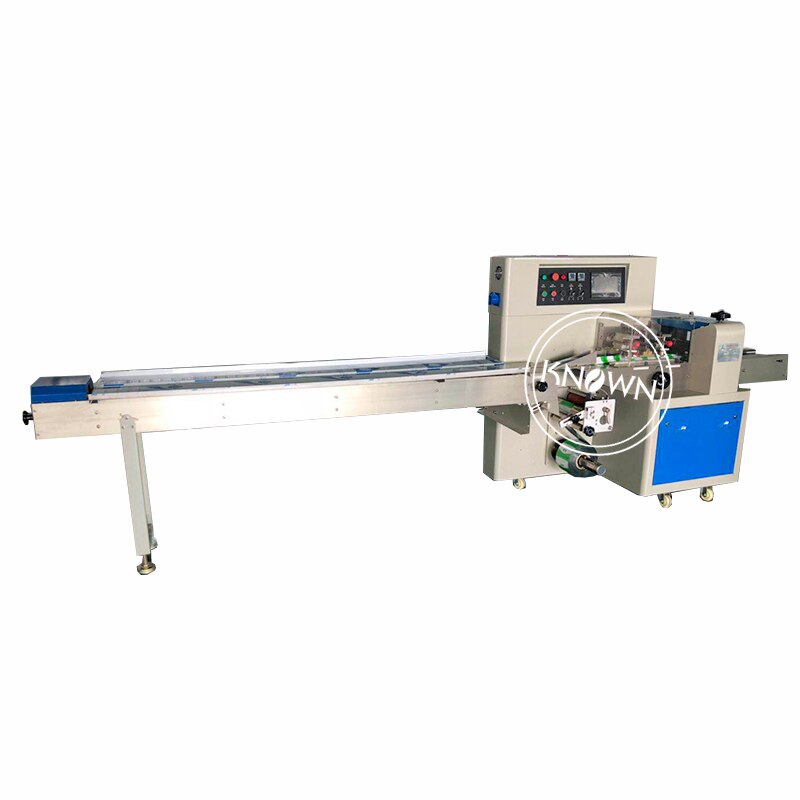

Automatic Pillow Packaging Machine Pizza Chocolate Biscuit Packaging Equipment
Product application of Automatic Pillow Packaging Machine
Suitable for packaging of regular objects such as biscuits, bread，ice cream rice, snow
cake, egg yolk, chocolate, bread, instant noodles, moon cakes, medicines, daily necessities, industrial parts, cartons or trays.
Packing machine automatic packing machine pillow type packing machine features
|
1. |
the stepper motor control(can choose servo motor),bag length is set is cut, don’t need to adjust empty, one pace reachs the designated position, time -saving provice membrane |
||
|
2. |
man -machine interface ,convenient and quick parameter setting |
||
|
3. |
fault self-diagnosis function, fault show at a glance. |
||
|
4. |
Gao Gan photoelectric tracking, digital input sealing and cutting position, more accurate in the position of sealing and cutting. |
||
|
5. |
temperature independent PID control, better suited to a varity of packing materials |
||
|
6. |
positioning stop function , non -stick knives, do not waste envelope |
||
|
7. |
the transmission system is concise, more reliable, more convenient maintenance |
||
|
8. |
all control by the software implementation, convenient function adjustment and technology upgrade, keep advanced. |
||
Packing machine automatic packing machine pillow type packing machine parameters
|
Models
|
KN-250
|
KN-320 |
KN-400
|
|
Memberane width
|
Max. 250MM
|
110-320MM
|
Max. 400MM
|
|
Long bag
|
65-190MM, 120-280MM |
80-230MM, 100-300MM |
130-320MM |
|
Products highly
|
5-40MM
( More than 40mm can customized )
|
5-40MM
( More than 40mm can customized )
|
5-50MM
( More than 50mm can customized )
|
|
Roller diameter
|
Max. 320MM
|
||
|
Packing speed
|
40-230 bags/min
|
30-280 bags/min
|
40-230 bags /min
|
|
The power supply
|
220V 50HZ 2.5KW
|
220V 50HZ 2.8KW
|
220V 50HZ 3KW
|
|
Machine size
|
(L)3770*(W)670*(H)1450MM
|
(L)4000*(W)900*(H)1500MM
|
(L)4100*(W)950*(H)1520MM
|
|
Weight
|
800KG
|
800KG
|
900KG
|
|
Note
|
Can match pneumatic (air or nitrogen), code device
|
||
Packing machine automatic packing machine pillow type packing machine
picture show
Packing machine automatic packing machine pillow type packing machine
detailed images
1.Panasonic double transducer control, flexible bag length cutting. Save time and film.
2.7 inch touch screen, easy operation and multiple language for choice.
3.Imported PLC computer control system, machine performance is stable and convenient for
parameters adjusting.
4.Separate PID temperature controller, suitable for various packing materials. Such as aluminium
film, paper film, PE film, and composite film.
5.High sensitivity optional photocell for eye mark tracking. Digital input for cutting position.
6.Position stop function, no adhesive and no waste of membrane and protect cutting jaws.
7.Stable and simply film roll structure enable roll film running smoothly.

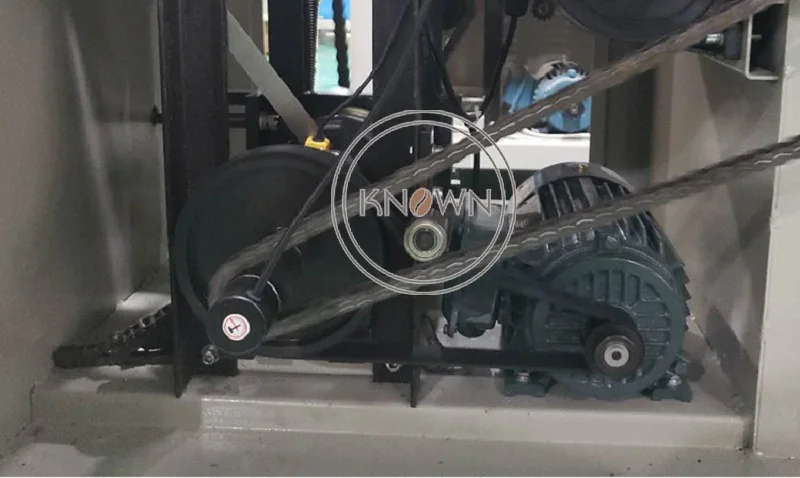

8.Simple driving system, stable performance and convenient maintenance.
Food packaging machine four edge food packaging machine suitable all kinds film
Food packaging machine four edge food packaging machine package
