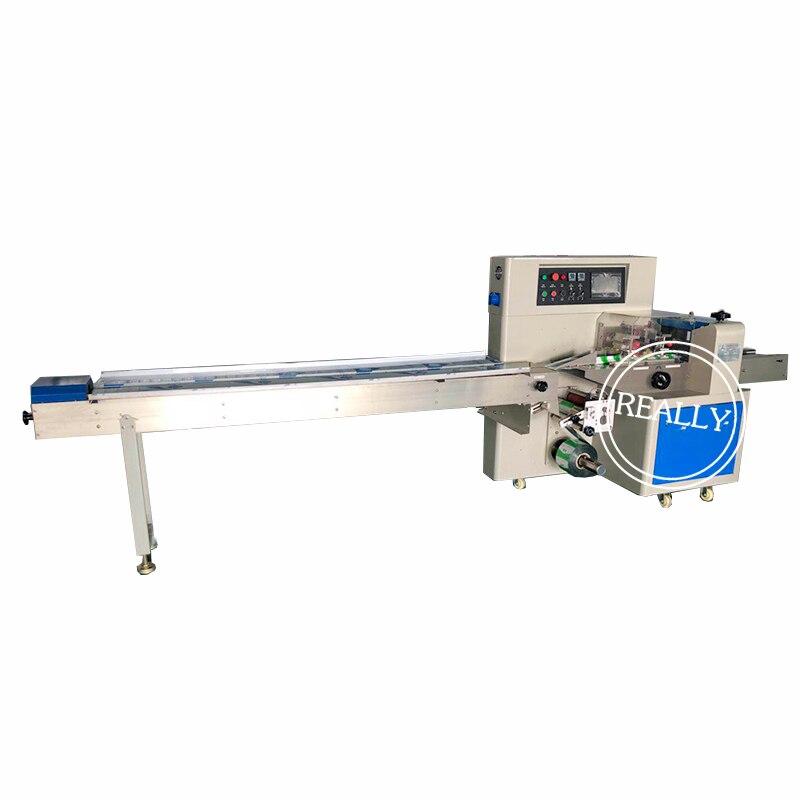

High Speed Chocolate Candy Bar Pillow Package Machines Mini Flow Pack Machine

SALE 30% OFF

High Speed Chocolate Candy Bar Pillow Package Machines Mini Flow Pack Machine

Packing Machine Product Application


Our machines is very suitable to pack moon cakes, popsicle, biscuits, rice crackers, wafers, snow cakes, egg yolk pies,

chocolate, bread, instant noodles, moon cakes, medicines, daily necessities, industrial parts, solid alcohol cartons or

trays etc..





Packing Machine Main Features

1. Double transducer control, flexible bag length cutting, operator needn’t to adjust the unloading working, saving time
and saving films.
2. human-machine operation, convenient and quick parameter setting.
3. Self diagnosis failure function, clear failure display.
4. High sensitivity optical electric color mark tracking and amp; digital input cut position which makes the sealing and amp; cutting
more accurate.
5. Separate PID control to temperature, suitable for various packing materials.
6. Stopping the machine in selected position, no sticking to the knife and no waste packing film.
7. Simple driving system, reliable working, convenient maintenance.
8. All the controls are achieved by software, convenient for function adjusting and upgrading.

Packing Machine Parameters

Model
RL-THB250X
Packing film width
less than 250mm
Length of bag
65-190mm, or 120-280mm
Width of bag
30-110mm
Height of bag
5-40mm (larger than 40mm could be customized)
Packing film roller diameter
less than 320mm
Packing speed
40-230 bags/min
Power supply
220V/50HZ/60HZ, 2.4kw
Product size
3920*670*1320mm
Weight
800kg
Note
nitrogen/air filling machine, coding machine etc. could be equipped according to your needs


Packing Machine Detail Images

RL-THB250 (try to click photo)

Bag length: 65-190mm, 120-280mm

RL-THB250X (try to click photo)

Bag length: 65-190mm, 120-280mm

RL-THB320 (try to click photo)

Bag length: 130-320mm

RL-THB350B (try to click photo)

Bag length: 65-190mm, 120-280mm

RL-THB350D (try to click photo)

Bag length: 150-330mm, 900-220mm

RL-THB350X (try to click photo)

Bag length: 65-190mm, 120-280mm,  150-330mm, 900-220mm

RL-THB400 (try to click photo)

Bag length: 130-320mm, 180-440mm

RL-THB450 (try to click photo)

Bag length: 130-450mm

RL-THB600 (try to click photo)

Bag length: 120-450mm
