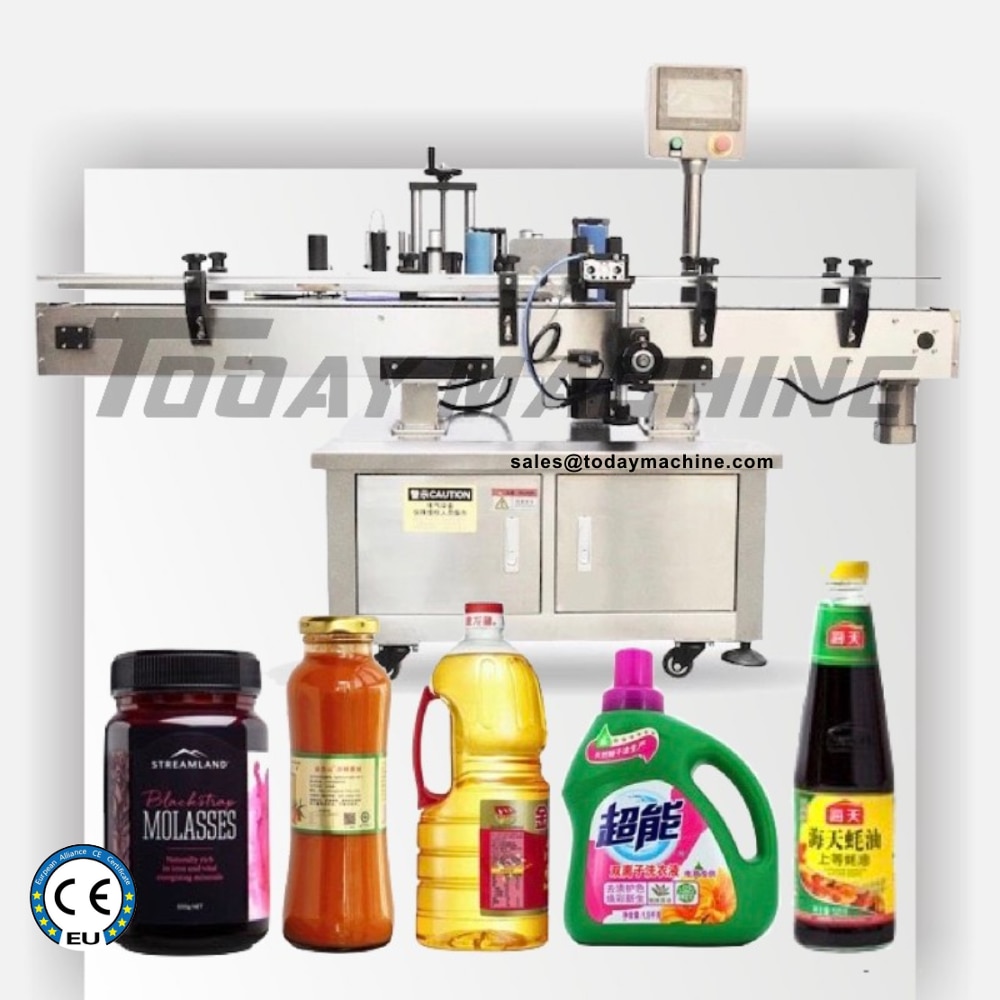

Automatic Sticker Labeling Machine
For labelling of bottle/canister/can/jar/bag in any possible shapes you can imagine.
Character
PLC control, touch screen.
High speed working and stable performance;e advantages of labeling accuracy, high precision.
Has the functions of no bottle without labeling, automatic correction and detection.
Can be used to connect with production line or work alone.
Technical sheet
| Model | Application | Speed (B/Min) |
Container Height Diameter (mm) |
Label/Sticker Height Length (mm) |
Label Diameter Inner Outer (mm) |
Weight (kg) |
Dimension (mm) |
| LM-R | Round Container |
20-200 | 30-280 30-150 |
15-140 25-300 |
76 320 |
120 | 2200×1100×1300 |
| LM-R1 | Round Container |
20-40 | 30-200 30-90 |
15-140 25-300 |
76 380 |
120 | 2000×1000×1250 |
| LM-MINI | Mini round Container |
60-200 | 25-95 12-250 |
20-90 25-80 |
76 360 |
120 | 1900×750×1650 |
| LM-F | Square/Flat Container |
60-200 | 30-280 20-200 |
5-150 25-300 |
76 320 |
120 | 2800×1450×1360 |
| LM-FS | Flat Surface Product |
20-200 | 15-110 30-200 |
– 25-300 |
76 350 |
110 | 1600×550×1600 |
