Horizontal Wrapping Machine/Flow Wrapper
biscuits, rice Krispies treats, snow cakes, breads, instant noodles, rice noodles, daily necessities, tissues, sanitary towels, industrial parts, paper boxes, tray, vegetable, disposable items …
Character
-
Dual servo motors and amp; single frequency conversion control.
-
Auto stop when film material or products absence.
-
Temperature control module and amp; independent PID control, accurate and flexible for different film materials.
-
Prevent from cutting material, increase operating efficiency and amp; reduce equipment loss.
-
Touch screen interface, easy and quick setting and amp; operating. Self failure diagnosis, clear failure display.
-
Positioned stop function, without sticking cutter and amp; wasting film.
Option
-
Date coder
-
Gas flushing system
-
UV sterilization
-
Alcohol Spraying
-
Extruder system
-
Stacking system
-
Counter system
-
Push out system
-
Turntable system
Technical data
|
Model |
Speed |
Max |
Product Size |
Bag Size |
Power |
Dimension |
Weight |
|
FW-140 |
and lt;500 |
140 |
H: 6-12 |
L: 30-80/60-100 |
3.5kw |
3800x1350x1450 |
800 |
|
FW-150 |
50-900 |
150 |
L: 10-100 |
L: 30-150 |
3.7kw |
3850x1100x1600 |
800 |
|
FW-240 |
30-220 |
240 |
– |
L: 75-190/150-350 |
2.8kw |
3900x840x1330 |
600 |
|
FW-280 |
30-220 |
280 |
– |
L: 85-210/170-380 |
2.8kw |
3900x840x1330 |
600 |
|
FW-320 |
30-220 |
320 |
– |
L: 110-250/200-420 |
2.8kw |
3900x840x1330 |
600 |
|
FW-450 |
20-200 |
450 |
– |
L: 115-480 |
4.5kw |
3900x840x1330 |
700 |
|
FW-600 |
20-200 |
600 |
– |
L: 115-230 |
4.5kw |
3900x840x1330 |
700 |
|
FW-600-PLUS |
20-200 |
600 |
L: 40-240 |
L: 70-800 |
4.5kw |
5000x1250x1700 |
700 |

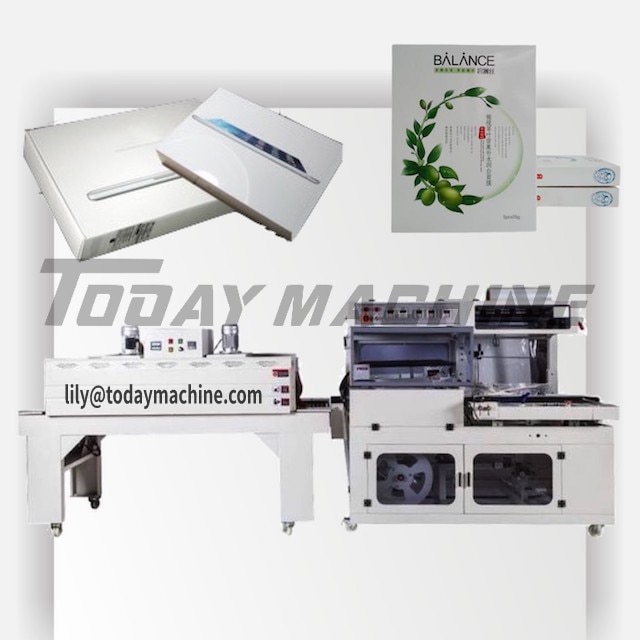

Shrink Film Sealing Cutting Machine
For mass production such as food, software, medicine, beverage, tobacco, daily chemicals, automobiles, cables, cosmetics, and electronics.
Application
Mainly used in the production of packaging for pharmaceutical, food, beverage, stationery, printed matter, cosmetics, gifts, electronic products, toys and other products.
Feature
This machine has high working efficiency, automatic film feeding and punching, automatic film sealing and cutting, only need to manually adjust the film guiding system and manually adjust the feeding conveying platform for products of different widths and heights. The automatic sealing and shrinking packaging machine is also suitable for multi-piece wrapping and tray packaging, and can also be used with the automatic packaging line, which is the first choice for sealing and shrinking packaging.
Technical
|
Model |
FQL-450 |
FQL-550 |
FQB-450 |
FQB-550 |
FQB-650 |
FQB-750 |
|
Type |
L bar |
L bar |
Side seal |
Side seal |
Side seal |
Side seal |
|
Packing width |
350mm |
450mm |
350mm |
450mm |
550mm |
650mm |
|
Packing length |
550mm |
650mm |
unlimited |
unlimited |
unlimited |
unlimited |
|
Packing height |
120mm |
120mm |
150mm |
150mm |
150mm |
150mm |
|
Speed |
15-30 |
15-30 |
15-30 |
10-25 |
10-20 |
10-20 |
|
Temperature |
0-400℃ |
0-400℃ |
0-400℃ |
0-400℃ |
0-400℃ |
0-400℃ |
|
Air pressure |
0.5MPA |
0.5MPA |
0.5MPA |
0.5MPA |
0.5MPA |
0.5MPA |
|
Voltage |
220V |
220V |
220V |
220V |
220V |
220V |
|
Dimension |
1700*930 *1460mm |
1740*1020 *1460mm |
1700*920 *1460mm |
1740*1020 *1460mm |
1960*1120 *1460mm |
2120*1180 *1470mm |
|
Weight |
310kg |
320kg |
300kg |
500kg |
600kg |
660kg |
Shrink Film Wrapper
Food, beverage, medicine, video/audio products, metal ware. Cosmetics, books, toy, plastic and electronic products.
Application
Mainly used in the production of packaging for pharmaceutical, food, beverage, stationery, printed matter, cosmetics, gifts, electronic products, toys and other products.
Feature
Infinitely variable transmission, stable and low noise
Quartz heating tube, adjustable temperature from 0-300℃
Conveyor driven by powerful DC motor, with heavy load capacity
Continuous working available
Fit for PVC, PP and POF material film
Technical parameter
|
Model |
BS-2615 |
BS-4020 |
BS-4525 |
BS-6535 |
|
Conveying way |
Web/ |
Web/ |
Web/ |
Web/ |
|
Electric |
220V |
220V/380V |
380V |
380V |
|
Power |
4.8KW |
6.8KW |
7KW |
12KW |
|
Conveying Temperature |
0-300℃ |
0-300℃ |
0-300℃ |
0-300℃ |
|
Speed |
0-10m/min |
0-10m/min |
0-10m/min |
0-10m/min |
|
Shrinking Oven |
750x260x150mm |
800x400x200mm |
900x450x250mm |
1200x650x350mm |
|
Max Loaded Weight |
5kg |
8kg |
10KG |
10KG |
|
Machine Weight |
40kg |
43kg |
110kg |
130kg |
|
Machine Size |
1000x460x600mm |
1100x600x640mm |
1200x650x830mm |
1600x850x830mm |
Temperature for different materials
|
Material |
PVC |
PP |
POF |
|
Thickness |
0.02-0.06mm |
0.02-0.04mm |
0.03-0.1mm |
|
Heating time |
5-10s |
6-12s |
8-16s |
|
Shrinking Temperature |
110-130℃ |
130-170℃ |
130-170℃ |
