DZ-800-2S double chamber vacuum packaging machine Big bag packaging machine Multifunctional high efficiency vacuum packaging machine

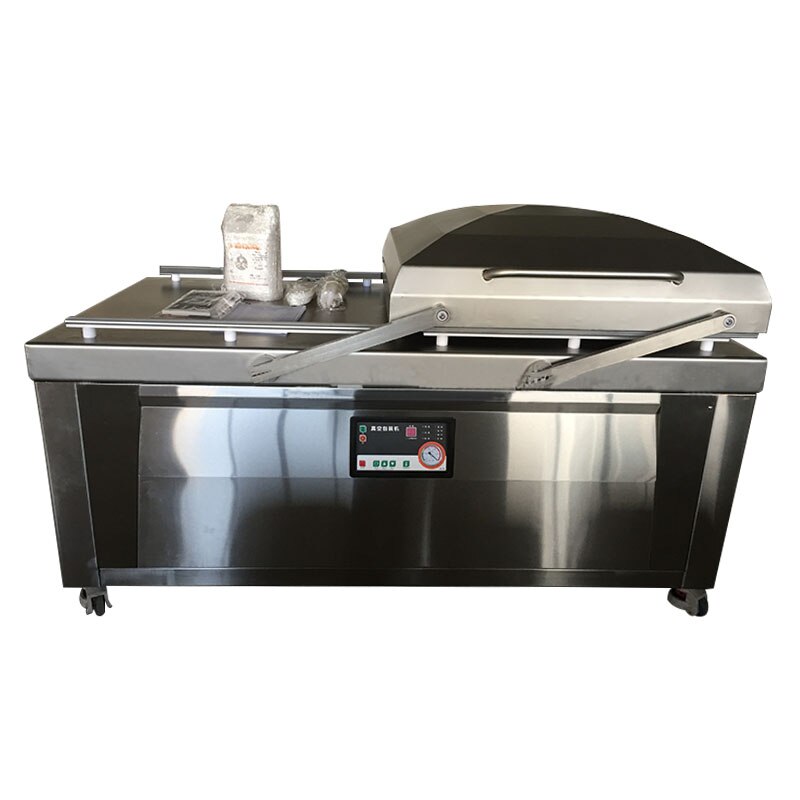

Product showing:

Parameters:

Name: Vacuum packaging machine

Model: DZ-800-2S

Machine size: 1910*1025*1090mm

Vacuum chamber size: 920*890*280mm

Heat seal effective size: 800*8*2mm

Sealing line spacing: 775mm

Vacuum pump: 200m3/h

Motor power: 5.5kw

Voltage: 380V

Frequency: 50Hz

Working cycle: 2-3times/h

Weight: 650kg

Scope of application: DZ-800-2S large bag vacuum packaging machine, the sealing length reaches 800mm, especially suitable for vacuum sealing packaging of large bags of meat, aquatic products, fruits and vegetables, medicines, etc.

Technical features:

● Microcomputer control system is adopted to make the setting of packaging parameters more accurate and easy to operate. The operator can set the vacuuming time and packaging sealing time according to the needs to adapt to the packaging of different specifications and materials.

●Equipped with a high-power vacuum pump, the vacuum obtained by the bag in a short period of time can improve the working efficiency of the device.

●The whole machine adopts the flat vacuum chamber design to facilitate the cleaning and wiping of grease, debris and other materials falling during the packaging process. The main structural materials are all 304 stainless steel, which meets food hygiene requirements.

●V-shaped sealing strip made of high-density material in the vacuum chamber ensures the sealing performance of the equipment in daily work, the pressure resistance and wear resistance of the material, and prolongs the service life of the sealing strip.

●The patented dynamic balance structure can be pushed by the strength of one finger, which is very easy to operate and reduces labor intensity.

●It adopts M-type heating wire, which has longer service life and double seal protection.

●The machine has an emergency stop function. In case of accident, the operator can press the emergency stop button at any time to terminate the ongoing work program and restore the device to the initial state.

●Equipped with heavy-duty mobile casters (with brakes), it has a good load-bearing capacity, making it easier for customers to move the machine position.

●The machine comes with exhaust air cooling function.
