Commercial floating fish feed pellet extruder machine Floating Fish Feed Pellet Machine/Dog Food Making Machine

SALE 30% OFF

Commercial floating fish feed pellet extruder machine Floating Fish Feed Pellet Machine/Dog Food Making Machine

Please Note

Because shipping cost rise fast recently, all our product on website is NOT free shipping price. The final price with shipment is subject to the actual cost, please confirm with us before you make an order.



commercial floating fish feed pellet extruder machine  Floating Fish Feed Pellet Machine/Dog Food Making Machine





 Introduction

1.Fish/pet food machine is widely used for producing grains into high-grade aquatic feed pellets for fish, catfish, shrimps, crab etc.

2.The puffing fish feed pellets can float on the water surface without dissolution for over 12 hours.

3.According to your requirement and production scale,fish/pet food machine can be classified into dry type machine and wet type machine.



Working process



After the material is sent into feeding device, they will be pressed by the screw shaft with high pressure and temperature which makes the raw material fully cooked and sterilized. Then the pressed material will be formed into pellets by shaping mould. You can change different moulds to make pellets with different diameters. After that a cutting device will cut the formed pellets into different length as required.



Application and features



1. According to different requirements, variety shapes of high-grade feed pellets for fish, shrimps .etc can be produced.

2. The finished pellets can keep floating for 3-15 hours without pollution to water.

3. The floating time can be controlled by the puffing degree adjustment.

4. Pet food machine/ fish feed machinery can make pellet from dia.1.0mm-20mm just by changing the mold.

5. Electric heating device is adopted which can improve the feed expansion rate and pellets floating time.

6. High temperature and high pressure cooking process can kill the salmonellosis and bacterial infections and also makes the pellets easily to digest.

7. The cutting device can be adjusted to make pellets of different length.

8. The wet type machine needs a boiler to make steam which can conduct steam to the conditioner and ripen the raw material in advance.



The parameter



Model KN-DGP-80B
Capacity(t/h)

0.2-0.3

Main power(kw) 22
Feeding power(kw) 0.6
Screw diameter(mm) φ80
Machine size(mm) 1800*1450*1300
Weight(kg) 695
We also have KN-DGP50C,KN-DGP60C,KN-DGP70B,KN-DGP80B,KN-DGP90B,KN-DGP120B,
KN-DGP135B,KN-DGP160B etc. If any interest,pls PHONE OR WHATSAPP me:0086-17719878449!

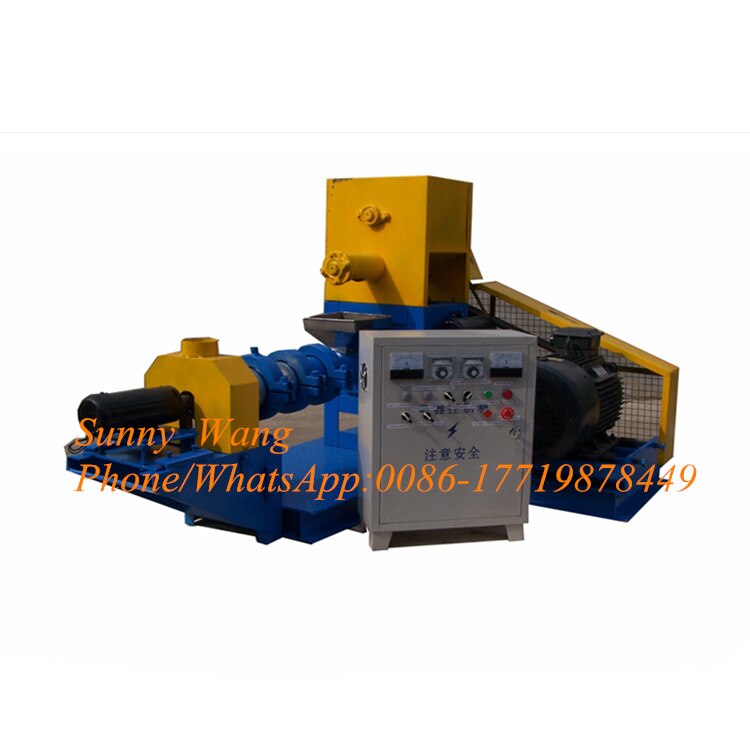

The photos







Pls kindly click pictures to know more models! Also you can phone or WhatsApp me to get work video,instructions etc! This is my phone/WhatsApp:0086-17719878449!



Notes

1:EXW is Ex Works,which means only including machine price. If you need to ship on our side,pls feel free

to contact to contact me:phone/WhatsApp:0086-15737894920. I will check shipping cost for you.

2:CNF which means after the machine arrives in  destination seaport,

the buyer need to pay the destination port local charges (such as terminal handling charges, documents charges, storage

charges, ect)  before picking  up the goods.

3:Buyers must be inspect the package / goods carefully before signing receipt of goods! If there is any damages, please

contact us and must be send the damage’s pictures within 24 hours, we will try to help you to contact with shipping company

to make the claim. Otherwise, it means that the buyer give up the right to make the claim. We will refuse to bear any damage’s

responsibility! Please noted this point before place order!

Our service

1.  Professional pre-sales team:

Being patient to learn clients’need

Suggesting item in according to clients’need

Being Patient to answer clients’doubt

2.  Professional after-sale team:

Keeping in touch with clients in order to let clients know process of the orders

Technical support throughout whole transaction

Designing suitable marketing plan

Timing visit after transaction completed

Being positive to answer occurring question during transaction



If any interest,pls free feel to contact Sunny Wang



Company  name

Zhengzhou Known  Imp. and amp;Exp.Co.,Ltd

Name

 Sunny Wang

Email

sunny(at)knownmachine.com

Tel

0086-17719878449

WhatsApp

0086-17719878449

Wechat

0086-17719878449















AT-40C puffed fish feed extruder fish feed pellet making machine floating fish feed pellet machine

 Introduction

1.Fish/pet food machine is widely used for producing grains into high-grade aquatic feed pellets for fish, catfish, shrimps, crab etc.

2.The puffing fish feed pellets can float on the water surface without dissolution for over 12 hours.

3.According to your requirement and production scale,fish/pet food machine can be classified into dry type machine and wet type machine.



Working process



After the material is sent into feeding device, they will be pressed by the screw shaft with high pressure and temperature which makes the raw material fully cooked and sterilized. Then the pressed material will be formed into pellets by shaping mould. You can change different moulds to make pellets with different diameters. After that a cutting device will cut the formed pellets into different length as required.



Application and features



1. According to different requirements, variety shapes of high-grade feed pellets for fish, shrimps .etc can be produced.

2. The finished pellets can keep floating for 3-15 hours without pollution to water.

3. The floating time can be controlled by the puffing degree adjustment.

4. Pet food machine/ fish feed machinery can make pellet from dia.1.0mm-20mm just by changing the mold.

5. Electric heating device is adopted which can improve the feed expansion rate and pellets floating time.

6. High temperature and high pressure cooking process can kill the salmonellosis and bacterial infections and also makes the pellets easily to digest.

7. The cutting device can be adjusted to make pellets of different length.

8. The wet type machine needs a boiler to make steam which can conduct steam to the conditioner and ripen the raw material in advance.



The parameter



Model AT-DGP40C(single phase)
Capacity(t/h) 0.03-0.04
Main power(kw) 3.0*2
Feeding power(kw) 0.4
Screw diameter(mm) Φ40
Machine size(mm) 1500*1400*1250
Weight(kg) 280



We also have AT-DGP50C,AT-DGP60C,AT-DGP70B,AT-DGP80B,

AT-DGP90B,AT-DGP120B,AT-DGP135B,AT-DGP160B etc. If any interest,pls PHONE OR WHATSAPP  me:0086-17719878449!

The photos







Pls kindly click pictures to know more models! Also you can phone or WhatsApp me to get work video,instructions etc! This is my phone/WhatsApp:0086-17719878449!



Notes

1:EXW is Ex Works,which means only including machine price. If you need to ship on our side,pls feel free

to contact to contact me:phone/WhatsApp:0086-15737894920. I will check shipping cost for you.

2:CNF which means after the machine arrives in  destination seaport,

the buyer need to pay the destination port local charges (such as terminal handling charges, documents charges, storage

charges, ect)  before picking  up the goods.

3:Buyers must be inspect the package / goods carefully before signing receipt of goods! If there is any damages, please

contact us and must be send the damage’s pictures within 24 hours, we will try to help you to contact with shipping company

to make the claim. Otherwise, it means that the buyer give up the right to make the claim. We will refuse to bear any damage’s

responsibility! Please noted this point before place order!

Our service

1.  Professional pre-sales team:

Being patient to learn clients’need

Suggesting item in according to clients’need

Being Patient to answer clients’doubt

2.  Professional after-sale team:

Keeping in touch with clients in order to let clients know process of the orders

Technical support throughout whole transaction

Designing suitable marketing plan

Timing visit after transaction completed

Being positive to answer occurring question during transaction



If any interest,pls free feel to contact Sunny Wang



Company  name

Zhengzhou Known  Imp. and amp;Exp.Co.,Ltd

Name

 Sunny Wang

Email

sunny(at)knownmachine.com

Tel

0086-17719878449

WhatsApp

0086-17719878449

Wechat

0086-17719878449















We also have KN-DGP50C,KN-DGP60C,KN-DGP70B,KN-DGP80B,KN-DGP90B,KN-DGP120B,
KN-DGP135B,KN-DGP160B etc. If any interest,pls PHONE OR WHATSAPP me:0086-17719878449!
