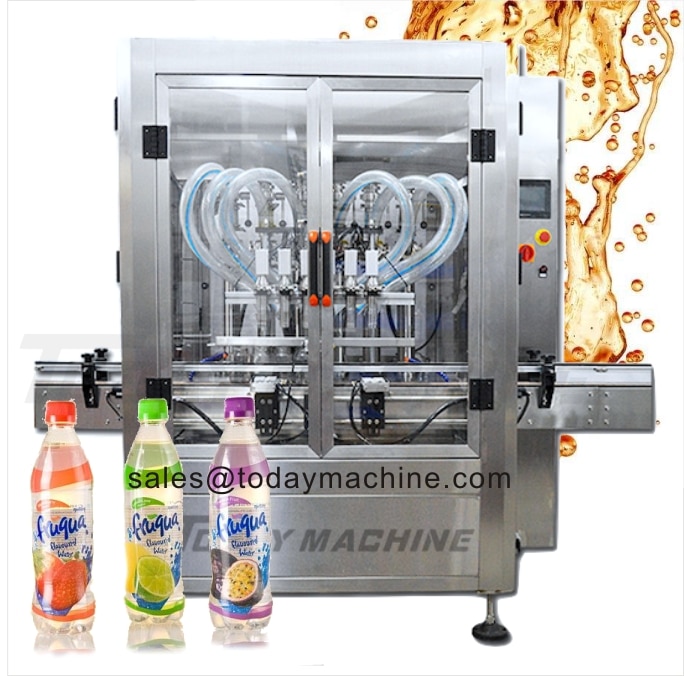

Automatic Bottle Liquid/Paste/Oil Filling Machine with Conveying Line

For Honey, Hand Sanitizer, shower gel, detergent liquid, shampoo, beer, ketchup, oil, etc.


Application

Product: Liquid, gel, paste, oil, cream …

Container: plastic/glass bottle of round/square/special/hexagon…

Functions

Measure pump is piston measure pump, then the piston through across in the pump up-side and down-side movement to-and-fro.

After bottles in right position, the filling head will move up and down at the same time and enter into the bottle for filling

Hold the bottles complete filling for next procedures

Adopt high-strength stainless steel frame, easy disassembly and assembly, easy to clean, in line with GMP requirements.

With no bottle and no filling function, the liquid level automatically controls the feeding.

Easily adjust bottles of various shapes and specifications without replacing parts.

The filling head is equipped with a special leak-proof device, and there is no drawing or dripping in the filling.

Technical parameters

Model

LFL-2H

LFL-4H

LFL-6H

LF-8L

LFL-12H

Filler head

2 head

4 head

6 head

8 head

12 head

Speed

5-20
b/min

10-20
b/min

10-30
b/min

15-40
b/min

30-80
b/min

Range

25-250ml
50-500ml
150-1000ml
500-2500ml
2000-5000ml

25-250ml
50-500ml
150-1000ml
500-2500ml
2000-5000ml

25-250ml
50-500ml
150-1000ml
500-2500ml
2000-5000ml

25-250ml
50-500ml
150-1000ml
500-2500ml
2000-5000ml

25-250ml
50-500ml
150-1000ml
500-2500ml
2000-5000ml

Error

Within 0.5g
(when 500ml)

Within 0.5g
(when 500ml)

Within 0.5g
(when 500ml)

Within 0.5g
(when 500ml)

Within 0.5g
(when 500ml)

Voltage

220v/380v
50-60hz

220v/380v
50-60hz

220v/380v
50-60hz

220v/380v
50-60hz

220v/380v
50-60hz

Air pressure

0.5-0.6Mpa

0.5-0.6Mpa

0.6-1Mpa

0.6-1Mpa

0.6-1Mpa

Weight

300kg

350kg

350kg

400kg

450kg

Dimention

2000x10200x1800
mm

2500x900x2200
mm

2500x900x2200
mm

2500x900x2200
mm

2500x900x2200
mm
