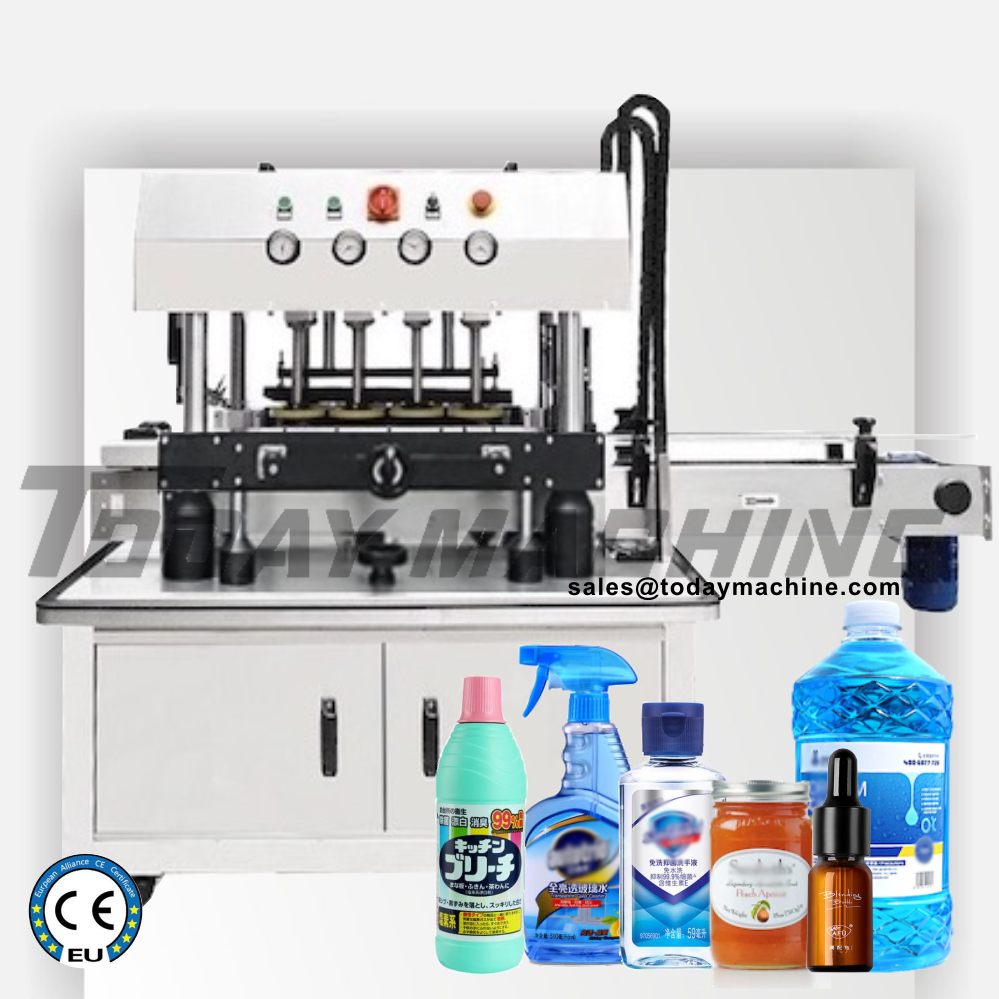

Automatic bottle capping machine
For Round plastic/glass bottle. With option of automatic cap loading system.
Characters
Touch panel, comfortable to touch, simple to set up, beautiful and practical.
No need to replace part(within the normal range) when meeting different bottles.
The speed of this machine can be increased by 3-4 times compared with the normal claw capping machine.
Can be used in a single machine, or can be matched with filling, sealing, labeling and other equipment production line.
Technical parameter
|
Model |
XGJ-NS |
XGJ-HS |
XGJ-ROPP |
|
Voltage |
220V/380V |
220V/380V |
220V |
|
Accuracy |
±1mm |
±1mm |
– |
|
Bottle height |
38-200mm |
38-300mm |
180-320mm |
|
Bottle diameter |
35-140mm |
35-140mm |
40-140mm |
|
Cap diameter |
15-60mm |
5-50mm |
22-32mm |
|
Speed |
20-50B/M |
60-130B/M |
30-70B/M |
|
Power |
1.5kw |
2.3kw |
1.7kw |
|
Weight |
250kg |
250kg |
350kg |
|
Size |
2000*700*1600 |
1700*700*1500 |
2000*890*1900 |
