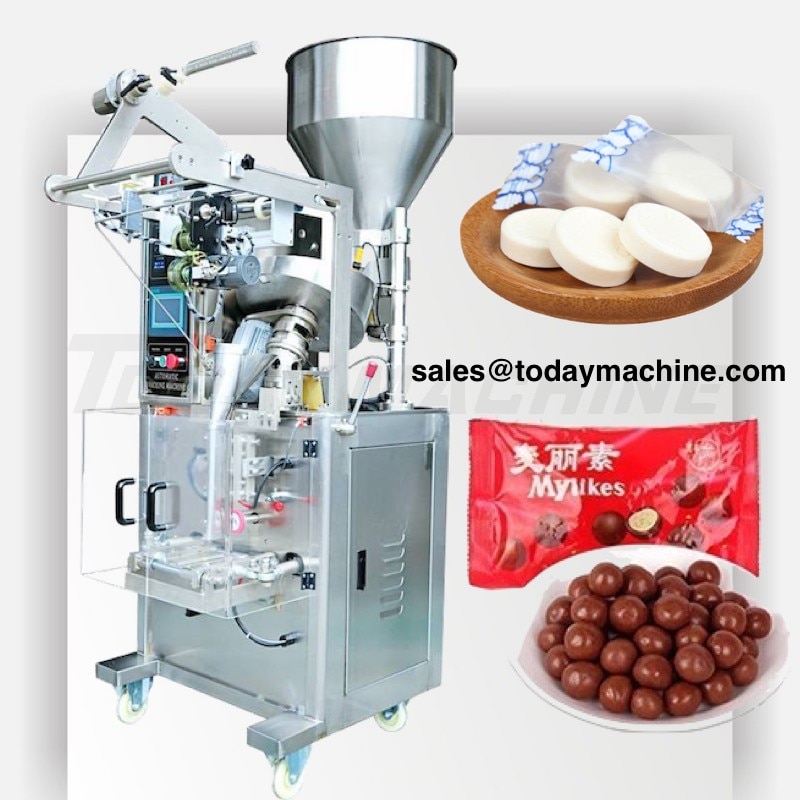

Tablet Packaging Machine with Counting System
Pill, Camphor pills, Round subject, Milk chewable tablets, Walnut, Chocolate beans, candy …
Standard
- Closed sealer housing
- Touch Screen
- Intuitive operator guidance on the button/touch panel
- Integration of all identification systems
- Printed mark identification and amp; measurement of bag lengths
- Use of different heat sealing and welding instruments
- Minimal time required when changing rolls
- Stop when film roll end. Detect the fault automatically.
- Seal tight, no leaking.
Available option
- Stainless steel and Paint version
- Date and amp; batch printer
- Date embossing system
- Gas-flushing system
- Exhaust sponge system, less/more air inside the packet
- Vibration system of hopper
- Easy tearing notch
- Round and Euro-hole punch, carrying handle punch
- Numerical control cutter
- Flat bottom package with center seal
- Frequency control system, less noise and amp; save energy
- Power supply: – 110V, 120V, 220V, 240V.
Technical parameter
Model | VFFS-280CT | VFFS-280CT-PLUS DXD-280CT |
VFFS-450CT DXD-450CT |
Film width | Max 300mm | Max 320mm | Max 420mm |
Bag size | L:50-175mm W:60-145mm |
L:50-190mm W:60-145mm |
L:50-280mm W:60-195mm |
Output | 30-76pcs/min | 30-80pcs/min | 15-36 pcs/min |
Bag type | Pillow seal 3 side seal 4 side seal gusset seal |
Pillow seal 3 side seal 4 side seal gusset seal |
Pillow seal gusset seal |
Packing range | 1-100 tablets | 1-100 tablets | 1-100 tablets |
Dimension | 1100x990x1660mm | 1100x990x1660mm | 1200*1100*2000mm |
Total power | 2KW | 2.2KW | 2.6KW |
Weight | 280kg | 350kg | 400kg |
