Mini horizontal pre-made pouch filling sealing machine
Application
The automatic single-station bag machine is a premade bag automation equipment which is professionally applied to the requirements of packaging.Through a multi-station to complete a series of actions such as bagging, opening, printing, filling, and mouth of the bag, it is suitable for various particles, liquids, powders and other materials. It is widely used in food, medicine, chemical, hardware, toys and other industries. It can be used with various filling devices such as screw scales, linear scales, and combination scales.
Features
Small size, light weight, there is no space restriction
Four working procedures, low failure rate and high stability
Fast production speed, convenient combination, one button operation, can be used it immediately after booting
To change to different pockets without adding accessories, and can adapt to a variety of shaped bags
Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials
Product or packing bag contact parts adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food.
With different feeders changed to pack solid, liquid, thick liquid,powder and so on
Technical parameter
Model |
HFS-150 |
Bag size |
W: 90-150mm |
Voltage |
Three phase 380V |
Power |
2KW |
Filling accuracy |
±1% |
Filling weight |
10-100ml |
Speed |
10-50 pcs/min |
Weight |
600kg |
Dimension |
1820*1360*1690mm |

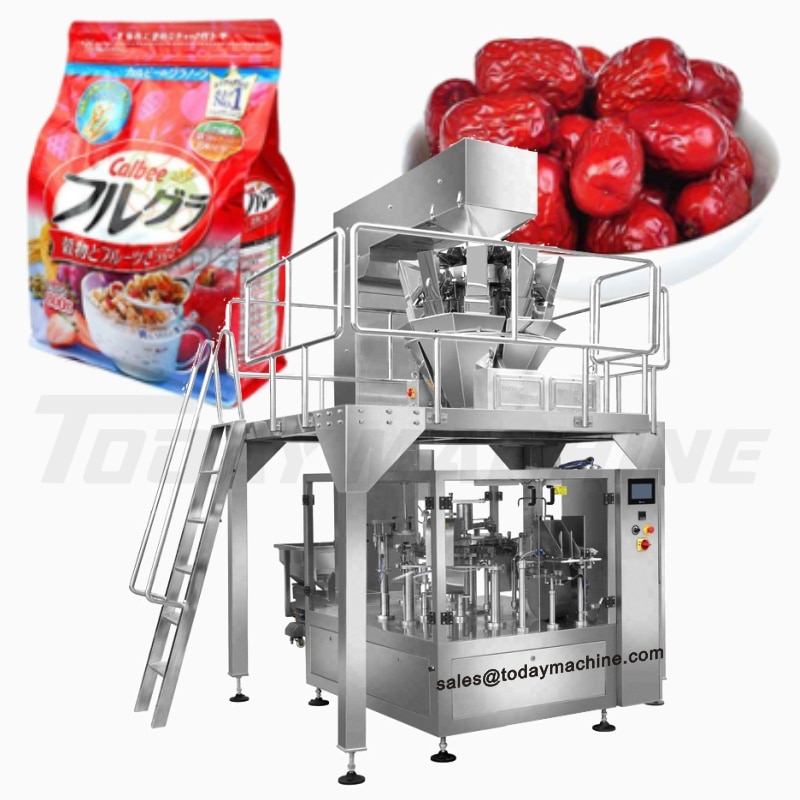

Automatic Rotary Pre-made Pouch Filling Packing Machine with 8 Stations
Application
Liquid/paste type: detergent, rice wine, soy sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam, chili sauce, bean paste, etc.
Block material: bean curd cake, fish, eggs, candy, red jujube, cereal, chocolate, biscuit, peanut, etc.
Granular type: crystal monosodium glutamate, granular drug, capsule, seeds, chemicals, sugar, chicken essence, melon seeds, nut, pesticide, fertilizer, etc.
Powder type: milk powder, glucose, monosodium glutamate, seasoning, washing powder, chemical materials, fine white sugar, pesticide, fertilizer, etc.
Class of pickles: pickled cabbage, kimchi, pickled cabbage, radish, etc.
Features
Easy to operate
Use professional PLC, touch screen and electric control system
Automatic checking: no pouch or pouch open error. No fill, no seal. Avoid wasting bag materials and raw products
Safety device: Machine stop at abnormal air pressure, heater disconnection alarm
Bag width adjustable by electrical motor
Bags suits in extensive range, suit for multi-layer compound, monolayer PE, PP and so on Preformed bag made by film and paper
Seal tight, no leakage
Full closed protective cover with auto shutdown trigger control.The machine will stop working when cover/door opens, protect the safety of operators and dust problems
Technical parameter
Model |
RFS8-200 |
Bag size |
W: 80-200mm |
Bag type |
Standup pouch |
Packing weight |
5-1500g |
Capacity |
35-60 pcs/min |
Air consumption |
0.4m3/min |
Power |
3.5kw |
Dimension |
5260x3610x3655mm |
Weight |
1000kg |
