bar soap wrapping machine pillow bag flow pack machine

bar soap wrapping machine pillow bag flow pack machine

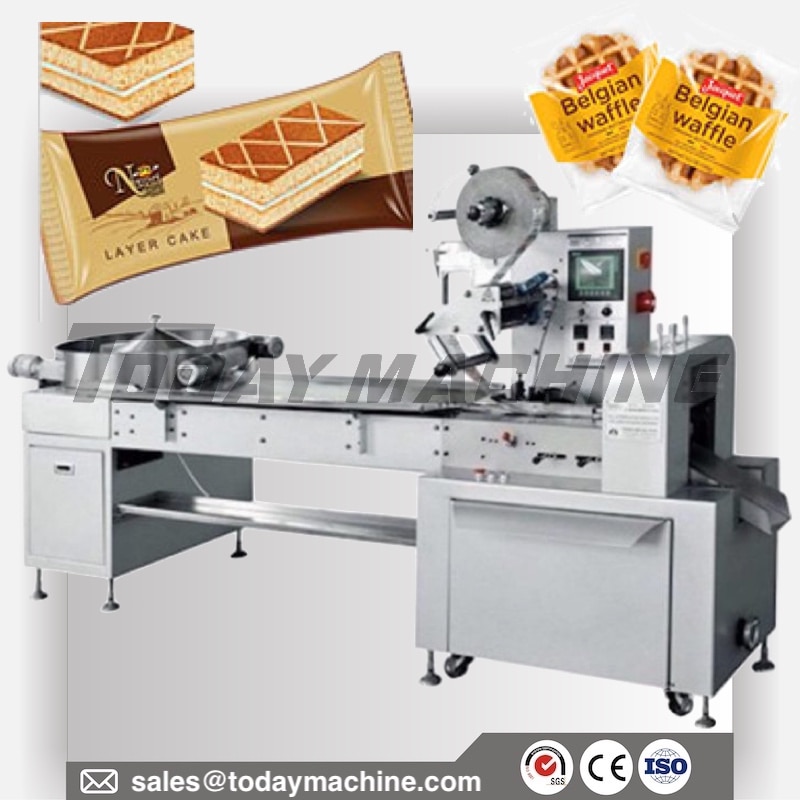

Horizontal Wrapping Machine/Flow Wrapper

biscuits, rice Krispies treats, snow cakes, breads, instant noodles, rice noodles, daily necessities, tissues, sanitary towels, industrial parts, paper boxes, tray…


Character

  • Dual servo motors and single frequency conversion control, bag length can be set and cut in one step, saving time and film.
  • Automatic stop in case of material absence, run film cutter stop, push material automatic make up.
  • Temperature control module inside, temperature independent PID control, accurate and suitable for packaging different material.
  • Prevent from cutting material function without stop, prevent from cutting material, improve the operating efficiency of the machine and reduce equipment loss.
  • Touch interface, easy and quick setting and operating. Self failure diagnosis, clear failure display.
  • Positioned stop function, without sticking cutter or wasting film.
  • All control is realized though software, easy for function adjusting and technical upgrade.

Option

  • Date coder
  • Gas flushing device
  • UV sterilization
  • Alcohol Spraying
  • Extruder device
  • Stacking device
  • Turntable device

Technical data

Model Speed
(pcs/min)
Max film width
(mm)
Bag size
(mm)
Power
(Single phase)
Dimension
(mm)
Weight
(kg)
FW-140 and lt;500 140 L: 45-80
W: 60-100
H:6-12
220V
50-60Hz
3.5kw
3800x1350x1450 980
FW-240 30-220 240 L: 75-190/150-350
W: 40-100
H: and lt;35
220V
50-60Hz
2.8kw
3900x840x1330 600
FW-280 30-220 280 L: 85-210/170-380
W: 40-125
H: and lt;45
220V
50-60Hz
2.8kw
3900x840x1330 600
FW-320 30-220 320 L: 110-250/200-420
W: 40-150
H: and lt;55
220V
50-60Hz
2.8kw
3900x840x1330 600
FW-450 20-200 450 L: 115-480
W: 80-215
H: 80
220V 50-60Hz
4.5kw
3900x840x1330 700
FW-600 20-100 600 L: 115-230
W: 40-280
H: 80
220V
50-60Hz
4.5kw
3900x840x1330 700
