Automatic Pure Drinking Mineral Sparkling Soda Flavored Water Bottling Plant Production Line

Automatic Pure Drinking Mineral Sparkling Soda Flavored Water Bottling Plant Production Line

The price is for reference only, the finial cost of the machinery and freight will be difference due to the configurations and addresses.

Contact us to get finial discount price.

Copy our official link:TodayMachine.com

Automatic Liquid Filling Production Line

For Honey, Hand Sanitizer, shower gel, detergent liquid, shampoo, beer, etc.


Application

Product: Liquid, gel, paste, oil, cream …

Container: plastic/glass bottle of round/square/special/hexagon…

Functions

Measure pump is piston measure pump, then the piston through across in the pump up-side and down-side movement to-and-fro.

After bottles in right position, the filling head will move up and down at the same time and enter into the bottle for filling

Hold the bottles complete filling for next procedures

Adopt high-strength stainless steel frame, easy disassembly and assembly, easy to clean, in line with GMP requirements.

With no bottle and no filling function, the liquid level automatically controls the feeding.

Easily adjust bottles of various shapes and specifications without replacing parts.

The filling head is equipped with a special leak-proof device, and there is no drawing or dripping in the filling.

Technical parameters

Model

LFL-1H

LFL-21H

LFL-4H

LFL-6H

Filler head

1 head

2 head

4 head

6 head

Filling speed

1800b/h

1600-2000b/h

1800-2400b/h

2400-3000v

Range

50-500ml
500-2500ml
1000-5000ml

50-500ml
500-2500ml
1000-5000ml

50-500ml
500-2500ml
1000-5000ml

50-500ml
500-2500ml
1000-5000ml

Error

Within 0.5g
(when 500ml)

Within 0.5g
(when 500ml)

Within 0.5g
(when 500ml)

Within 0.5g
(when 500ml)

Voltage

220v/380v
50hz

220v/380v
50hz

220v/380v
50hz

220v/380v
50hz

Air pressure

0.5-0.6Mpa

0.5-0.6Mpa

0.5-0.6Mpa

0.5-0.6Mpa

Weight

430kg

680kg

1140kg

1160kg

Dimention

800x1500x1600
mm

1200x1200x2100
mm

1600x1600x2200
mm

1600x1600x2200
mm

Bottle Weigher Line with belt conveyor

For granule, powder, pellet, block, etc.

Character

  1. Touch screen in multiple language

  2. Full stainless steel in GMP standard, match to food/industrial/chemical field

  3. Smart tracking one by one, from bottle can jar, any round/square containers possible

Technical parameter

Model

Weigher

Circle

Range

Error

Speed
(B/M)

Power

Weight
(kg)

Dimension
(mm)

DCSL-1H

1

1 bottle

10-100g
50-500g
100-1000g
200-2000g
500-5000g

±2g

10-30

220V
2kw

250

2000x900x1890

DCSL-2H

2

1 bottle
2 bottle

10-100g
50-500g
100-1000g
200-2000g

±2g

10-40

220V
2.5kw

300

2000x900x1890

DCSL-4H

4

1 bottle
2 bottle
4 bottle

10-100g
50-500g
100-1000g

±2g

10-40

220V
3.3kw

350

2000x900x1890

DCSL-10H

10

1 bottle

10-100g
50-500g
100-1000g

±2g

20-60

220V
3.3kw

400

2000x900x1890

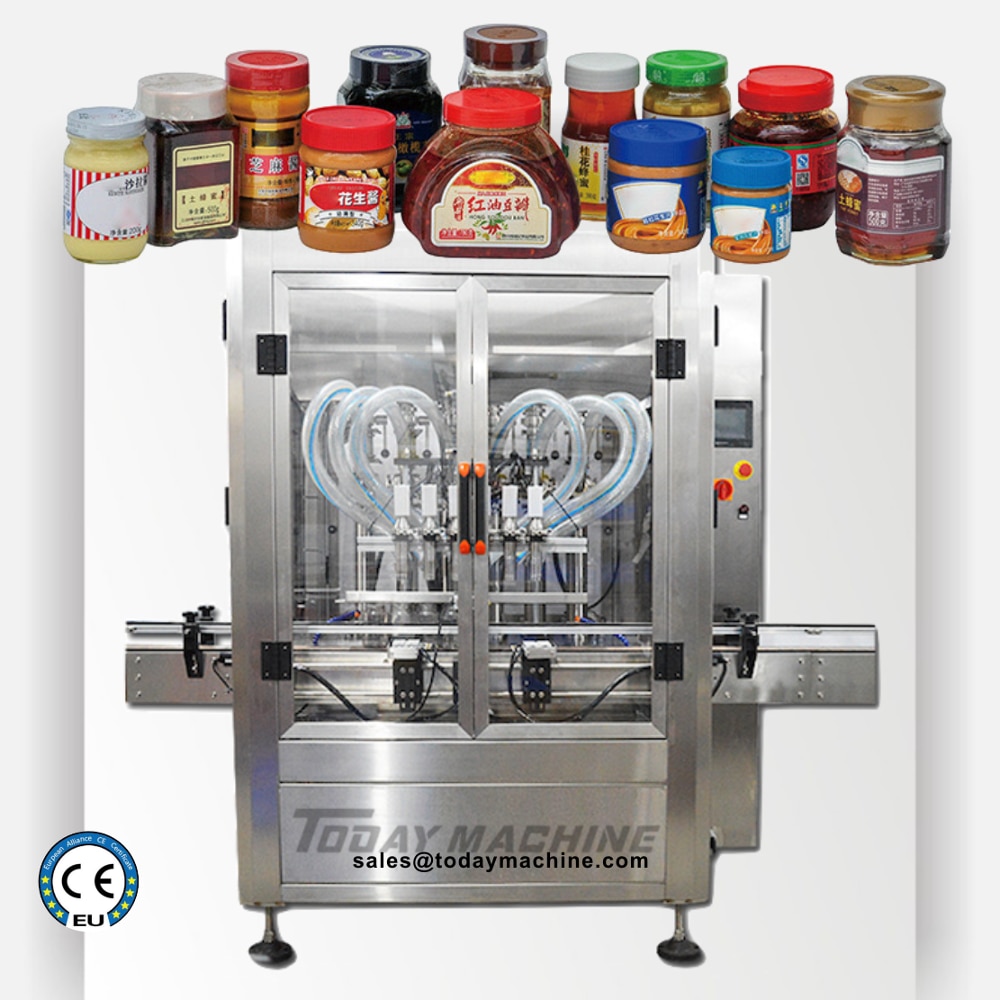

Automatic Bottle Liquid/Paste/Oil Filling Machine with Conveying Line

For Honey, Hand Sanitizer, shower gel, detergent liquid, shampoo, beer, ketchup, oil, etc.

Application

Product: Liquid, gel, paste, oil, cream …

Container: plastic/glass bottle of round/square/special/hexagon…

Functions

Measure pump is piston measure pump, then the piston through across in the pump up-side and down-side movement to-and-fro.

After bottles in right position, the filling head will move up and down at the same time and enter into the bottle for filling

Hold the bottles complete filling for next procedures

Adopt high-strength stainless steel frame, easy disassembly and assembly, easy to clean, in line with GMP requirements.

With no bottle and no filling function, the liquid level automatically controls the feeding.

Easily adjust bottles of various shapes and specifications without replacing parts.

The filling head is equipped with a special leak-proof device, and there is no drawing or dripping in the filling.

Technical parameters

Model

LFL-2H

LFL-4H

LFL-6H

LF-8L

LFL-12H

Filler head

2 head

4 head

6 head

8 head

12 head

Speed

5-20
b/min

10-20
b/min

10-30
b/min

15-40
b/min

30-80
b/min

Range

10-100ml
30-300ml
50-500ml
100-1000ml
300-2500ml
1000-5000ml

10-100ml
30-300ml
50-500ml
100-1000ml
300-2500ml
1000-5000ml

10-100ml
30-300ml
50-500ml
100-1000ml
300-2500ml
1000-5000ml

10-100ml
30-300ml
50-500ml
100-1000ml
300-2500ml
1000-5000ml

10-100ml
30-300ml
50-500ml
100-1000ml
300-2500ml
1000-5000ml

Error

Within 0.5g
(when 500ml)

Within 0.5g
(when 500ml)

Within 0.5g
(when 500ml)

Within 0.5g
(when 500ml)

Within 0.5g
(when 500ml)

Voltage

220v/380v
50-60hz

220v/380v
50-60hz

220v/380v
50-60hz

220v/380v
50-60hz

220v/380v
50-60hz

Air pressure

0.5-0.6Mpa

0.5-0.6Mpa

0.6-1Mpa

0.6-1Mpa

0.6-1Mpa

Weight

300kg

350kg

350kg

400kg

450kg

Dimention

2000x10200x1800
mm

2500x900x2200
mm

2500x900x2200
mm

2500x900x2200
mm

2500x900x2200
mm

Bottle Powder Filling Line by Auger with belt conveyor

Filling Powder automatically for bottle/can/jar/containers from glass, plastic, tin, aluminum …

Application

Powder from any possible chemical/food/medicine, such as coffee powder, flour, spice, detergent powder, makeup powder …

Character

Touch screen in Multiple Language

Smart tracking one by one, from bottle can jar, any round/square containers possible

Auger container volume options: 8L, 25L, 50L.

Technical Parameters

Model

Auger

Range

Speed
(B/M)

Accuracy

Power

Weight
(kg)

Dimension
(mm)

AFL-1H

1

1-10g/5-25g
10-100g/25-150g
50-300g
100-500g
200-1000g
500-2000g

10-30

±0.5%

220V
3kw

200

2000x900x1850

AFL-2H

2

1-10g/5-25g
10-100g/25-150g
50-300g
100-500g
200-1000g
500-2000g

10-40

±0.5%

220V
3.6kw

250

2000x900x1850

AFL-4H

4

1-10g/5-25g
10-100g/25-150g
50-300g
100-500g
200-1000g
500-2000g

20-50

±0.5%

220V
4kw

300

2000x900x1850

Strong Quality with Long-usage Life, Not the Cheap Ones.

We(Today Machine Team) don’t sell low quality with cheap tech then always repair and cuasing troubles. We are more up to stable machine with mature tech and amp; reliable program for clients under trustful relationship for lifetime.
