Description

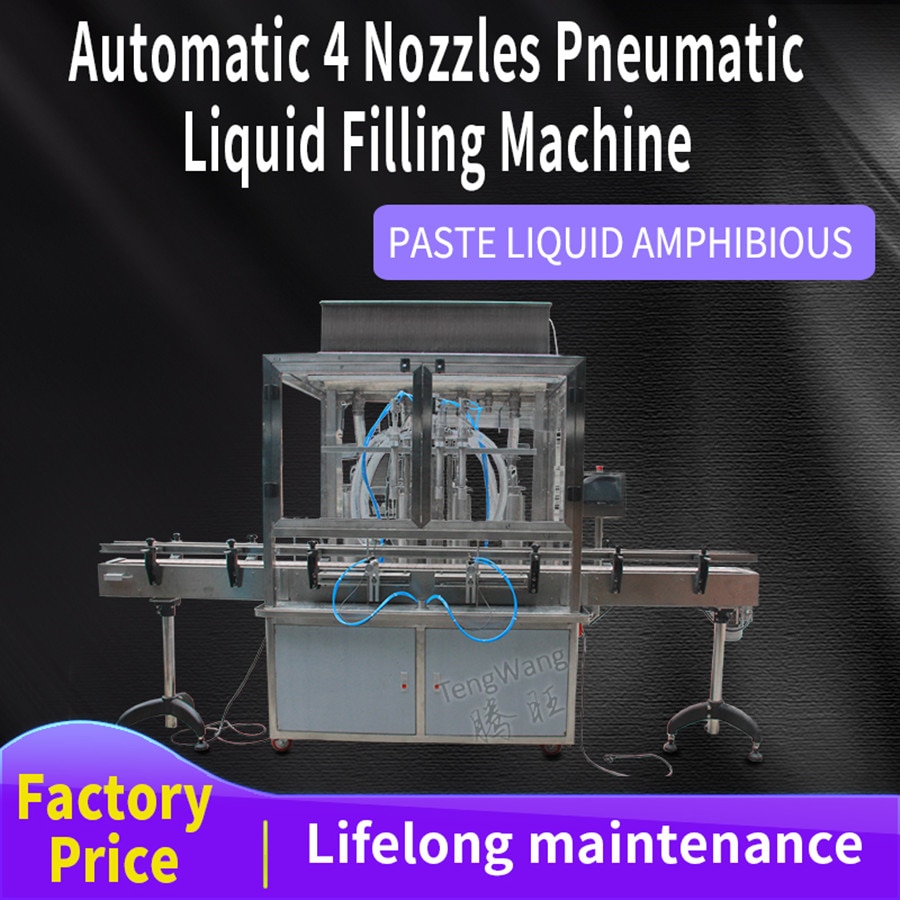

Automatic BottlingPasteFilling Machine
With4filling heads and4cylinders, quick and accurate filling possible.Suitable for such as Bottling filling for saucecream,liquid,oil cosmetic etc.Widely apply to manufacturer of oil,honey,oil ,shampoo,sauce,chemicals,medicine ,pharmaceutical etc,or any paste and liquid type industrial.
With Taiwan’s AirTac pneumatic elements and Taiwan’s electrical control parts adopted, its performance is stable.Machine Seals of Material house UsagePTFE.
Quality guaranteed by employing Korean AUTONICS photoelectric eyes, Taiwan’s PLC, touchable screen and frequency inverter, andChintelectrical elements.
Compact design, attractive appearance, convenient installation and filling adjustment, no missed filling and accurate filling dosage with a counter provided. Closure head preventing leakage and wire-drawing, filling elevating system preventing high froths, bottle top positioning system and liquid level control system provided.
Parameters
Model |
GT4T-4G |
Power supply |
220/110V 50/60HZ |
Air pressure |
0.6-0.8mpa |
Filling speed |
0-30bottles/min |
Filling accuracy |
±1% |
Filling range |
20-100ml,30-300ml,50-500ml,100-1000ml,500-2100ml,700-3000ml,1000-5000ml |
Power |
1kw |
Hopper |
200L |
Filling head |
4 |
Dimension |
2000*1000*1850mm |
Weight |
400kg |
