Standard
-
Intuitive operator guidance on the touch screen panel
-
Integration of all identification systems
-
Printed mark identification and amp; measurement of bag lengths
-
Use of different heat sealing and welding instruments
-
Minimal time required when changing rolls
-
Stop when film roll end. Detect the fault automatically.
-
Seal tight, no leaking.
-
Power supply: 110V, 120V, 220V, 240V. 50Hz, 60Hz.
Available option
-
Stainless steel and Paint version
-
Date and amp; batch printer
-
Date embossing system
-
Gas-flushing system
-
Exhaust sponge system, packet less/more air inside
-
Easy tearing notch
-
Round and Euro-hole punch, carrying handle punch
-
Numerical control cutter system, 1-99 packet
-
Frequency control system, less noise and amp; save energy
-
Full closed protective cover
-
Auto shutdown trigger when protective cover opens

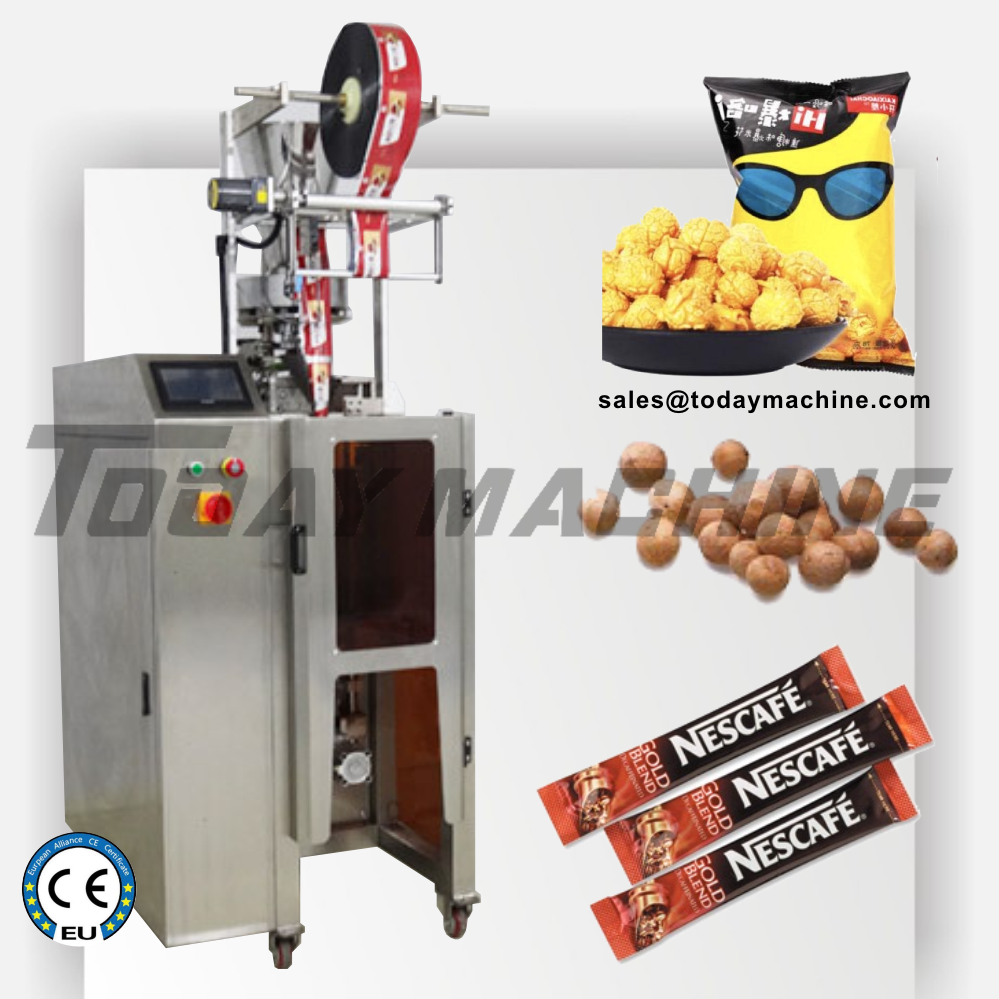

Granule/Powder Packaging Machine with Volumetric Cup System
Grain, Snack, Sugar, Spice, Rice, Popcorn, Seed, bean, Milk powder, Sliced Vegetable, Detergent, powder, Ground coffee, instant coffee, Talcum powder, desiccant…
|
Model |
VFFS-280C |
VFFS-280C-PLUS |
VFFS-450C |
VFFS-600C |
|
Film width |
Max 300mm |
Max 320mm |
Max 420mm |
Max 580mm |
|
Bag size |
L:30-175/190/210mm W:25-145mm |
L:40-240/280/380mm W:25-140mm |
L:50-275/295mm W:60-195mm |
L:50-380mm W:60-280mm |
|
Output |
40-90 pcs/min |
30-60 pcs/min |
15-40 pcs/min |
10-30 pcs/min |
|
Bag type |
Pillow seal 3 side seal 4 side seal gusset seal pyramid seal |
Pillow seal 3 side seal 4 side seal gusset seal |
Pillow seal 3 side seal 4 side seal gusset seal |
Pillow seal 3 side seal 4 side seal gusset seal |
|
Packing range (ml≠g) |
1-20g 10-100g Powder: 22-220ml Grain: 0.5-3ml 3-15ml 15-90ml 30-180ml |
20-130g 50-250ml |
100-500g 100/500-1000g 300-800ml 400-1000ml |
100-500g 100/500-1000g |
|
Dimension |
1200x1000x1750 mm |
1200x1000x2000 mm |
1300x1100x2100 mm |
1500x1300x2200 mm |
|
Total power |
1.5KW |
1.5KW |
2.6KW |
3KW |
|
Weight |
350kg |
400kg |
450kg |
520kg |
Powder Packaging Machine with Auger System
Flour, Cocoa powder, Coffee powder, Cocoa powder, Spice, seasoning, pepper,Chemical powder, Washing powder, Milk powder, protein powder…
|
Model |
VFFS-280A |
VFFS-280A-PLUS |
VFFS-450A |
VFFS-600A |
|
Film width |
Max 300mm |
Max 300mm |
Max 400mm |
Max 580mm |
|
Bag size |
L:30-175mm W:28-140mm |
L:40-190/240/275mm W:20-140mm |
L:50-275/295mm W:60-195mm |
L:50-380mm W:60-280mm |
|
Output |
30-60 pcs/min |
30-60 pcs/min |
15-36 pcs/min |
10-30 pcs/min |
|
Bag type |
Pillow seal, 3 side seal 4 side seal gusset seal pyramid seal |
Pillow seal, 3 side seal 4 side seal gusset seal |
Pillow seal, 3 side seal 4 side seal gusset seal |
Pillow seal gusset seal |
|
Packing range (ml≠g) |
0.3-0.6ml 0.5-3ml 2-10ml 8-20ml 15-90ml 20-100ml 50-200ml |
1-100g(10L hopper) 1-350g(25L hopper) 1-500g(50L hopper) |
50-200ml 100-500ml 200-1000ml |
50-200ml 100-500ml 200-1000ml 500-2000ml |
|
Power |
1.8KW |
2KW |
2.6KW |
3KW |
|
Dimension |
1200x1000x1660 mm |
1200x1000x1900 mm |
1200x110x2000 mm |
1500x1300x2200 mm |
|
Weight |
350kg |
400kg |
450kg |
520kg |
Liquid/Paste Packaging Machine with Pump volume control system
Juice, Honey, Ketchup, Peanut butter, Garlic sauce, Milk, condensed milk, Shampoo, gel, emulsion, lotion, Liquid detergent, liquid soap, oil, cream, glue …
|
Model |
VFFS-280LP |
VFFS-280LP-PLUS |
VFFS-450LP |
VFFS-600LP |
|
Film width |
Max 300mm |
Max 320mm |
Max 420mm |
Max 580mm |
|
Bag size |
L:30-175/190/210mm W:18-140mm |
L:40-240/275/380/430mm W:20-140mm |
L:50-275/295mm W:60-195mm |
L:50-380mm W:60-280mm |
|
Output |
30-60 pcs/min |
30-60 pcs/min |
15-30 pcs/min |
10-30 pcs/min |
|
Bag type |
Pillow seal 3 side seal 4 side seal pyramid seal Gusset seal |
Pillow seal 3 side seal 4 side seal |
Pillow seal 3 side seal 4 side seal Gusset seal |
Pillow seal 3 side seal 4 side seal Gusset seal |
|
Packing range (ml≠g) |
5-45ml 10-100ml 20-150ml 50-280ml |
25-280ml 50-500ml 200-900ml |
50-280ml 100-550ml 200-900ml 200-1100ml 200-1400ml |
50-280ml 100-550ml 200-900ml 200-1100ml 200-1400ml |
|
Dimension |
1150x1000x1760 mm |
1100x1000x2000 mm |
1400x1100x2150 mm |
1500x1300x2300 mm |
|
Power |
2KW |
2.2KW |
2.6KW |
3KW |
|
Weight |
350kg |
400kg |
460kg |
550kg |
Flowability Liquid Stick Packaging Machine
Juice, Water, Jelly, Ice pop, ice lolly…
|
Model |
VFFS-280LS |
|
Film width |
Max 100mm |
|
Bag size |
L: 40-275/295mm W: 10-30mm |
|
Output |
40-80 pcs/min |
|
Bag type |
Stick seal |
|
Range |
Gravity with Level Control10-150ml |
|
Power |
1.2KW |
|
Dimension (L*W*H) |
1100x900x1900mm |
|
Weight |
380kg |
Irregular Products Packaging Machine with Skip Bucket
Irregular items
|
Model |
VFFS-280B |
VFFS-280B-PLUS |
VFFS-450B |
VFFS-600B |
|
Film width |
Max 300mm |
Max 300mm |
Max 420mm |
Max 580mm |
|
Bag size |
L:40-175/190/210mm W:30-140mm |
L:40-240/280/380mm W:30-140mm |
L:50-275/300mm W:60-195mm |
L:50-380mm W:60-280mm |
|
Output |
30-70 pcs/min |
30-60 pcs/min |
15-40 pcs/min |
10-30 pcs/min |
|
Bag type |
Pillow seal 3 side seal 4 side seal gusset seal pyramid |
Pillow seal 3 side seal 4 side seal gusset seal |
Pillow seal 3 side seal 4 side seal gusset seal |
Pillow seal gusset seal |
|
Packing range (ml≠g) |
0-100g |
0-100g |
100-500g |
100-1000g |
|
Power |
1.8KW |
1.8KW |
2.6KW |
3KW |
|
Dimension |
1100x1200x1750mm |
1100x1200x2000mm |
1200x1100x2100mm |
1500x1300x2200mm |
|
Weight |
380kg |
420kg |
450kg |
550kg |
Tablet Packaging Machine with Counting System
Pill, Camphor pills, Round subject, Milk chewable tablets, Walnut, Chocolate beans, candy …
|
Model |
VFFS-280CT |
VFFS-280CT-PLUS |
VFFS-450CT |
|
Film width |
Max 300mm |
Max 300mm |
Max 420mm |
|
Bag size |
L:30-175mm W:60-145mm |
L:50-190/210/240/275mm W:60-145mm |
L:50-280mm W:60-195mm |
|
Output |
30-76 pcs/min |
30-60 pcs/min |
15-36 pcs/min |
|
Bag type |
Pillow seal 3 side seal 4 side seal gusset seal |
Pillow seal 3 side seal 4 side seal gusset seal |
Pillow seal 3 side seal 4 side seal gusset seal |
|
Packing range |
1-100 tablets |
1-100 tablets |
1-100 tablets |
|
Dimension |
1100x1000x1760 mm |
1100x1000x2000 mm |
1200x1100x2100 mm |
|
Total power |
2KW |
2KW |
2.6KW |
|
Weight |
350kg |
400kg |
450kg |
Powder/Granule+Liquid/Paste 2 in 1 Packaging Machine
C: Volumetric cup system(for granule/powder)
A: Auger system(for powder)
LP: pump system(for liquid/paste)
|
Model |
Range |
Bag Length Width (mm) |
Speed (b/min) |
Bag type |
Weight (kg) |
Dimension (mm) |
|
VFFS-280 C+LP Granule+liquid/paste |
C:1-20g 10-100g LP:5-45ml 10-100ml |
L: 30-175 W:20-145 |
20-60 |
Pillow 3 side 4 side gusset |
400 |
1100×1250 x1700 |
|
VFFS-280 A+LP Powder+liquid/paste |
A:2-10ml 8-20ml 15-90ml 20-100ml 50-200ml LP:5-45ml 10-100ml |
L: 30-175 W:20-145 |
20-60 |
Pillow 3 side 4 side gusset |
400 |
1100×1250 x1700 |
|
VFFS-280 C+LP-PLUS Granule+liquid/paste |
C:1-20g 10-100g LP:25-280ml 50-500ml |
L:40-190/240/275 W:20-140 |
30-60 |
Pillow 3 side 4 side |
440 |
1000×1300 x1700 |
|
VFFS-280 A+LP-PLUS Powder+liquid/paste |
A:1-100g 1-350g 1-500g LP:25-280ml 50-500ml |
L:40-190/240/275 W:20-140 |
30-60 |
Pillow 3 side 4 side |
440 |
1000×1300 x1700 |
|
VFFS-450 C+LP Granule +liquid/paste |
C:100-500g 500-1000g LP:10-100ml 50-280ml 50-500ml |
L:50-275/295 W:60-195 |
10-30 |
Pillow gusset |
480 |
1200×1300 x2000 |
|
VFFS-450 A+LP Powder +liquid/paste |
A:100-500g 500-1000g LP:10-100ml 50-280ml 50-500ml |
L:50-275/295 W:60-195 |
10-30 |
Pillow gusset |
480 |
1200×1300 x2000 |
Liquid + Paste 2 in 1 Automatic Packaging Machine
Liquid/oil+Paste/Sauce
|
Model |
VFFS-280L+P |
VFFS-280L+P-PLUS |
VFFS-450L+P |
|
Film width |
Max 310mm |
Max 310mm |
Max 410mm |
|
Bag size |
L:30-175/190/210mm W:10-145mm |
L:40-240/280/380mm W:15-140mm |
L:50-275/295/380mm W:60-195mm |
|
Output |
20-60 pcs/min |
20-60 pcs/min |
15-35 pcs/min |
|
Bag type |
Pillow seal 3 side seal 4 side seal |
Pillow seal 3 side seal 4 side seal |
Pillow seal 3 side seal 4 side seal |
|
Packing range |
5-45ml 20-100ml 50-280ml |
5-45ml 5-100ml 50-280ml 100-550ml 100-1000ml |
50-280ml 100-550ml 200-900ml 100-1000ml |
|
Dimension |
1100x1000x1760mm |
1100x1000x1900 mm |
1200x1100x2000mm |
|
Power |
2KW |
2.4KW |
2.7KW |
|
Weight |
380kg |
420kg |
460kg |
Multi Lane 4 side seal Packaging Machine
Liquid/Paste.
Application
Mainly Packaging the liquid or paste in small sachet at high speed, such as shampoo, lotion, hand washing, liquid soap,liquid flavors, juice, oil, jam, honey etc.
Main Features
The multilane four side sachet packing Machine is optional for complete or partial stainless steel and all out equipment have received the CE certificate.
Program controller, advanced inverter, and imported power switch.
English screen display, operation is simple and reliable.
Stainless steel build, food grade standard.
More lanes available.
|
Model |
VFFS-M4-500LP |
VFFS-M4-600LP |
VFFS-M6-500LP |
VFFS-M6-600LP |
|
Lane |
4 |
4 |
6 |
6 |
|
Max Film width |
500mm |
600mm |
500mm |
600mm |
|
Bag type |
4 side seal |
4 side seal |
4 side seal |
4 side seal |
|
Bag size |
L:30-150mm W: 25-57mm |
L:30-150mm W: 25-75mm |
L:30-150mm W: 25-38mm |
L:30-150mm W: 25-50mm |
|
Range |
1-10ml 10-100ml |
1-10ml 10-100ml |
1-10ml 10-100ml |
1-10ml 10-100ml |
|
Speed |
100-160 bag/min |
100-160 bag/min |
160-240 bag/min |
160-240 bag/min |
|
Power |
3kw |
3kw |
3kw |
3kw |
|
Power supply |
220V 50Hz 110V 60Hz |
220V 50Hz 110V 60Hz |
220V 50Hz 110V 60Hz |
220V 50Hz 110V 60Hz |
|
Dimension |
990x1150x1800 mm |
1100x1150x1800 mm |
990x1150x1800 mm |
1100x1150x1800 mm |
|
Weight |
400kg |
420kg |
400kg |
420kg |
Granule/Powder Packaging Machine with Linear Weigher
Grain, Snack, Rice, Popcorn, Seed, bean, Sugar, salt, Sliced Vegetable, Cornmeal …
|
Model |
Film width (mm) |
Bag size (mm) |
Speed (pcs/min) |
Range |
Power |
Weight (kg) |
Size (mm) |
|
VFFS280 +DCS2 |
Max 320 |
L:40-175/275 W:20-145 |
20-40 |
10-100g 10-300g 10-600g |
2kw |
300 |
1100x1000x1900 |
|
VFFS280 +DCS4 |
Max 320 |
L:40-175/275 W:20-145 |
40-70 |
10-100g 10-200g |
2.3kw |
390 |
1100x1000x1900 |
|
VFFS450 +DCS2 |
Max 420 |
L:50-275 W:60-195 |
10-30 |
10-300g 100-1000g |
3.3kw |
400 |
1200x1100x2000 |
|
VFFS450 +DCS4 |
Max 420 |
L:50-275 W:60-195 |
20-50 |
10-200g 100-1000g |
3.5kw |
420 |
1200x1100x2000 |
Automatic Collar type Packaging Machine
Grain, Powder, Liquid, Paste/Sauce
|
Model |
VFFS-FL320 |
VFFS-FL420 |
VFFS-FL520 |
|
Film width (mm) |
Max 320 |
Max 420 |
Max 520 |
|
Bag size (mm) |
L:50-180 W:45-140 |
L:80-220 W:70-200 |
L:80-400 W:50-250 |
|
Output (pcs/min) |
50-90 |
30-80 |
10-50 |
|
Bag type |
3 side seal 4 side seal Pillow seal Gusset seal |
3 side seal 4 side seal Pillow seal Gusset seal |
Pillow seal Gusset seal |
|
Filling system |
Volumetric Cup Auger Pump Weigher |
Volumetric Cup Auger Pump Weigher |
Volumetric Cup Auger Pump Weigher |
|
Air pressure |
0.65mpa |
0.65mpa |
0.65mpa |
|
Air consumption |
0.3m3/min |
0.3m3/min |
0.3m3/min |
|
Size (mm) |
1080x980x1880 |
950x1500x2050 |
1317x1115x1443 |
|
Weight |
400kg |
440kg |
750kg |
Teabag/coffee pod/custom shape sachet packaging machine
By filter paper, plastic, nylon, non woven…
Application
Small
Automatic Tea Bag Packing Machine is suitable for the dual bag packing of small
grain or powder materials, such as tea leafs, medicinal tea and healthy teas,
Feature
This machine
is hot-sealed, automatic and multifunction packing equipment.
The main
characteristic of this equipment is it can molding in one time to protect the
material from the direct contact with workers’hands and improve the efficiency.
The inner bag
is filter paper, tagging with thread and label automatically.
The outer bag
is composite paper (including various kinds of composite membrane hot sealable
such as paper/plastic, plastic/plastic, plastic/aluminum/plastic,
paper/aluminum/plastic.)
The most advantage is, the capacity, the inner bag and outer bag can be
adjuster flexibly, and the size of the inner and outer bag also can be adjuster
according to the requirement of the customer to get the perfect effect
|
Model |
VFFS-R |
VFFS-UL |
VFFS-PTL |
VFFSL-TL |
VFFS-TLO |
|
Function |
Coffee Pod customized shape |
Ultrasound Packet |
Pyramid bag +thread +Label |
Inner bag +thread +Label |
Inner bag +thread +Label +outer bag |
|
Packing material |
Filter paper Non-woven Plastic |
Non-woven |
Nylon PLA Non-woven PET |
Filter paper Plastic |
Filter paper Plastic |
|
Output (Bags/min) |
30-60 |
20-40 |
40-60 |
30-60 |
20-50 |
|
Max.dosage |
1-10g 10-50g |
1-20g |
10ml |
15ml (5g) |
15ml (5g) |
|
Film width (mm) |
– |
Max 260 |
120 140 160 |
Inner 100-160 |
Inner 100-160 Outer 120-200 |
|
Bag (L*W;mm) |
Round Custom design |
(50-180)*(50-130) |
Pyramid (40-80)*(60-80) |
3 side (50-70)*(50-80) |
3 side (50-70)*(50-80) |
|
Label/Tag (L*W;mm) |
– |
– |
– |
(20-40)*(40-55) |
(20-40)*(40-55) |
|
Power (Kw) |
1.5 |
2 |
2.2 |
3 |
3.5 |
|
Weight (Kg) |
380 |
400 |
480 |
450 |
500 |
Strong Quality with Long-usage Life, Not the Cheap Ones.
We(Today Machine Team) don’t sell low quality with cheap tech then always repair and cuasing troubles. We are more up to stable machine with mature tech and amp; reliable program for clients under trustful relationship for lifetime.
