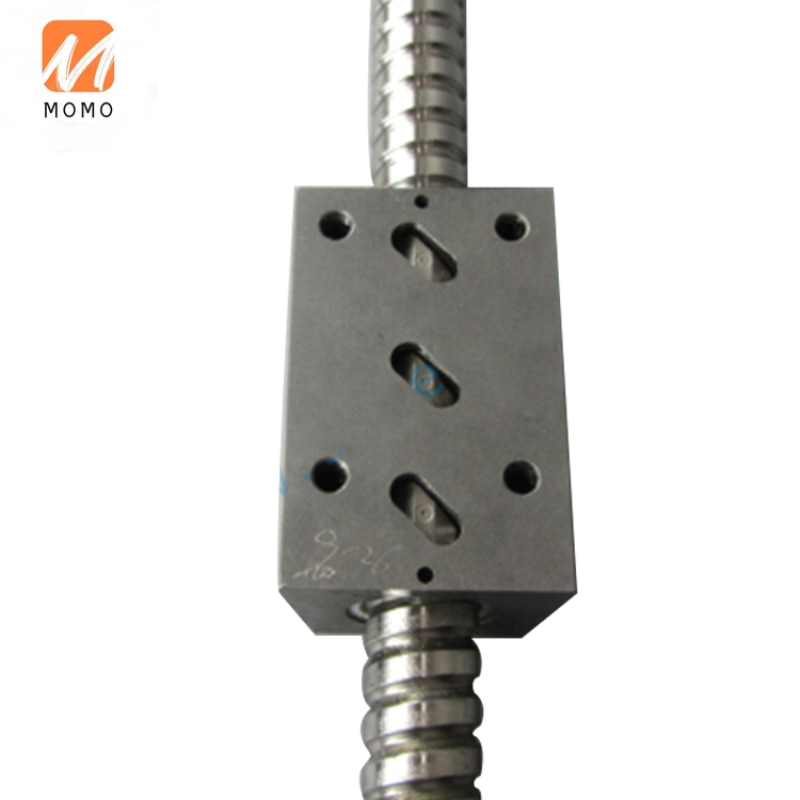

25mm customized ball screw 2510  for grinding machine


Product Name

Ball screw
Material

Stainless steel or bearing steel GCr15 ;  others available upon request
Axial play

Zero or as per your request
Accuracy Grade

C3 C5 C7
Circulation mode

Internal recirculation or cover plate or end cap
Application Automatic controlling machines, semi-conductor industry, general industrial machinery, machine tools, medical equipment, parking systems, measuring instrument, Automatic computer strip machine, Gantry cranes, Gantry robot, 3D engraving machine etc.
Remark

Various ballnuts are available upon drawing




Features of our mini ball screw

Zero Axial play
Smooth running
Long service life
High mechanical efficiency
Accuracy grade of C3, C5, C7



Miniature ball screw Ranges:

Norminal diameter: 4~12mm    Lead:1~10mm

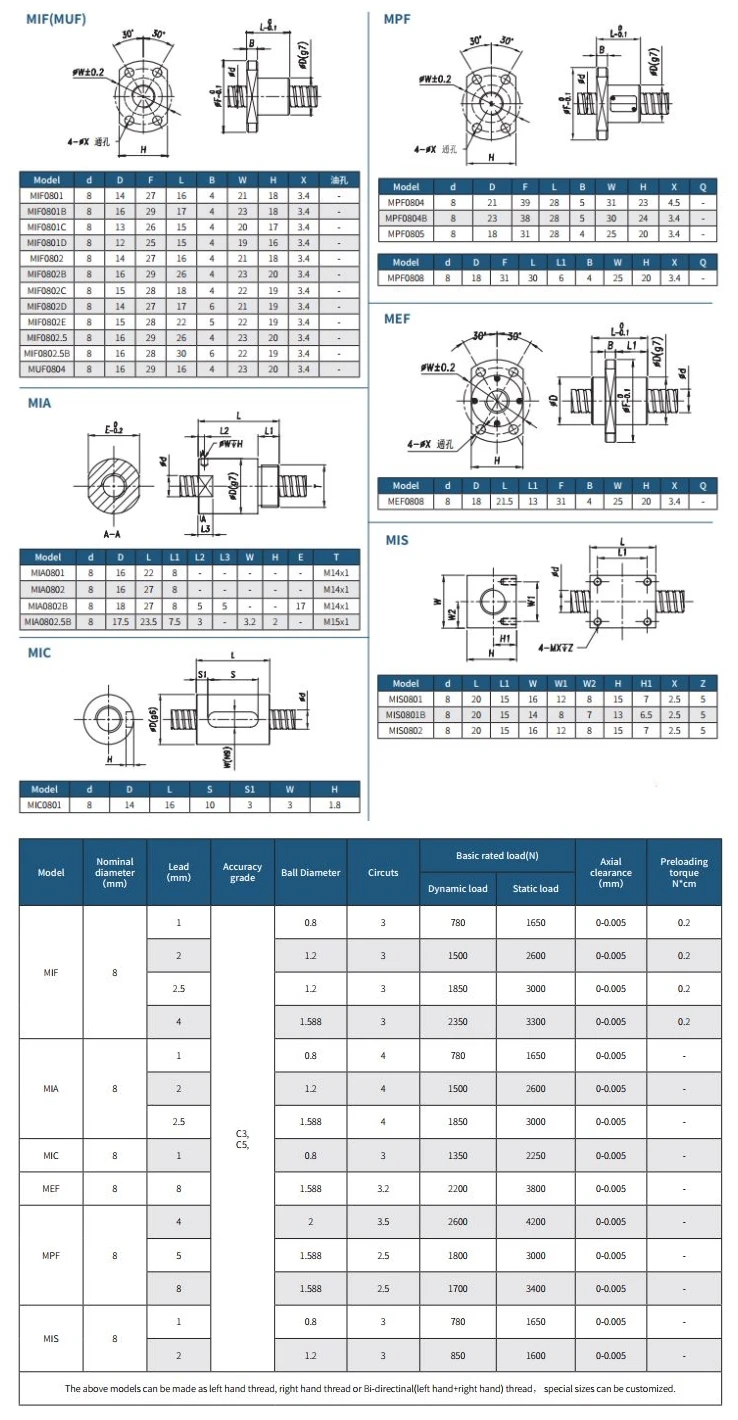

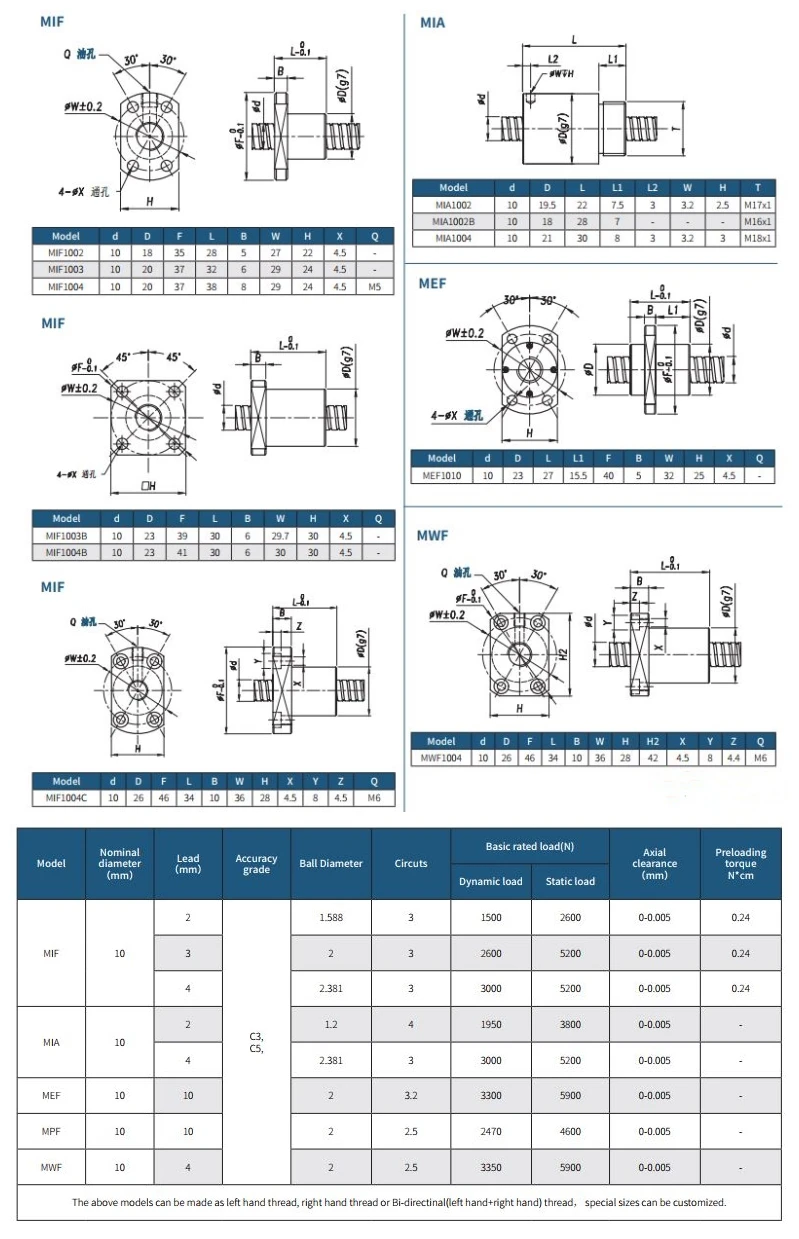

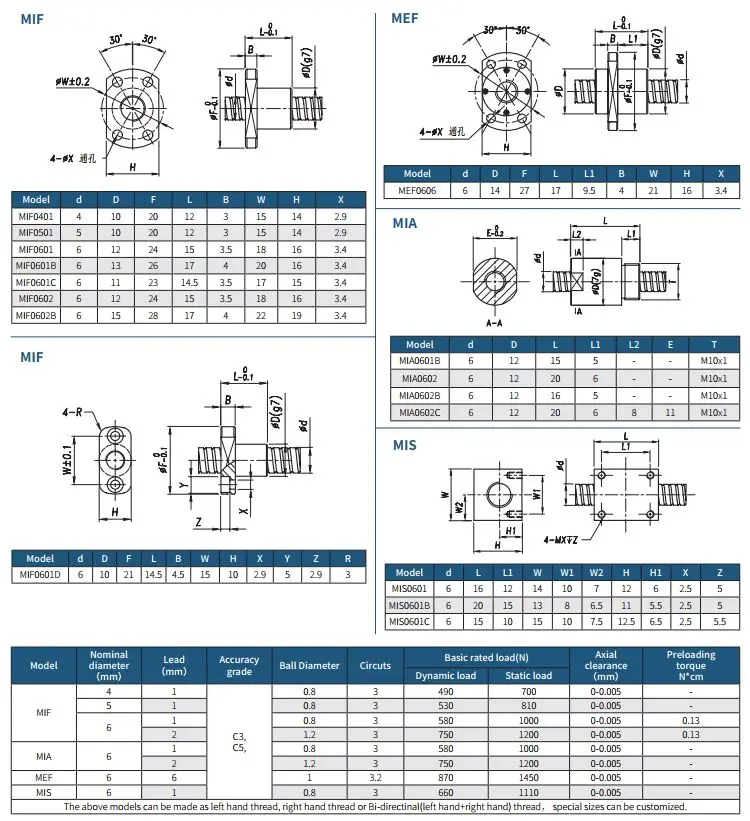

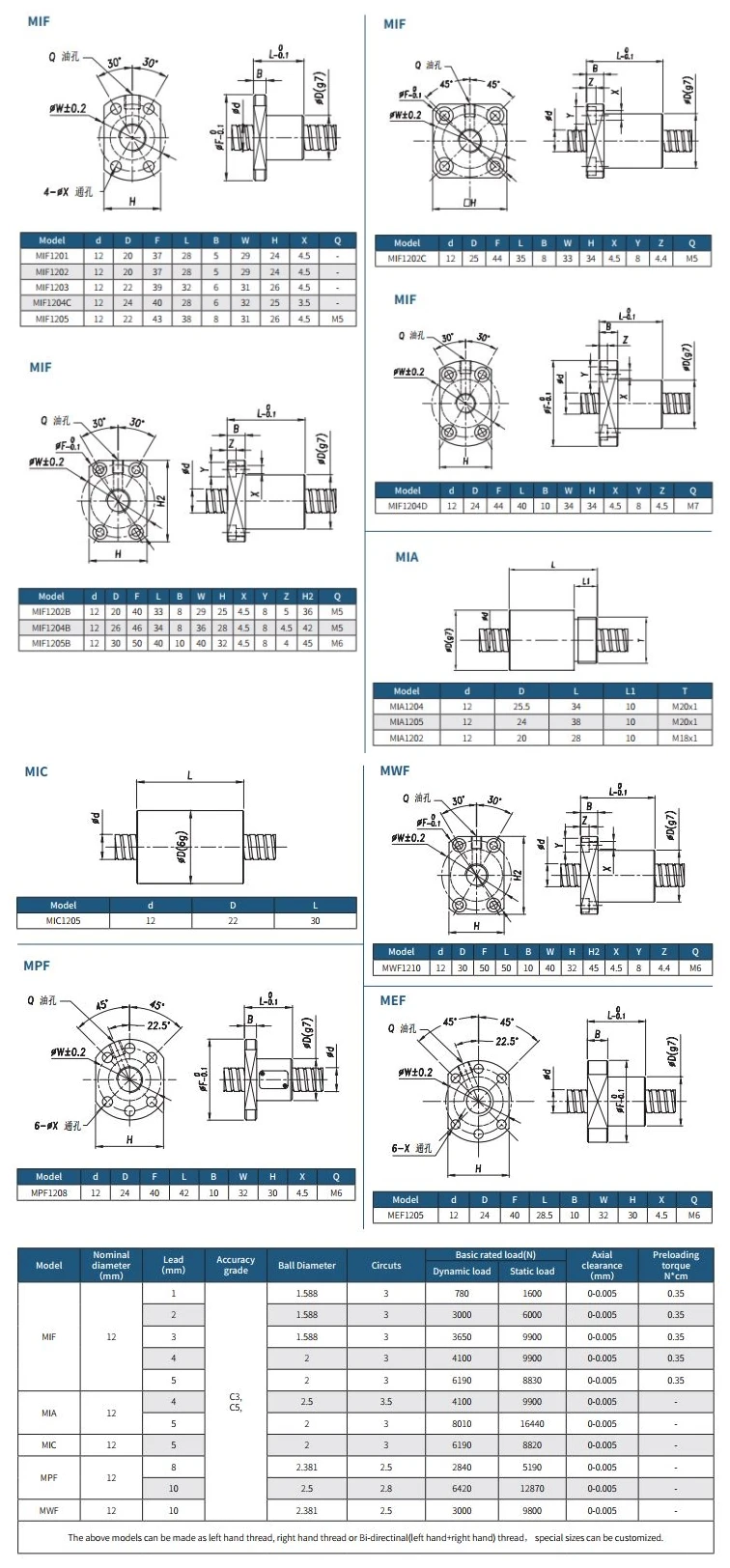

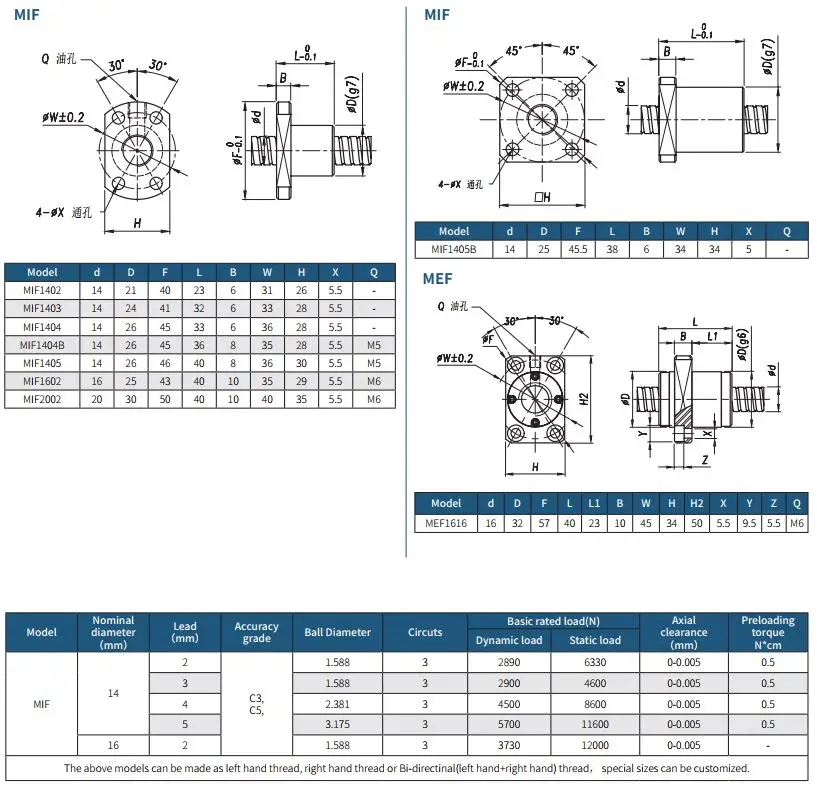

Better nut geometry:

a.MIF series(round nut with flange).Threaded hole on flange for easy mounting

b.MIA series(round nut without flange).Threaded nose on ballnut for easy integration into any assembly.Compact nut design ball screw.

c.MIC series(cylindrical nut without flange).Keyway on ballnut for mounting



Available models:

Diameter 4mm,available pitch 1mm

Diameter 5mm,available pitch 1mm 2mm

Diameter 6mm,available pitch 1~6mm

Diameter 8mm,available pitch 1~8mm

Diameter 10mm,available pitch 1~10mm

Diameter 12mm,available pitch 1~10mm

Some unique models from us: 0401,0501,0502, 0601, 0601.5, 0602, 0602.5, 0801, 0801.5, 0602RL, 0802RL, 0704, 1003, 1102, 1404, 1520, 2302, 2505, 2506 etc.

Miniature ball screw application field:

3C Intelligent Manufacturing, new energy automobile, defense industry, power tools, medical industry, passenger cars, wire harness cable processing, laser machine, 3D printer, custom automation equipment,linear servo actuator etc..

Related products

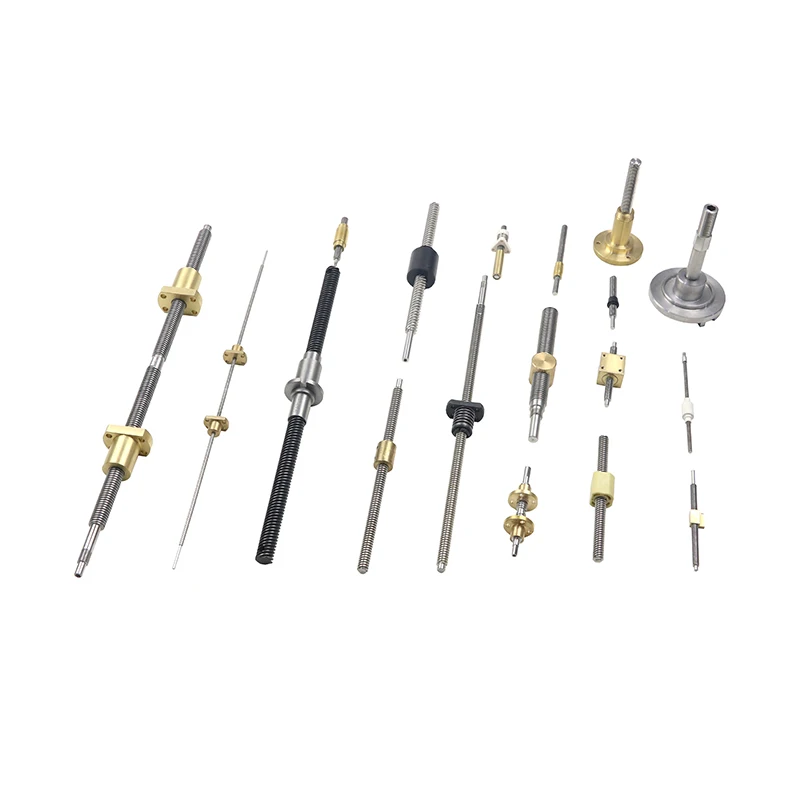

Lead Screw

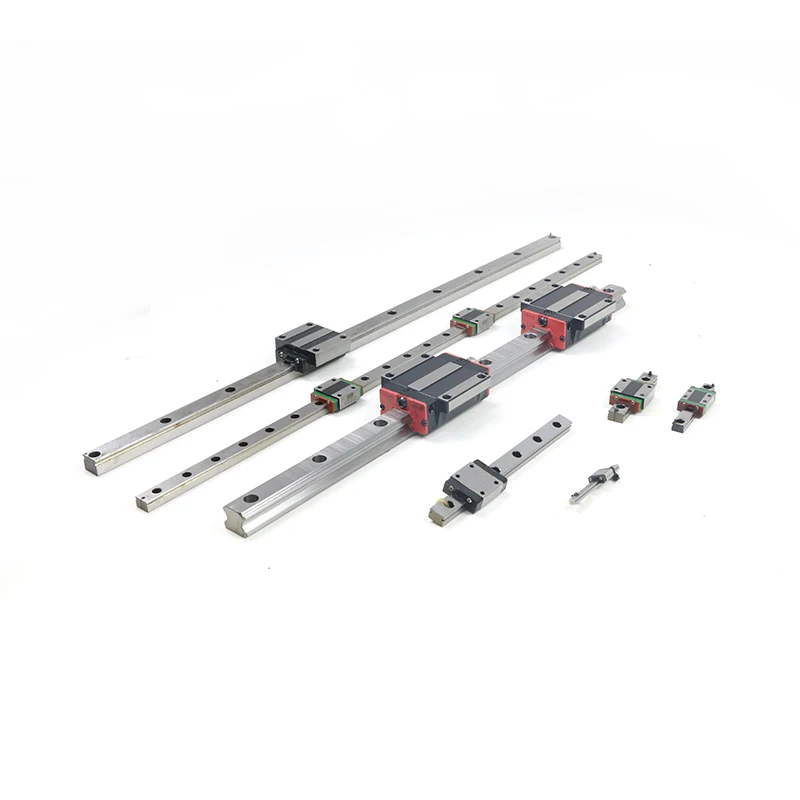

Linear Guideways

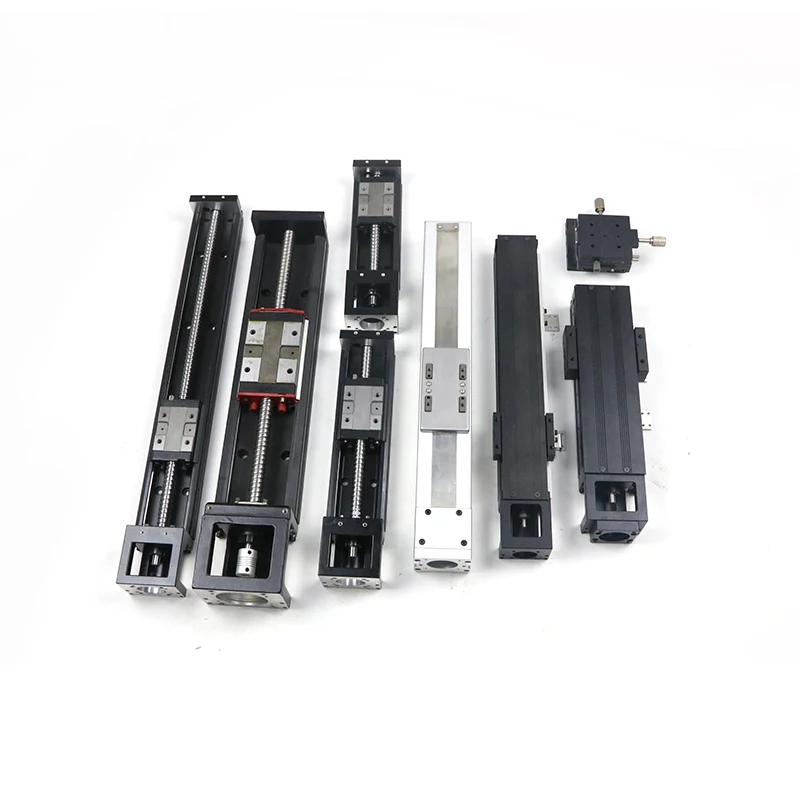

Linear Module

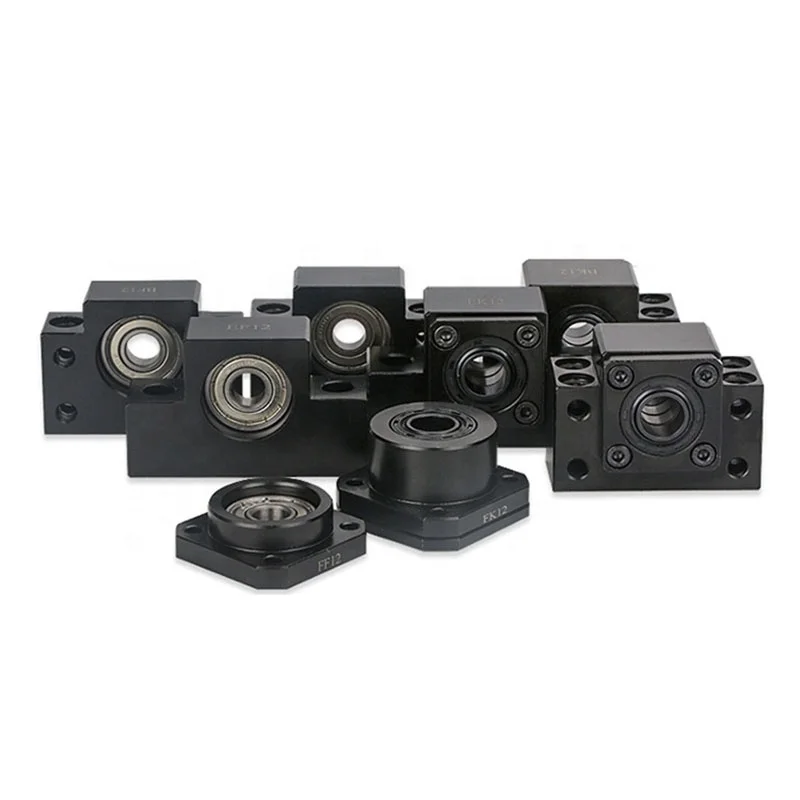

Support Unit
