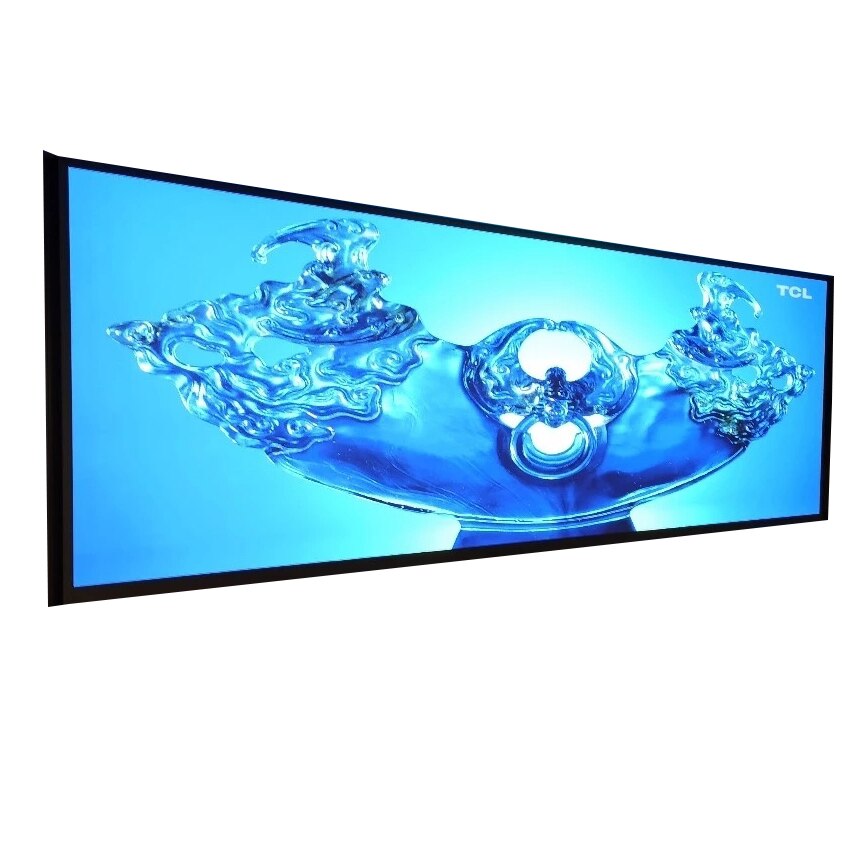

Video wall led p1.56 full front service indoor smd 1010 led video screen panel

Video wall led p1.56 full front service indoor smd 1010 led video screen panel

Product Overviews

Specification
Pixel  Pitch(mm) 1.56mm
LED  Type smd
LED  Configuration 1R1G1B
LEDs SMD1010
Refresh  Rate(Hz) ≥3840Hz
Module  Resolution  (PXxPX) 128*108
Module  Size  (mmxmm) 200mm*168.75mm
Max  Current 6A
Input  Voltage 5V
Module  max  power  consumption 6.5W
Scanning  mode 1/45
Horizontal  Viewing  Angle(Deg) ≥170(+10/-10)
Vertical  Viewing  Angle(Deg) ≥170(+10/-10)
Brightness and gt;=600  CD/m2
Grey  Scale and gt;14bit
Cabinet  Resolution(PXxPX) 384*216
Cabinet  Size 600mm*337.5mm
Cabinet  Density  (dot/sqm) 409600Dots/m2
Malfunction  Dot  Rate and lt;0.3%
Power  Supply DC 5V
Working  Temperature(℃) -40-60℃
Working  Humidity 10%-90%  RH
Lifespan(H) ≥50,000





Our Advantages

Excellent visual experience

With a large viewing angle of 170°, it is a central viewing angle from any angle, ensuring consistent color and brightness at any angle.

16:9 Design
16:9 cabinet size design, point-to-point matching 2K/4K/8K standard resolution; front maintenance design, wall-mountable installation, easy installation and maintenance; automatic brightness adjustment technology, ensuring viewers in any environment to watch comfortably; support power and signal redundancy backup to meet the needs of high security applications.





Installation way: mounted on the wall with brackets

Technology

With vertical and horizontal directional ≥170 degrees ultra-wide viewing angle, viewing no dead angle, no color cast, the image is always perfectly seamless and uniform.







With vertical and horizontal directional ≥170 degrees ultra-wide viewing angle

Flat surface, the image is always perfectly seamless and uniform

 viewing no dead angle, no color cast

Applications





Our Services
A: 24 Hours After sales support,professional support,manual book, and remote control if customer need it,not only sell display to you,but more supports.
B: Real Taiwan Chip + High quality suit, CE,ROHS,FCC certification factory.
C: Sure Dispaly from factory is 100% test done and not any quality problems, we will responsibile it if have any quality problems.
D: We offer 2 years warranty to our product.
E: Customized design is available.
F: Special discount are offered based on order quantity. Welcome to contact us.
