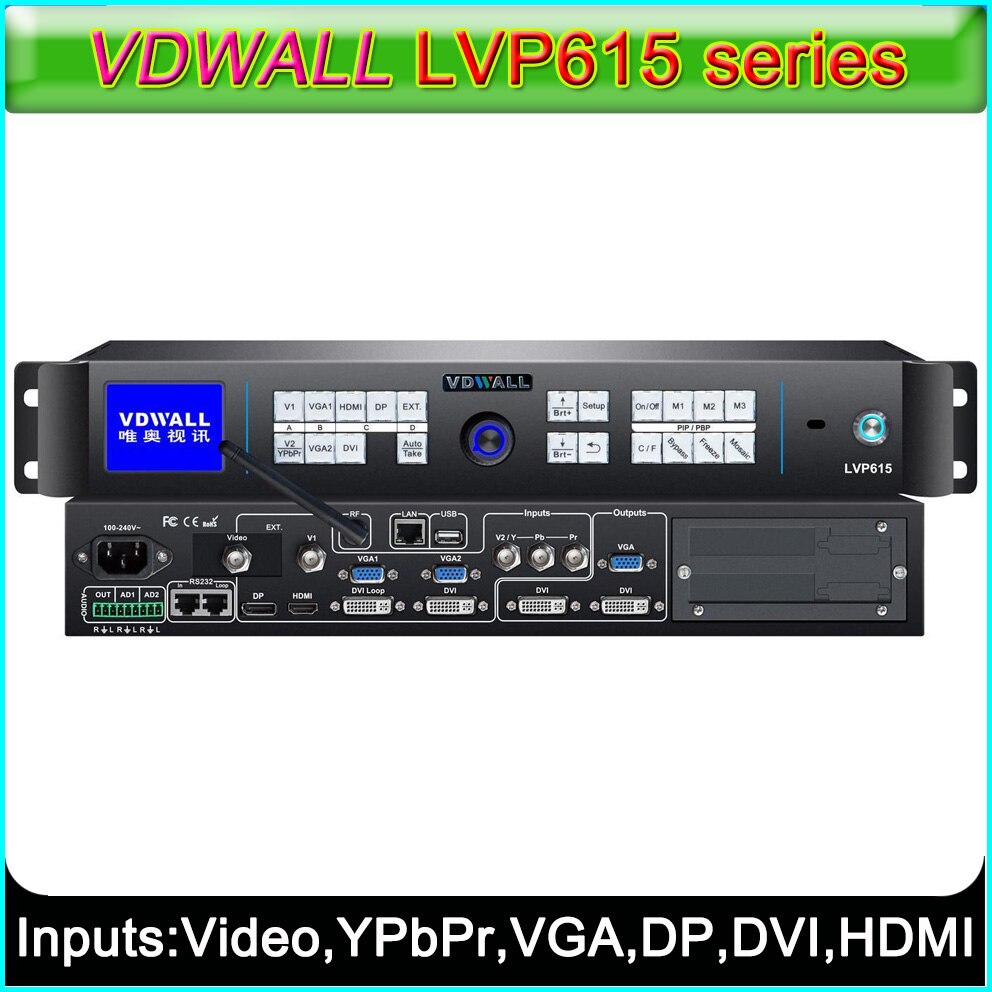

VDWALL LVP615 series
LED HD Video Processor
wireless WI-FI control and amp;remote control pip/pbp,text overlay synchronic Multi-unit In Parallel
Features
1. New generation Faroudja® Real Color® professional LED video processor ， 10+ Bit Faroudja® DCDI Cinema Processing Faroudja® TureLife™ videoenhancer.
2.SeamlessSwitching、FadeinFadeoutSwitching、Blend Switching
3.Twosignalswitching ways：one keyswitchandPre.+Takeswitch
4. 3 sets of custom dualpicture display mode, one key switch between modes. Any PIP/PBP display. AIAO(Any In Any Out) function, any interception andanyoutput.
5. Inputsignalhotsparefunctiontoensureoutputmorestable.
6. CustominputDVIEDIDtorealizeperfectpixeltopixeldisplay.
7.Custom output format. Single unit maximum output horizontal 3840 pixelsorvertical1920pixels.
8. DVI input port supports APPLE PC. DVI Loop unlimited cascade to realize sync. mosaic to drive indefinite LED lattice. Frame sync technology . No miss alignment or delay between two adjacent image outputs.
9.Avariety ofcontrolmethods：wirelessWIFI、 IP/LAN、 frontpanelbutton、 infraredremote control、PC software，Ipad、mobile phone terminaland etc..Flexibleoperation.
10.2 channels configurable external audio inputs. Plus HDMI、DP and SDI audiototal5channelsaudiosyncswitch.
11. Built in 2 pieces LED sending cards(compatible 4 RJ45 ports sending cards.Cardsareoptional.)
12. 24/7application，highreliabilityandstability
LVP615 series product model description
*LVP615： Extend interface optional 1×CVBS
*LVP615S：Extend interface optional 1×SDI/HD-SDI/3G-SDI
*LVP615D：Extend interface optional 1×VGA/DVI/HDMI
*LVP615U： Extend interface optiona 1×Wi-Fi+2×USB
Specification
|
Inputs |
||||
| Number/type | 2×Video | |||
| 1×YPbPr | ||||
| 2×VGA（VESA） | ||||
| 1×DP（VESA） | ||||
| 1×DVI（VESA） | ||||
| 1×HDMI（VESA/CEA-861） | ||||
| 1×EXT.（extended Video/DVI-I/SDI） | ||||
| Video system | PAL/NTSC | |||
| Composite video amplitude/Impedance | 1V（p_p）/ 75Ω | |||
| YPbPr format | SD/HD（CEA -861） | |||
| YPbPr | Y= 1.0V（p_p）/ 75Ω | |||
| Amplitude/Impedance | Pb= 0.35V（p_p）/ 75Ω | |||
| Pr= 0.35V（p_p）/ 75Ω | ||||
| VGA format | PC（VESA） | ≤2048×1152 _60Hz | ||
| VGA Amplitude/Impedance | R、G、B = 0.7 V（p_p）/ 75Ω | |||
| DP format | DisplayPort1.1（VESA） | |||
| DVI format | PC（VESA） | ≤2304x1152_60Hz | ||
| HDMI1.3（CEA -861） | ||||
| Custom output format | width≤3840 height≤1920 | |||
| HDMI format | PC（VESA） | ≤2304x1152_60Hz | ||
| （HDCP1.3） | HDMI1.3（CEA -861） | ≤1920x1080p_60Hz | ||
| SDI format | SMPTE259M-C SMPTE 292M | 480i_60Hz | ||
| SMPTE 274M/296M | 576i_50Hz | |||
| SMPTE 424M/425M | 720p、1080i、1080p | |||
| Audio | 2.0Vp-p/10KΩ | |||
| Input connectors | Video：BNC | |||
| YPbPr：BNC×3 | ||||
| VGA：15pin D_Sub(female) | ||||
| DP：DisplayPort SMT female 20pin | ||||
| DVI：24+1 DVI_D | ||||
| HDMI：HDMI port A type | ||||
| SDI ：BNC | ||||
| Outputs | ||||
| Number /Type | 1×VGA（RGBHV） | |||
| 2×DVI | ||||
| VGA/DVI resolution | 1024×768_60Hz/75Hz | |||
| 1080×1920_60 Hz | ||||
| 1200×1600_60 Hz | ||||
| 1280×1024_60Hz/75Hz | ||||
| 1366×768_60Hz | ||||
| 1440×900_60Hz | ||||
| 1536×1536_60 Hz | ||||
| 1600×1200_60Hz | ||||
| 1920×1080p_50Hz/60Hz | ||||
| 1920×1200_60 Hz | ||||
| 2048×1152_60Hz | ||||
| 2304×1152_60Hz | ||||
| 2560×816_60Hz | ||||
| Custom output format（maximum output horizontal 3840 pixels or vertical 1920 pixels.） | ||||
| VGA Amplitude/Impedance | R、G、B = 0.7 V（p_p）/ 75Ω | |||
| Output ports | VGA OUT：15pin D_Sub( female) | |||
| DVI OUT1：24+1 DVI_D | ||||
| DVI OUT2：24+1 DVI_D | ||||
| others | ||||
| Control methods | Wireless wifi,IP/LAN,front panel button,infrared remote control, PC software,Ipad, mobile phone terminal and etc.. | |||
| Input voltage | 100-240VAC 50/60Hz | |||
| Maximum power consumption | ≤25W | |||
| Environment temperature | 0-45 ℃ | |||
| Environment humidity | 15-85% | |||

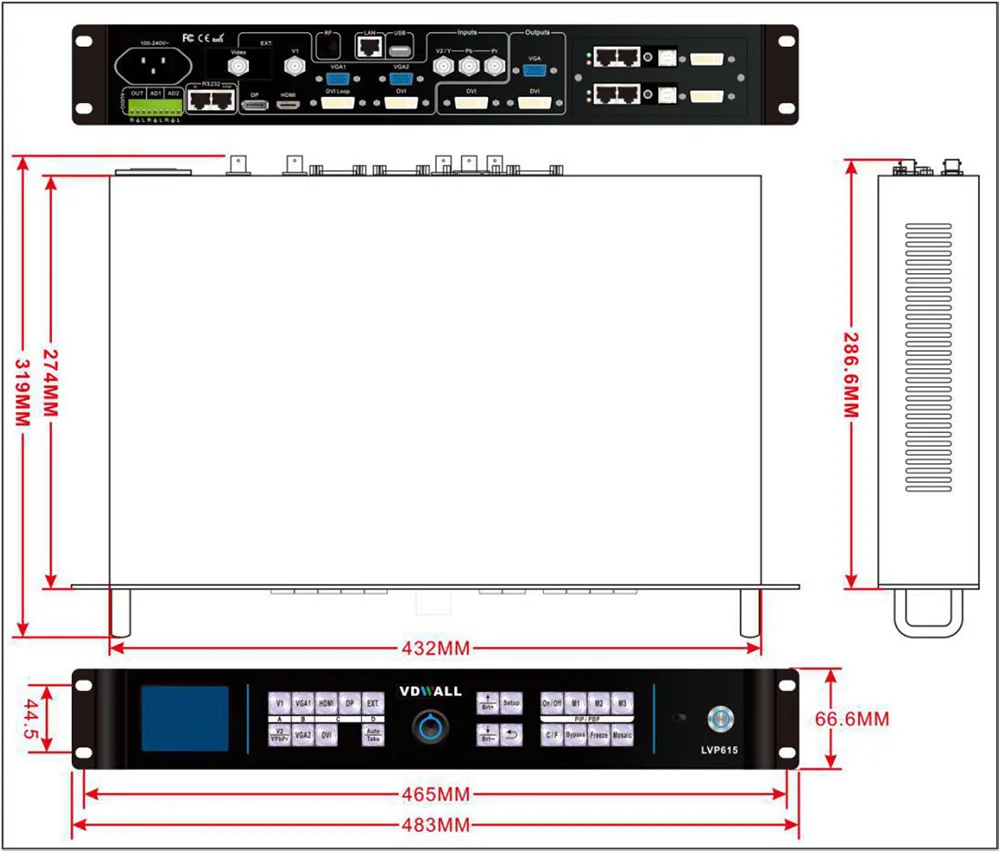

| size（package） | 130mm（H）×350mm（W）×520mm（L） | |||
| Weight | G.W.：5.7 Kg, N.W.：4.0 Kg | |||
