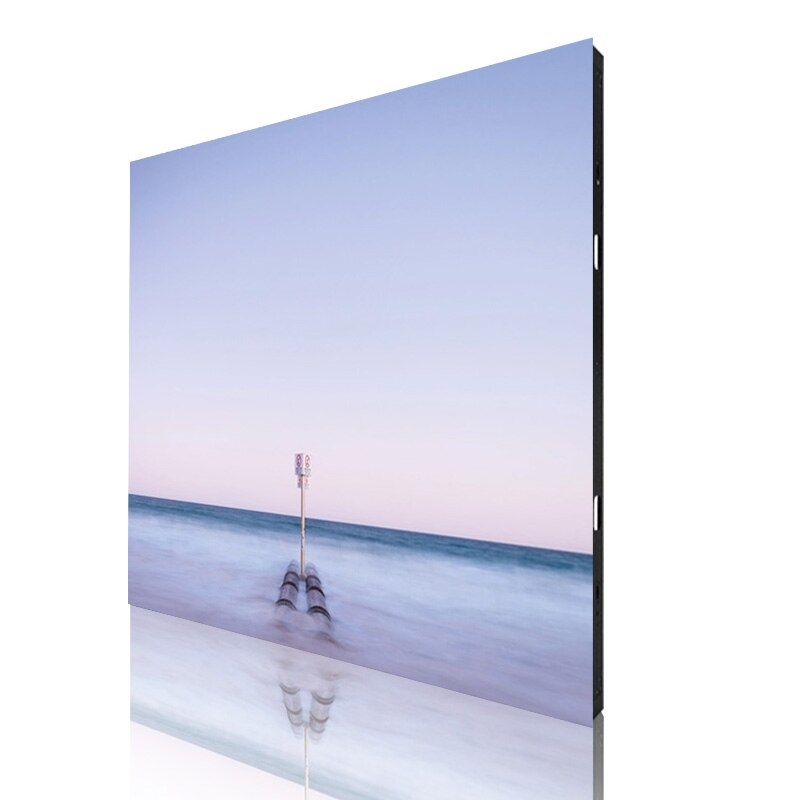

Ultra light profile aluminum cabinet full color tube chip color led wall P3 2K 4K led TV panel
Main Technical Parameters:
|
Pixel Pitch |
3mm |
|
Working Voltage |
AC220V±10%; AC110V±10% |
|
Power Consumption(Max) |
400W/square meter |
|
Power Consumption(Average) |
300W/square meter |
|
LED Brand |
Epistar |
|
Brightness |
and gt;2,000CD/M2 |
|
Pixel Configuration |
1R1G1B |
|
Drive Mode |
1/32scan |
|
Grade Level |
RGB4096 grade/each |
|
Best Viewing Distance |
3M-150M(3ft-492ft) |
|
Viewing angle |
and gt;160Deg(H)/ and gt;140Deg(V) |
|
Driving IC |
SM16127S |
|
Refresh Frequency |
≥ 960HZ/s |
|
Change Frame Frequency |
and gt;=60HZ |
|
Relative Humidity |
10%~90% |
|
Screen Weight |
Steel: ≤ 16Kg/cabinet (35 Lbs) |
|
Input Signal |
RF S-Video RGB RGBHV |
|
Brightness Adjustment |
256 levels of each color (RGB) can be adjusted manually and |
|
LED Module Size |
192mm x 192mm |
|
LED Cabinet Size |
960mm X 960mm |
|
Lifespan |
100,000hours |
Description:
1.) Integrated encapsulation is blessed with higher reliability;
2.) Good color mixture from far or very near distance;
3.) Good color consistency transparent picture;
4.) Good picture uniformity;
5.) Wide viewing angle;
6.) Higher contrast ratio;
7.) The most economical and rational solution for 3 in 1 full color technology.
Detailed images:
Features:
1 . With pure golden wire connection in LED.
2. Grand A row material for module frame and mask.
3. 4 layers PCB and copper plating thickness and gt; 70mil.
4. Ag alloy solder paster to ensure good soldering on PCB.
5. Stainless steel screws when assembly.
6. Die-casting aluminium material cabinet ensures perfect flatness and no gap between cabinets.
7. Disassembly and assembly are quick and easy.
10. The cabinet material is Aluminum profile, Ultra light and high precision.
High performance, let’s see the picture in our test room.
