TNM 5000 supported Language:English / Russian/ Arabic / French / Polski / Turkish / Persian / Chinese
TNM 5000 Programmer Feature:
* 23000+ Supported Devices Flash Memory (Parallel / Nand /Serial) , EPROM , EEPROM , Serial EEPROM , Microcontroller , NVRAM , FRAM , CPLD , PLD , FPGA).
* 48-Pins ZIF Socket with Pin Continuity tester and amp; 10-Pins ISP/JTAG Connector.
* USB 2.0 High Speed ,Program 1 Gbit Nand Flash less than 50 sec , Reading Serial Flash memory with 6 Mbit/Sec Speed.
* Auto detection of most flash Memories/Microcontrollers with Device ID.
* User-friendly software for Windows XP/VISTA/7/8 (32,64 bits). In addition, can support multiple languages (English / Chinese / Arabic / French /FARSI/Russian/Polish……). More languages and amp; Devices can be added by customer request. You Can Download Software and amp; run it in Demo mode to evaluate it.
* Multiple Programming is possible by attaching 2 or more Programmers to one PC.
* Very low cost Main Unit and amp; Low cost adaptors by using one adaptor for all 32/40/48 TSOP flash memories . All 56 pins flash memories by one TSOP56 adaptor.
* Special Abilities like, ALtera U S B B l a s t e r Emulation for Quartus Software, Serial Port Emulation , Vehicle ECU , Immoblizer and amp; Dashboard microcontroller Support.
Parallel Flash Memories: up to 56 pins parallel flash memories are supported by TNM5000. it Supports different kind of packages (PLCC , TSOP1 , TSOP2 ,VSOP and amp; …). All Flashes can be automatically detected by software in case of unreadable device names. By using a single adaptor for all 32-48 pins TSOP flashes , user only need 1 adaptor for over 2000 flash chips.
Nand Flash Memories: TNM5000 has an additional Nand+ software , specially designed for Nand flash memories. Nand+ Software has one of the most complete list of Nand flash Memories with algorithms for correction of bad data in MLC Nand Flashes. TNM5000 is one of the fastest Nand Programmers in the world with Read and amp; Write Speed up to 8 MegaByte per Second. All Nand Flashes can be automatically detected by software in case of unreadable or remarked device names.
Serial Flash Memories: All 8-16 Pins Serial SPI flash memories are supported by TNM5000. All SPI flash Memories can be detected automatically by software in case of unreadable device names. It reads and amp; programs SPi flashes with maximum safe speed on ZIF (6-7 Mbit/second) . Also it Unprotects the write protected flashes before writing data to it.
Microcontrollers:
Microchip: One of the most complete device list for microchip PIC microcontrollers including all PIC12F /PIC12C /PIC16C / PIC16F / PIC18F / DPIC33F / J and amp; K Series. Devices up to 40 Pins can be programmed on ZIF , All PICs can be detected automatically and amp; programmed by ISP cable.
Others: ST, SST, Philips (NXP) , Motorola , Syncmos, Silicon Lab , ICSI , Infineon , Intel , Winbond and amp; …
Automotive MCUs: Supporting of ST10F and amp; TMS370 Series by ISP cable for many BOSCH/VALEO/SAGEM ECUs (complete ST10F support of XPROG-m programmer device list). supporting of siemense and amp; infineon SAK-C167 connected to 44 or 48 pins flash (Siemense/BOSCH/SAGEM S2000 ECU) like HSE FlasHit Programmer. Supporting NEC and amp; Motorola Devices for Dashboards.
PLD/CPLD/FPGA: Supporting All ALTERA JTAG Devices by emulation of USB B l a s t e r Programmer in Quartus Software. Supporting of Xilinx CPLD/FPGA with jed file. Fast Xilinx FPGA configuration with bit file. Supporting of GAL/PALCE Devices with special option for PALCE unlocking.
Software: With multiple language support (English / Chinese / Arabic / French /FARSI). More languages and amp; Devices can be added by customer request. You Can Download Software and amp; run it in Demo mode to evaluate it.

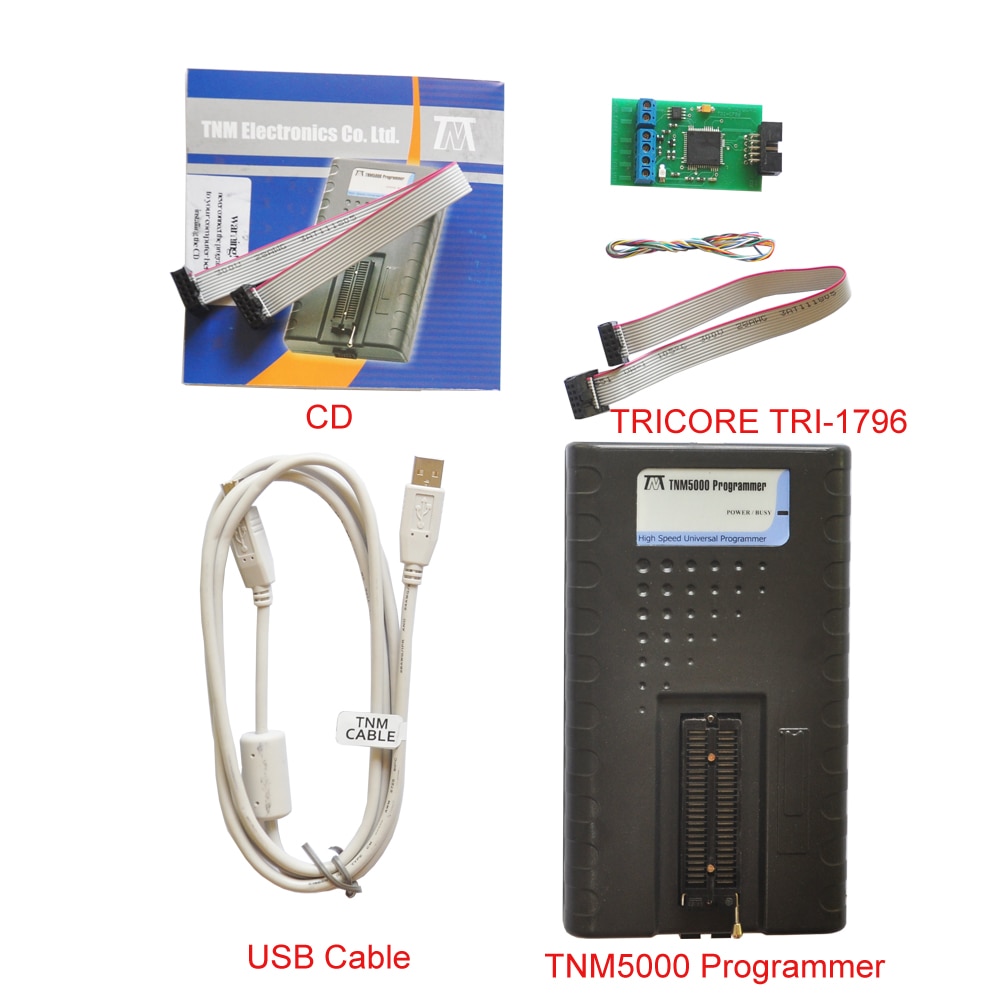

1PC TNM5000 Programmer
1PC USB Cable (for both power supply and data communication)
1PC Installation CD
1PC ISP cable
1PC TRICORE TRI-1796 socket
If you need TNM5000+15pcs adapters,please click :
