Hot sale:







Support all notebook kbc ec controller programmer and our TNM5000 device definetely A+++++





TNM 5000 supported  Language:English / Russian/ Arabic / French / Polski / Turkish / Persian / Chinese





TNM5000 Selling Points:
Modern super fast programmer for general use and vehicle electronic part repair
1.23000 device list VIA cable and 48 pin zif socket
2.Fast programming of all EPROM and FLASH memories(8/16/32/40/44/48/56 pins),Nand Chips.
3.Programming of general and custom microcontrollers(motorolla/infinion/…)
4.Programming of GAL/FPGA/CPLD,SRAM/TTL/CMOS tester.
5.PIN detect and detect of ic,for example in pin detect if one or more pin in chip no conect at ZIF soket TNM5000 will inform you
6. no need power supply





TNM 5000 Programmer Feature:

*  23000+  Supported Devices Flash Memory (Parallel / Nand /Serial) , EPROM , EEPROM , Serial EEPROM , Microcontroller , NVRAM , FRAM , CPLD , PLD , FPGA).

*  48-Pins  ZIF Socket with Pin Continuity tester and amp; 10-Pins ISP/JTAG Connector.

* USB 2.0  High Speed  ,Program 1 Gbit Nand Flash less than 50 sec , Reading Serial Flash memory with 6 Mbit/Sec Speed.

*  Auto detection  of most flash Memories/Microcontrollers with Device ID.

* User-friendly software for  Windows XP/VISTA/7/8 (32,64 bits). In addition, can support  multiple languages  (English / Chinese / Arabic / French /FARSI/Russian/Polish……). More languages and amp; Devices can be added by customer request. You Can Download Software and amp; run it in Demo mode to evaluate it.

*  Multiple Programming  is possible by attaching 2 or more Programmers to one PC.

* Very low cost Main Unit and amp; Low cost adaptors by using one adaptor for all 32/40/48 TSOP flash memories . All 56 pins flash memories by one TSOP56 adaptor.

* Special Abilities like, ALtera U S B B l a s t e r Emulation for Quartus Software, Serial Port Emulation , Vehicle ECU , Immoblizer and amp; Dashboard microcontroller Support.


TNM5000 Programmer  is very fast , Low cost , High performance Universal Programmer , specially designed for supporting Flash memories , Nand flashes , Serial EEPROMS , Microcontrollers and amp; Automotive ECU , Dashboard parts.

The Heart of TNM5000 is a 500.0000 Gate FPGA with a designed CPU core with 96MHz Clock for fast programming of chips.


TNM5000  Can support a wide range of chips as below:


Parallel Flash Memories:  up to 56 pins parallel flash memories are supported by TNM5000. it Supports different kind of packages (PLCC , TSOP1 , TSOP2 ,VSOP   and amp; …). All Flashes can be automatically detected by software in case of unreadable device names. By using a single adaptor for all 32-48 pins TSOP flashes , user only need 1 adaptor for over 2000 flash chips.



Nand Flash Memories:  TNM5000 has an additional Nand+ software , specially designed for Nand flash memories. Nand+ Software has one of the most complete list of Nand flash Memories with algorithms for correction of bad data in MLC Nand Flashes. TNM5000 is one of the fastest Nand Programmers in the world with Read and amp; Write Speed up to 8 MegaByte per Second. All Nand Flashes can be automatically detected by software in case of unreadable or remarked device names.



Serial Flash Memories:  All 8-16 Pins Serial SPI flash memories are supported by TNM5000. All SPI flash Memories can be detected automatically by software in case of unreadable device names. It reads and amp; programs SPi flashes with maximum safe speed on ZIF (6-7 Mbit/second)   .   Also it Unprotects   the write protected flashes before writing data to it.



Microcontrollers:


ATMEL: All AVR 8 bits chips (ATMEGA/ATTINY/AT90S)  are supported on ZIF Scocket and amp; by ISP cable. High Voltage Parallel on ZIF Programming of AVR up to 64 pins is supported. newly introduced ATXMEGA Series are supported by both PDI and amp; JTAG Method. Old C51 series and amp; new single cycle C51 series are completely supported. All the above series can be detected automatically by TNM5000. ARM7 programming by JTAG is supported.


Microchip: One of the most complete device list for microchip PIC microcontrollers including all PIC12F /PIC12C /PIC16C / PIC16F / PIC18F / DPIC33F / J and amp; K Series. Devices up to 40 Pins can be programmed on ZIF , All PICs can be detected automatically and amp; programmed by ISP cable.



Others:   ST, SST, Philips (NXP) , Motorola , Syncmos, Silicon Lab , ICSI , Infineon , Intel , Winbond and amp; …



Automotive MCUs:  Supporting of ST10F and amp; TMS370 Series by ISP cable for many BOSCH/VALEO/SAGEM   ECUs (complete ST10F support of  XPROG-m  programmer device list). supporting of siemense and amp; infineon SAK-C167 connected to 44 or 48 pins flash (Siemense/BOSCH/SAGEM S2000 ECU) like  HSE FlasHit  Programmer. Supporting NEC and amp; Motorola Devices for Dashboards.



PLD/CPLD/FPGA:      Supporting All ALTERA JTAG Devices by emulation of  USB B  l  a  s  t  e  r  Programmer in Quartus Software. Supporting of Xilinx CPLD/FPGA with jed file. Fast Xilinx FPGA configuration with bit file. Supporting of GAL/PALCE Devices with special option for PALCE  unlocking.



Software:  With multiple language support (English / Chinese / Arabic / French /FARSI). More languages and amp; Devices   can be added by customer request. You Can Download Software and amp; run it in Demo mode to evaluate it.

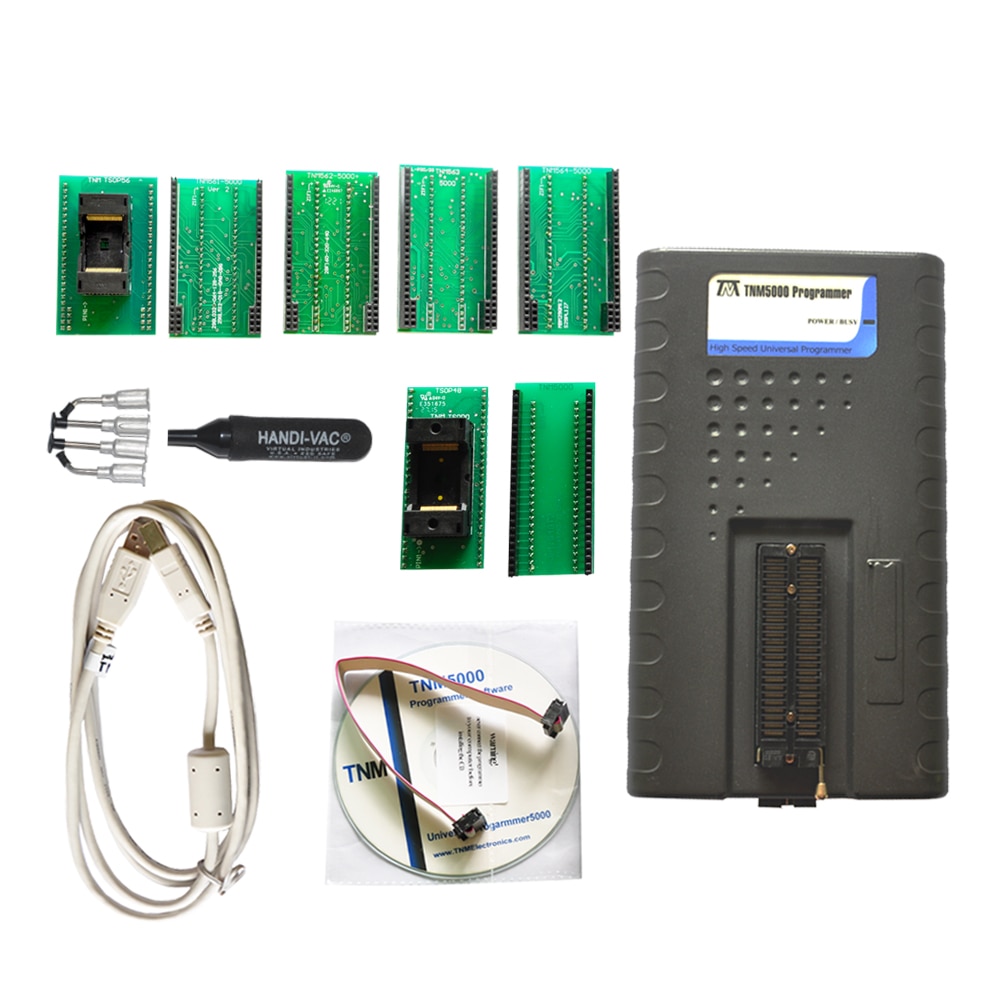

1PC TNM5000 Programmer
1PC USB Cable (for both power supply and data communication)
1PC Installation CD
1PC ISP cable
1PC Original TNM TSOP48 adapter (ADP548T2)
One complete TSOP56 adapters set (ADP556T2)
1PC HANDI-VAC Vacuum Suction pen + 4 Suction Headers (gift)


(Only original TNM TSOP48 adapter is for all TSOP48/40/32 chips,other brand TSOP48 adapter can not work for 32pins or 40 pins,only can work for part of 48 pins.)



If you want    adapter together,please make order as below link,we can offer you special price 45USD.
