TEEHO P8 outdoor led display wall 1024x1024mm 1/4 scan Epistar led RGB full color led video panel led signboard videowall module

TEEHO P8 outdoor led display wall 1024x1024mm 1/4 scan Epistar led RGB full color led video panel led signboard videowall module

TEEHO P8 outdoor led display wall 1024x1024mm 1/4 scan Epistar led RGB full color led video panel led signboard videowall module



Specification



 LED Cabinet


 Led module

 P8

Pixel dot

 32*16    pixel

Module demension

 256*128mm

Size of the led display

 1024mm* 1024mm * 100mm   (40”  *  40” * 4 ”)

Control card

 one cabinet one receiving card

Power supply

 CL 200W 5V 40A with fan

 Working  Voltage

 220V +_15% ,   60Hz

 MTBF

 5000  hours

 Waterproof

 IP65

 Malfunction  Dot  Rate

 less  than  0.0002

 Working  Temperature

 -35°C~65°C

 Humidity

 10%~99%

Display  Function

 video, animation, graphics, message, clock etc.

 Viewing angle

 100/ 55 degree

Life time

 more than 10,000 hours

Uasage

 for store, stadium, hospital, supermarket, securities firms,  bank,  airports, railways, station etc. public places to advertise or notice.



Features



  1. Rainbow  data cables, good quality, better performance,
  2. Power supply with fan, good heat dissipation,
  3. Aviation plug connectioners, easy to connect cabinets. no need more long data cables,more simply and convenient,
  4. Outdoor waterproof iron cabinet, can  be in rain outdoor,
  5. Linsn software,easy operation,
  6. Carefull packaging,protecting cabinets, no damage during shipping.
  7. This cabinet is outdoor waterproof cabinet, there are also front-open cabinet, die-cast aluminum rental cabinets. Any question on the cabinets pls let us know. We will reply you 24 hours.

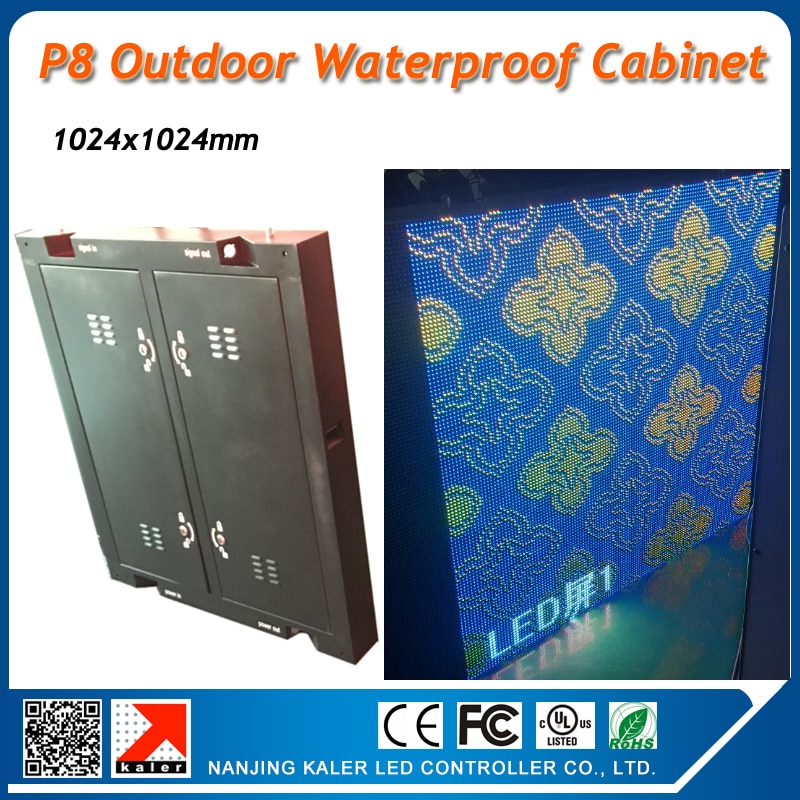

Pictures

































TEEHO P8 outdoor led display wall 1024x1024mm 1/4 scan Epistar led RGB full color led video panel led signboard videowall module
