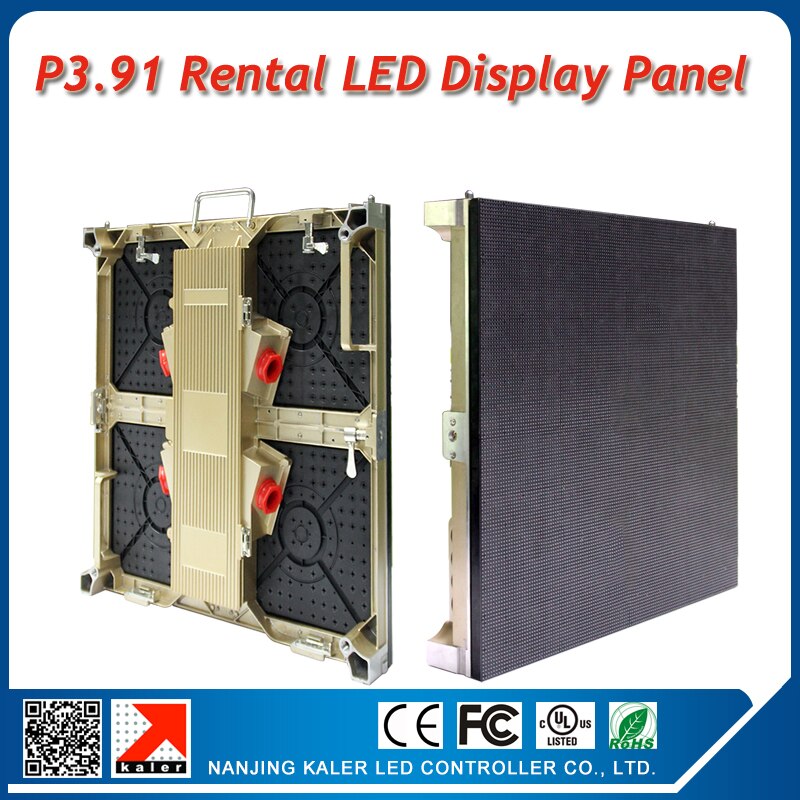

TEEHO led stage screen 500x500m P3.91 led panel led video wall also provide P1.9 p2.5 p3 p4 p4.81 p5 p6 p8 p10 led display wall

TEEHO led stage screen 500x500m P3.91 led panel led video wall also provide P1.9 p2.5 p3 p4 p4.81 p5 p6 p8 p10 led display wall

TEEHO led stage screen 500x500m P3.91 led panel led video wall also provide P1.9 p2.5 p3 p4 p4.81 p5 p6 p8 p10 led display wall panel





Module Specification:
Pixel Pitch 3.9mm
Module Size 250 x 250 x 16mm
LED Encapsulation SMD2121, 3IN1
Module Power Consumption ≤23W
Cabinet Specification:
Cabinet Size 500mm x 500mm x 75mm
Cabinet Resolution 128dots x 128dots =16,384dots
Pixel Density 65,536 dots/sqm
Cabinet Material Die-cast Aluminum
Cabinet Weight 8.5Kg
Brightness 1400 cd/sqm
Optimal Viewing Distance ≥5m
Driving Method 1/16 scan, constant current
Max. Power Consumption 300 W/sqm
Ave. Power Consumption 210 W/sqm
Input Voltage 110~220VAC±10%
Life span ≥100,000 hours( 50% brightness)
