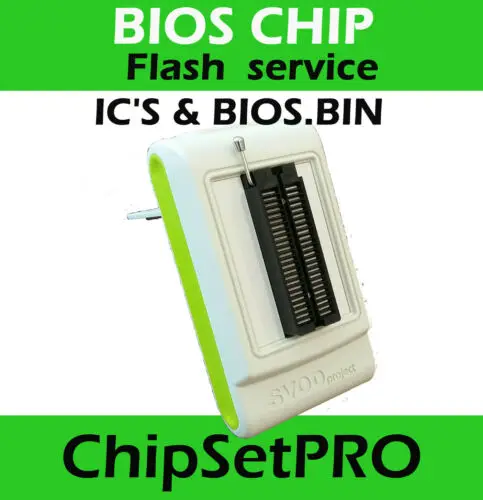

SVOD V3 programmer is a universal programmer for various microcircuits.
As you know you can program different kinds of chips such as: SPI, I2C, ONE WIRE, NAND, NAND SPI, NOR, EMMC, JTAG, UART, ENE, MEC, ITE, NUVOTON, parallel synchronous and asynchronous protocols. Automatic detection of “bad contact” when connecting chips.
Supported:
KB9010/KB9012/KB9016/KB9022
NPCE288N/NPCE388N
ITE8386/8580/8585/8586/8587/8985/8987
MEC1609/1619/1632/1633/1641/1650/1651/1653/5035/5045/5055/5045/5075/5085
EPF011/021/035/036/037
protocol: JEDEC ID (spi25 flash, nand have 5 byte ID, spi NAND have 512 byte ID, nor48,40 have 3 byte id, emmc have 512 byte id, new spi25 have sfdp with 128 byte info).
Specifications:
– port of connection to the computer: usb 2.0 high speed,
– connection of microcircuits: zif 48,
– number of input /output ports: 48,
– power supply voltage: 1.2V / 1.8V / 2.5V / 3.3V
You can buy a brand new programmer / Tested 100% .

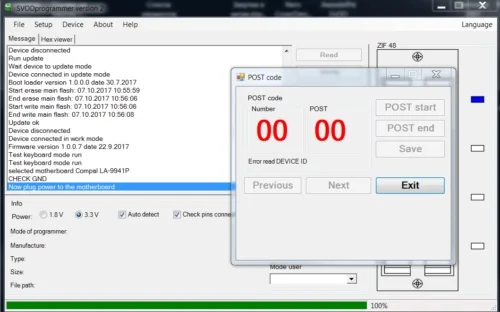

The mode of displaying POST codes of the laptop motherboard is implemented. Choose the software in the online base of your motherboard, download, select it in the choice of motherboard, connect the motherboard with a loop to the keyboard connector, and read the post codes by running the software in read mode of POST codes.

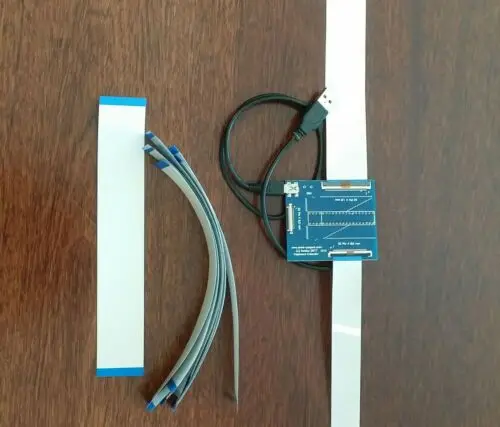

1 pcs Programmer SVOD Ver. 3
1 pcs USB Connection cable

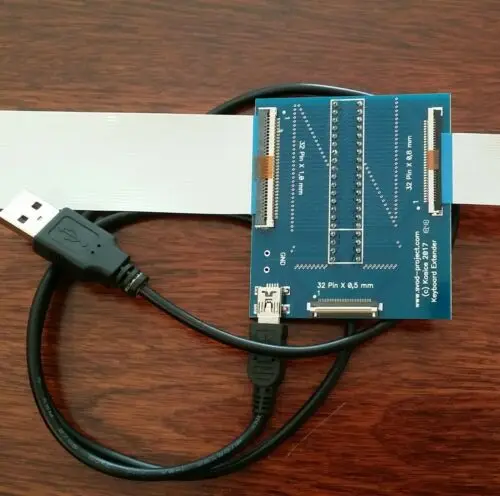

1 pcs Extended board of ports for keyboard module
Flex cables: 34pin, 32pin, 30pin, 26pin (all cables what you see in picture).

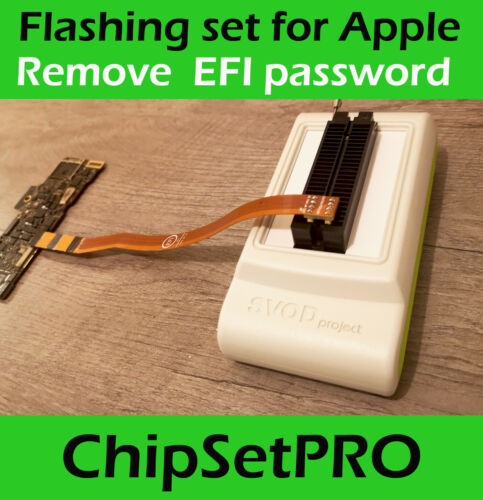

1 pcs SPI ROM Cable for Macbook (JTAG J6100 + J6100 + J5100) + schematic
The package doesn’t includes CD,but we will offer you software download link,tutorial video and PDF files.
