Note: The Development Board is welded by default to STM32F429. If you need STM32F746 and STM32F767, it can be customized.

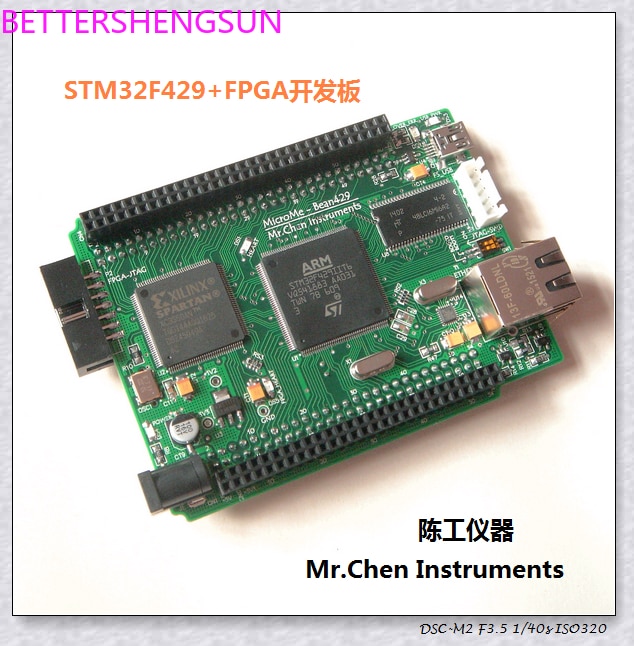

STM32F429 FPGA core plate introduction:

• Four-layer plate pcb design size: x9.97cm
• Core plate MCU uses ST Company chip slim and XILINX spartan3 chip
• On-board 10m/100m Ethernet interface, USB2.0 interface, SD card interface, 12-bit dac
• External expansion of SDRAM
• Dual-group pin header female header leads to unused pins for easy expansion
• Supporting the ADC module of our store to form a data acquisition system
• Provide pdf schematic diagram and instruction manual
• Provide on-board hardware test source code

• STM32F429 FPGA(Bean429) development board 1 piece
• 1 power adapter (5V 1A)
• mini USB data cable 1
• 1 Cross network cable
• JTAG switchboard 1 set
• One DVD disc (data)
