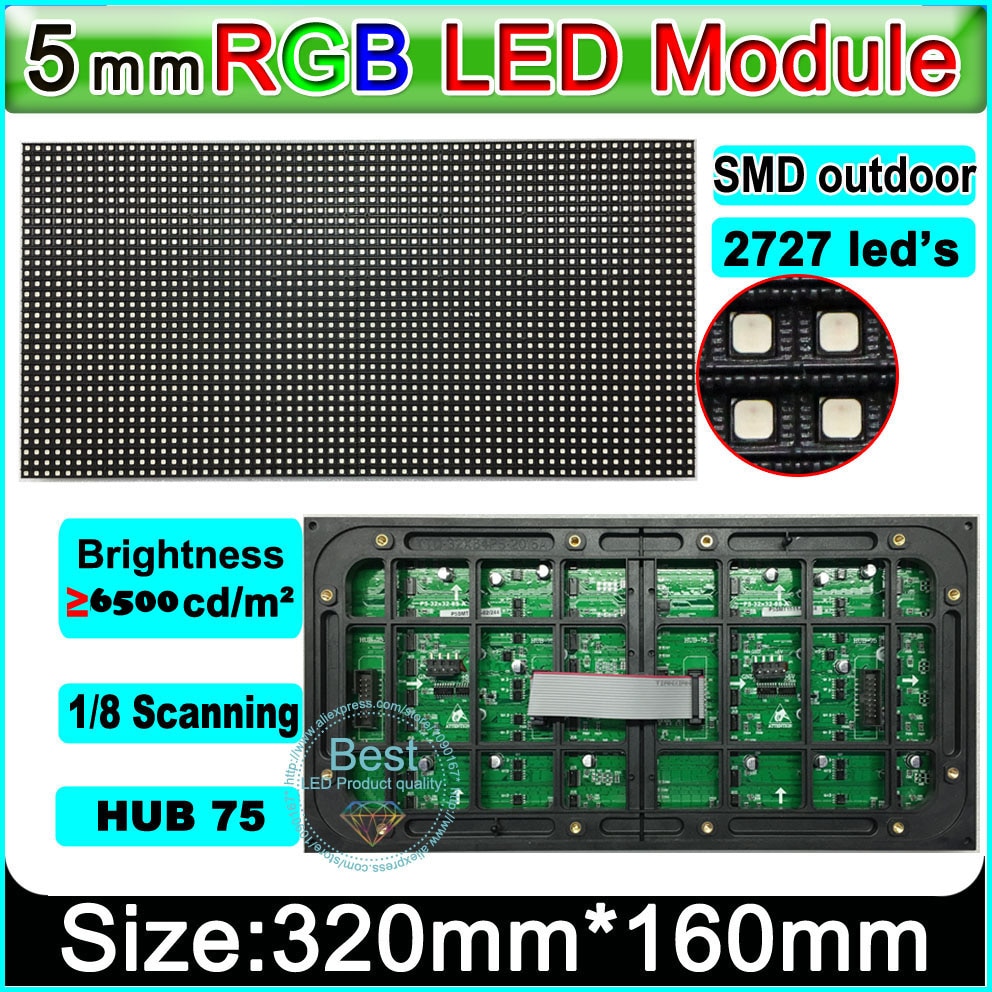

SMD 2727 P5 outdoor Video wall led module,high brightness 5000 nits, 1/8 scan,64*32 P, full color outdoor SMD P5 LED Panel



Standard configuration  power cable and 16PIN cable

Note: To ensure the quality of the LED Module, this product is a custom product, custom time is about 10 working days.  If you can not accept, please buy  other in stock  module.

P5mm
◆  Technical  Specification  of  P5mm:
Pixel  configuration SMD2727  3  in  1
LEDs  configuration Red:wave  length:  615~630nm;700-1000mcd
Green:wave  length:  515~530nm;2100-2300mcd
Blue:wave  length:  465~475nm;450-600mcd
Pixel  pitch(mm) 5
Pixel  density(dots/㎡) 40000
Calibrated  brightness(cd/sqm,nit)   and gt;5000  nits(adjustable)
Calibrated  brightness  proportion  ratio R:  G:  B  =  30%:60%:10%(adjustable)
Color  temperature 3,500°  —  9,500°  K(adjustable)
Contrast  ratio 4,000:1(adjustable)
Brightness  adjustment(dimming) 100  grade  auto/manual-adjustment
View  angle(degree)(50%  brightness)   Horizontal:  120°  (60°  off  center);  Vertical:  70°  (+25°/-45°  off  center)
Readability  viewing  angle Horizontal:  150°  (75°  off  center);  Vertical:  90°  (+35°/-55°  off  center)
Color  capability 4.4  trillion
Refresh  rate(Hz) and gt;1200  Hz(adjustable)
Frame  frequency(Hz) and gt;60  Hz
Interface  port 16 Pin -HUB 75
Input  signal VGA,  Video,  AVI,  MOV,  MPG,  DAT,  VOB  etc.
Protection  grade IP65  front  side/IP54  backside
LED  Drive   Constant-current  drive
Lifetime(hours)(50%  brightness)   100,000  hours
Signal  transmission  direction Horizontal
Operating  temperature(Celsius  degree) -15~+55”
Storage  temperature(Celsius  degree) -30~+65′
Operation  humidity(RH) 10-95%
Operation  humidity(RH) 10-99%
Servicing Front  and  back  serving  optional
Control  mode Synchronous   and amp;  asynchronous  available
Communication  options Wire  Ethernet,  Fiber  Ethernet,RF  wireless,GPRS
Power DC  5V
Maximum  power  consumption(W/SQM) 900
Average  power  consumption(W/SQM) 360
Screen  operation  mode(scan/static)    1/8
Module  configuration(Pixels  quantities  of  the  module) Length 64
Height 32
Module  dimensions(mm) Length 320
Height 160











Complete the complete LED display, the need for the following accessories.
