SALE 12% OFF
Product Description:

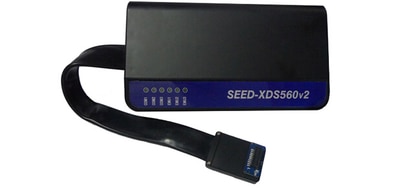

Hardware features of SEED-XDS560v2PLUS simulator:
Supporting traditional JTAG protocol IEEE 1149.1 and IEEE 1149.7
Supporting High Speed USB 2.0 and 10/100Mbit Ethernet Host Interface
System Trace
Support TI C2000/C5000/C6000/ARM/ARM Cortex/
Sitara/OMAP/DaVinci series
Support multi-CPU debugging
Single machine MAC address
IP address configurable
Programmable TCLK up to 64MHz
MIPI standard 60-pin HSPT head
JTAG Interface Supporting + 1.2V to + 4.1V
High Speed Anti-jamming Simulated Cable
Software features of SEED-XDS560v2PLUS simulator:
Support CCS version 4.1.3 and later
Support WinXP/Win7/Win8/Win8.1/Win10 Operating System
Support debugging in LINUX environment (CCSV5 and above)
SEED-XDS560v2PLUS simulator accessories:
XDS560v2PLUS Simulator
JTAG pin converter: MIPI60-TI14, MIPI60-TI20
USB cable
USB power supply
