Product Description:
Performance Indicators of SEED-XDS560PLUS Real-time Debugging Platform
High-speed RTDX data exchange capacity up to 2M bytes per second
1. When the target DSP runs, the variables can be observed in real time.
2. Real-time data exchange
3. Occupy only a small amount of DSP resources
4. conditions for implementation:
(1) DSP with high-speed JTAG
(2) XDS560
Real-time event triggering to support real-time breakpoints
1. Setting hardware breakpoints and observation points
2. Event and timing management
3. Measure the timing of debugging accurately
Fast code download speed up to 0.5M bytes per second
Adaptive simulation speed
1. The internal phase-locked loop can adjust the simulation clock according to the need, ranging from 500K to 35M.
Compatible with all functions of XDS510
Characteristics of SEED-XDS560PLUS Real-time Debugging Platform
USB2.0 standard interface
Low power design without external power supply
High-speed anti-jamming simulation cable with strong anti-jamming capability
JTAG simulation cable and simulation box integrated design, stable and reliable
Support TI LF24XX/F28XX/C5000/C6000/C64X+/OMAP platform/Davinci/Sitara series simulation
Support multi-CPU debugging
Support Win2K/WinXP/Win7/Win8/Win8.1/Win10 Operating System
Adaptive simulation voltage, 0.5V-5V
High-speed anti-jamming simulation cable with strong anti-jamming capability
Support CCS 3.1, CCS 3.3, CCS 4 and above
SEED-XDS560PLUS compared with similar products
New Design Concept
Fully Independent Intellectual Property Rights
Stronger DSP co-processing capability
Higher simulation and debugging performance
The design is more compact, portable and convenient.
Low power consumption, no need for external power supply
Product accessories

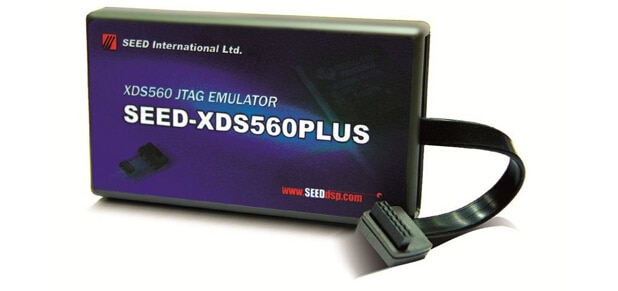

SEED-XDS560PLUS simulation box
USB2.0 cable
JTAG High Speed Anti-jamming Simulated Cable
SEED-XDS560 PLUS Simulator Drive CD
