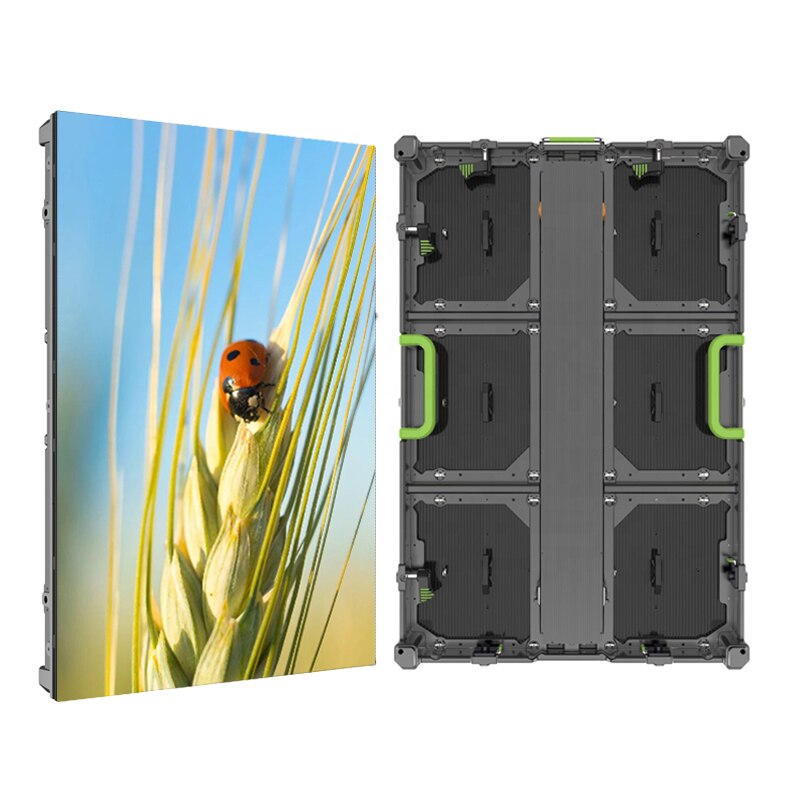

P5 P6 p8 full color rgb matrix out door fixed installation led screen outdoor smd color digital advertisement led display

P5 P6 p8 full color rgb matrix out door fixed installation led screen outdoor smd color digital advertisement led display

P5 P6 p8 full color rgb matrix out door fixed installation led screen outdoor smd color digital advertisement led display

Parameters:

Technical parameters

Pixel(mm)

5.925

8

Pixel  Density (dot/m2)

29476

15625

Pixel Configuration

1R1G1B

1R1G1B

Module Size (mm)

320*320

320*320

Module Resolution

54*54

40*40

Scan

1/9

1/5

Brightness

5500

6000

Gray  Scale

14bit

14bit

Refresh  Rate     (Hz)

≥1920

≥1920

Driving Mode

Constant Driving

Constant Driving

Horizontal Degree

140

140

Vertical Degree

120

120

Max Power Consumption (W/m2)

600W

680W

Ave Power Consumption (W/m2)

180W

230W

Cabinet Size(mm)

640*960

640*960

Display Color

and gt;16.7

and gt;16.7

Working Voltage(V)

AC100V-240V/±13%

AC100V-240V/±14%

Refresh Rate (Hz)

50/60Hz

50/60Hz

Protection   Degree

IP65

IP65

Working environment

Outdoor

Outdoor

Lifespan

100000

100000

Features:

1.Save Space-70mm die-cast aluminum box design
2.Easy Maintenance-Supports complete pre-maintenance of modules and power boxes
3.High Utilization-Meet the needs of different application scenarios
4.High quality-IP65,excellent protection,stable operation.
5.High brightness,low consumption, extend lifetime.

IP65 front Water proof

High protection grade of IP65 guarantees,Durabilit

320*320mm led panel

Module front maintenance,easy access and save space

Low consumption ,extend lifetime
