Item |
P5 |
Chip |
Epstar + Silan chip |
Chip size |
Red 9 mil, Green 12. Blue 12mil |
Light type |
SMD |
Pixel Pitch |
5mm |
Module Size |
320mmX160mm |
Module Resolution |
64 X 32 (dots) |
Density of pixel |
40000dots/m2 |
Pixel configuration |
1R1G1B |
Red wavelength |
625±2nm |
Green wavelength |
525±2nm |
Blue wavelength |
470±2nm |
Colors |
16777216 |
Best viewing distance |
≥4m |
viewing angle |
120°/90° |
Maximum power consumption |
20W |
Brightness |
6000cd/m2 |
Gray scale |
14bits per color |
Color temperature |
6500k |
Control method |
Synchronization or Asynchronization |
Driving method |
1/8 scanning |
Frame frequency |
60Hz |
Refresh frequency |
≥600Hz |
Working Voltage |
DC5V |
IP grade |
IP67 |
MTBF |
More than 8000hours |
Life Span |
80,000hours |
|
|
|

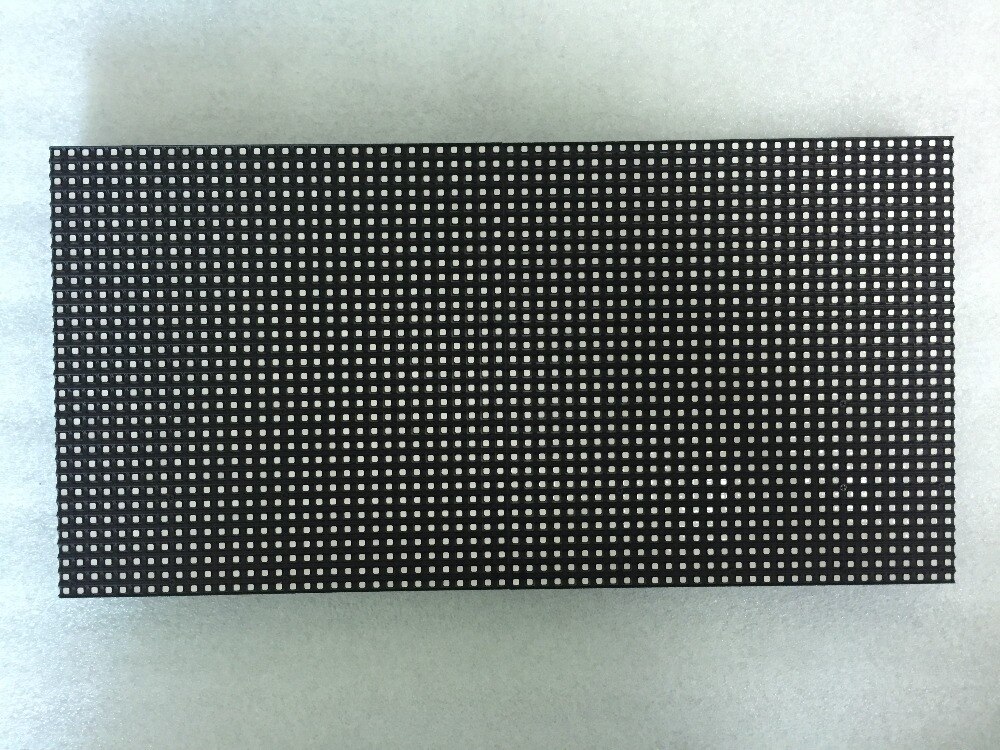

Seamless splicing Module
1. With professional technical and development team, we are a direct Factory specialized in led display control card, led display module, power for led display, led display, and other led display accessories etc.
2. With more than 10 years’ experience, modern production and test equipment,perfect enterprise management system,high quality research and management team, high quality led display controller, all above make us become popular supplier.
3. With our high quality and service our products have been exported to various countries and regions in Southeast Asia, Australia, Europe and America etc.
We also supply Flight Case
if you need pls contact us.
Shipping by Express
1. We Ship to Worldwide.
2. Items are shipped from China via EMS, UPS, FedEx, DHL, TNT and airmail (with tracking number) etc.
3. Delivery time depends on the courier company ,the destinations, the local customs and other factors; We hope it arrive on time, but this international delivery shipping time will be highly depends on the courier company and local customs, hope you can understand if there are any shipping delay caused by above reasons.
Or by Sea
If you want to deliver the led display board by sea pls tell us, we will quote you the ocean freight.
